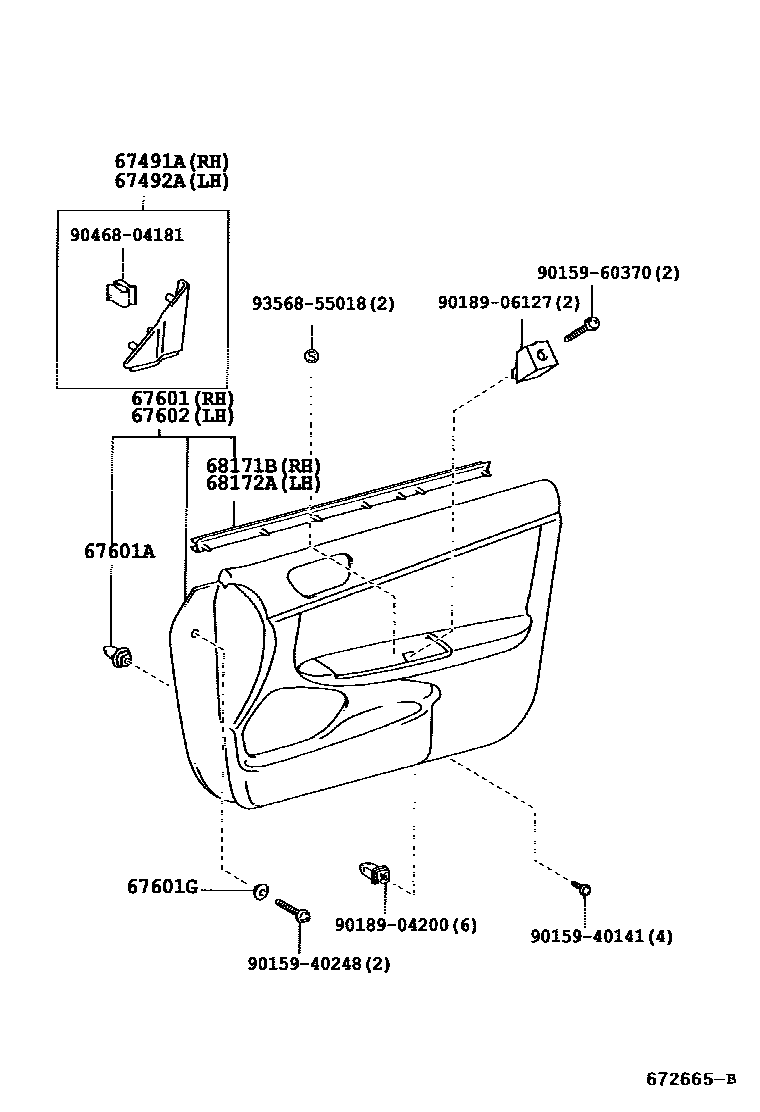

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-06030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-06030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-06430-B1iACV31..20J200203-200211

DK.CHARCOAL,TRIM1#

sub67610-06431

main67610-06430-E1iACV31..20J200203-200211

SANDAL WOOD,TRIM4#

sub67610-06431

main67610-06431-B1iACV31..20J200211-200404

DK.CHARCOAL,TRIM1#

main67610-06431-E1iACV31..20J200211-200309

SANDAL WOOD,TRIM4#

main67610-06440-B1iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200211

DK.CHARCOAL,TRIM1#

sub67610-06441

main67610-06440-E1iACV31,MCV30..(20E,20G,30G,30V)..(TAIW,VN)200203-200211

SANDAL WOOD,TRIM4#

sub67610-06441

main67610-06441-B1iACV31,MCV30..(20E,20G,30G,30V)..TAIW200211-200404

DK.CHARCOAL,TRIM1#

main67610-06441-E1iACV31,MCV30..(20E,20G,30G,30V)..(TAIW,VN)..4FC200211-200407

SANDAL WOOD,TRIM4#

main67610-06450-E1iACV31..TH200203-200211

SANDAL WOOD,TRIM4#

sub67610-06451

main67610-06451-E1iACV31..TH200211-200405

SANDAL WOOD,TRIM4#

sub67610-06600

main67610-06460-E1iACV30..TH200203-200211

SANDAL WOOD,TRIM4#

sub67610-06461

main67610-06461-E1iACV30..TH200211-200405

SANDAL WOOD,TRIM4#

main67610-06490-E1iACV3#..MA200206-200211

SANDAL WOOD,TRIM4#

sub67610-06491

main67610-06491-E1iACV3#..MA200211-200407

SANDAL WOOD,TRIM4#

main67610-06500-E1iACV30..IDN200205-200211

SANDAL WOOD,TRIM4#

sub67610-06501

main67610-06501-E1iACV30..IDN200211-200405

SANDAL WOOD,TRIM4#

main67610-06510-E1iACV3#..PHL,VN200206-200211

SANDAL WOOD,TRIM4#

sub67610-06511

main67610-06511-E1iACV3#..PHL,VN200211-200407

SANDAL WOOD,TRIM4#

main67610-06530-E0iMCV30..IDN200205-200211

SANDAL WOOD,TRIM4#

sub67610-06531

main67610-06531-E0iMCV30..IDN200211-200405

SANDAL WOOD,TRIM4#

main67610-06541-E1iACV31..MA200407-200608

SANDAL WOOD,TRIM0#

main67610-06551-E1iACV30..MA200407-200608

SANDAL WOOD,TRIM0#

main67610-06560-E0iACV30..LHD..(24E,24G)200407-200611

IVORY,TRIM0#

main67610-06570-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

LEATHER,BLACK,TRIM2#

sub67610-06580

main67610-06570-E0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

LEATHER,IVORY,TRIM0#

sub67610-06580

main67610-06570-E0iACV30..24V..PHL200407-200608

IVORY,TRIM0#

sub67610-06580

main67610-06580-C0iMCV30..TAIW200404-200605

LEATHER & W(INSIDE HANDLE ILLUMINATION LAMP),BLACK,TRIM2#

main67610-06580-E0iMCV30..PHL,VN200407-200611

IVORY,TRIM0#

main67610-06580-E0iMCV30..TAIW200404-200605

LEATHER & W(INSIDE HANDLE ILLUMINATION LAMP),IVORY,TRIM0#

main67610-06600-E0iACV31..TH;ACV30..TH..5F200405-200608

FABRIC,IVORY,TRIM0#

main67610-06610-E0iACV3#,MCV30..(20E,24G,30V)..TH..4FC200405-200608

LEATHER,IVORY,TRIM0#

sub67610-06461

main67610-06620-E0iACV30..TH..4FC200405-200608

LEATHER & W(INSIDE HANDLE ILLUMINATION LAMP),IVORY,TRIM0#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main90467-10161iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200611

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01746-22iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

sub90950-01746

main90950-01746-B6iACV31,MCV30..TAIW200203-200404

DK.CHARCOAL,TRIM1#

sub90950-01746

main90950-01746-E5iACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC;ACV3#..(20E,20G,24G,24Q,24V)..4FC200203-200407

SANDAL WOOD,TRIM4#

sub90950-01746

main90950-01746-E5iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

SANDAL WOOD,TRIM0#

sub90950-01746

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-06270-B1iACV31..20J200203-200211

DK.CHARCOAL,TRIM1#

sub67620-06271

main67620-06270-E1iACV31..20J200203-200211

SANDAL WOOD,TRIM4#

sub67620-06271

main67620-06271-B1iACV31..20J200211-200404

DK.CHARCOAL,TRIM1#

main67620-06271-E1iACV31..20J200211-200309

SANDAL WOOD,TRIM4#

main67620-06280-B1iACV31,MCV30..(20E,20G,30G,30V)..TAIW200203-200211

DK.CHARCOAL,TRIM1#

sub67620-06281

main67620-06280-E1iACV31,MCV30..(20E,20G,30G,30V)..(TAIW,VN)200203-200211

SANDAL WOOD,TRIM4#

sub67620-06281

main67620-06281-B1iACV31,MCV30..(20E,20G,30G,30V)..TAIW200211-200404

DK.CHARCOAL,TRIM1#

main67620-06281-E1iACV31,MCV30..(20E,20G,30G,30V)..(TAIW,VN)..4FC200211-200407

SANDAL WOOD,TRIM4#

main67620-06340-E1iACV31..TH200203-200211

SANDAL WOOD,TRIM4#

sub67620-06341

main67620-06341-E1iACV31..TH200211-200405

SANDAL WOOD,TRIM4#

sub67620-06510

main67620-06350-E1iACV30..TH200203-200211

SANDAL WOOD,TRIM4#

sub67620-06351

main67620-06351-E1iACV30..TH200211-200405

SANDAL WOOD,TRIM4#

main67620-06400-E1iACV3#..MA200206-200211

SANDAL WOOD,TRIM4#

sub67620-06401

main67620-06401-E1iACV3#..MA200211-200407

SANDAL WOOD,TRIM4#

main67620-06410-E1iACV30..IDN200205-200211

SANDAL WOOD,TRIM4#

sub67620-06411

main67620-06411-E1iACV30..IDN200211-200405

SANDAL WOOD,TRIM4#

main67620-06420-E1iACV3#..PHL,VN200206-200211

SANDAL WOOD,TRIM4#

sub67620-06421

main67620-06421-E1iACV3#..PHL,VN200211-200407

SANDAL WOOD,TRIM4#

main67620-06440-E0iMCV30..IDN200205-200211

SANDAL WOOD,TRIM4#

sub67620-06441

main67620-06441-E0iMCV30..IDN200211-200405

SANDAL WOOD,TRIM4#

main67620-06451-E1iACV31..MA200407-200608

SANDAL WOOD,TRIM0#

main67620-06461-E1iACV30..MA200407-200608

SANDAL WOOD,TRIM0#

main67620-06470-E0iACV30..LHD..(24E,24G)200407-200611

IVORY,TRIM0#

main67620-06480-C0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

LEATHER,BLACK,TRIM2#

sub67620-06490

main67620-06480-E0iACV31,MCV30..(20E,20G,30G)..TAIW200404-200605

LEATHER,IVORY,TRIM0#

sub67620-06490

main67620-06480-E0iACV30..24V..PHL200407-200608

IVORY,TRIM0#

sub67620-06490

main67620-06490-C0iMCV30..TAIW200404-200605

LEATHER & W(INSIDE HANDLE ILLUMINATION LAMP),BLACK,TRIM2#

main67620-06490-E0iMCV30..PHL,VN200407-200611

IVORY,TRIM0#

main67620-06490-E0iMCV30..TAIW200404-200605

LEATHER & W(INSIDE HANDLE ILLUMINATION LAMP),IVORY,TRIM0#

main67620-06510-E0iACV31..TH;ACV30..TH..5F200405-200608

FABRIC,IVORY,TRIM0#

main67620-06520-E0iACV3#,MCV30..(20E,24G,30V)..TH..4FC200405-200608

LEATHER,IVORY,TRIM0#

sub67620-06351

main67620-06530-E0iACV30..TH..4FC200405-200608

LEATHER & W(INSIDE HANDLE ILLUMINATION LAMP),IVORY,TRIM0#

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-06020iACV3#,MCV30200203-200211

main68171-06021iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200211-200611

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-06020iACV3#,MCV30200203-200211

main68172-06021iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200211-200611

9015940141

main90159-40141

9015940248

main90159-40248

9015960370

main90159-60370

9018904200

main90189-04200

9018906127

main90189-06127

9046804181

main90468-04181

9356855018

main93568-55018

15 parts on this diagram · 2 diagrams in section
