SIDE MEMBER

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

5701

58331DBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1

main58331-33010iACV3#,MCV30..MA,PHL,TH,VN200405-200611

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-06040iACV30..LHD;MCV30..5FC;ACV31..TAIW200203-200611

main61101-06050iMCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC200203-200608

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-06060iACV3#,MCV30..LHD..(4FC,5F)200203-200611

main61102-06070iACV3#,MCV30..RHD200203-200608

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-33120iACV3#,MCV30..RHD200203-200407

main61108-33130iACV3#,MCV30..LHD..(4FC,5F)200203-200407

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-33120iACV30..LHD;MCV30..5FC;ACV31..TAIW200203-200407

main61109-33130iMCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC200203-200407

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-33010iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-33010iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-33030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-33030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61181ABRACKET, INSTRUMENT SIDE, RH

main61181-33010iACV3#,MCV30..LHD..(4FC,5F)200203-200407

61182CBRACKET, INSTRUMENT SIDE, LH

main61182-33010iMCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC200203-200407

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-06010iACV3#,MCV30..LHD..(4FC,5F)200203-200611

main61203-06020iACV3#,MCV30..RHD200203-200608

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61204-06010iACV3#,MCV30..LHD..(4FC,5F)200203-200611

main61204-06020iMCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC200203-200608

61211RAIL, ROOF SIDE, OUTER RH

main61211-33020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61212RAIL, ROOF SIDE, OUTER LH

main61212-33020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-33050iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

sub61213-33080

main61213-33080iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-33050iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

sub61214-33080

main61214-33080iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

61235BBRACKET, ASSIST GRIP

main61235-33020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61236CBRACKET, ASSIST GRIP

main61235-33020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-33010iMCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC200203-200407

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-33040iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

main61304-33040iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-33030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

main61306-33030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-06010iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200611

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61308-06010iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200611

61311BPILLAR, CENTER BODY, OUTER RH

main61311-06010iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61312BPILLAR, CENTER BODY, OUTER LH

main61312-06010iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

61611PANEL, QUARTER, RH

main61601-06050iACV3#,MCV30..LHD..(4FC,5F)200203-200407

main61601-06080iMCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC200211-200407

sub61601-06050

61612PANEL, QUARTER, LH

main61602-06060iACV3#,MCV30..RHD200203-200407

main61602-06080iACV3#,MCV30..RHD200211-200407

sub61602-06060

61615FREINFORCEMENT, QUARTER PANEL, OUTER RH

main61615-33050iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

61616EREINFORCEMENT, QUARTER PANEL, OUTER LH

main61616-33050iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-06901iACV3#,MCV30..PHL,VN200203-200407

main61621-06902iACV31,MCV30..TAIW200203-200404

main61621-06904iACV31,MCV30..TAIW200404-200605

main61621-33030iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200405-200611

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-06901iACV31,MCV30..TAIW200203-200407

main61622-06902iACV3#..MA200203-200407

main61622-06903iACV31,MCV30..TAIW200404-200605

main61622-33030iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200405-200611

61625EEXTENSION, QUARTER PANEL, INNER REAR RH

main61625-06040iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

61626EEXTENSION, QUARTER PANEL, INNER REAR LH

main61626-06040iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-06030iMCV30..IDN;ACV30..(IDN,VN)..5F;ACV3#,MCV30..(20E,20G,20J,24G,24Q,24V,30G)..4FC200203-200407

main61631-06040iACV30..24V;MCV30..30V..5FC200203-200407

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-06030iMCV30..IDN;ACV30..(IDN,VN)..5F;ACV3#,MCV30..(20E,20G,20J,24G,24Q,24V,30G)..4FC200203-200407

main61632-06040iMCV30..LHD..30V..4FC200203-200407

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-06030iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-06030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-33030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-33030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-33020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-33020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61667CSEAL, QAURTER PANEL, NO.1

main61667-33070iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61697DHOUSING, QUARTER PANEL END, RH

main61697-06050iACV3#,MCV30..MA,PHL,TH,VN200405-200608

61698DHOUSING, QUARTER PANEL END, LH

main61698-06050iACV3#,MCV30..MA,PHL,TH,VN200405-200608

61711PANEL, ROOF SIDE, OUTER RH

main61711-33040iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61712PANEL, ROOF SIDE, OUTER LH

main61712-33040iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61731BPANEL, ROOF SIDE, INNER RH

main61731-06050iMCV30..IDN;ACV30..(IDN,VN)..5F;ACV3#,MCV30..(20E,20G,20J,24G,24Q,24V,30G)..4FC200203-200407

main61731-06060iMCV30..LHD..30V..4FC200203-200407

61732BPANEL, ROOF SIDE, INNER LH

main61732-06040iMCV30..IDN;ACV30..(IDN,VN)..5F;ACV3#,MCV30..(20E,20G,20J,24G,24Q,24V,30G)..4FC200203-200407

main61732-06050iACV30..24V;MCV30..30V..5FC200203-200407

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-33050iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-33050iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

61824PLATE, NOISE CONTROL, NO.1

main61824-33020iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

61824DPLATE, NOISE CONTROL, NO.1

main61825-30020iMCV30..30V..TAIW200203-200407

61825APLATE, NOISE CONTROL, NO.2

main61825-30020iMCV30..PHL,TH;MCV30..VN..5FC;ACV31..MA,TAIW,TH;ACV30,MCV30..(24E,24G,24Q,24V,30G)..(MA,PHL,TAIW,TH,VN)200203-200407

61826APLATE, NOISE CONTROL, NO.3

main61824-0D020iACV3#,MCV30..MA,PHL,VN200405-200407

main61824-12040iACV3#,MCV30..4FC,5F200203-200405

62611DPAD, QUARTER WHEEL HOUSE, RH

main62611-33030iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

62612DPAD, QUARTER WHEEL HOUSE, LH

main62612-33030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

62939ASILENCER, QUARTER VENT

main62939-32020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

NO.1

main62939-32030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

NO.2

6403

64116BREINFORCEMENT, UPPER BACK, RH

main64201-06900iACV3#..MA200203-200608

main64201-06901iMCV30..VN200203-200407

sub64201-06904

main64201-06902iACV3#..PHL,VN200205-200611

main64201-06904iACV30..24V;MCV30..30V..5FC200404-200611

64117BREINFORCEMENT, UPPER BACK, LH

main64202-06900iACV31,MCV30..(20E,20G,20J,30G)..TAIW200203-200608

main64202-06902iACV30..LHD..(24E,24G);ACV31,MCV30..(20E,20G,30G)..TAIW200205-200611

main64202-06904iMCV30..VN200203-200611

8271533550BRACKET,WIRING HARNESS CLAMP

main82715-33550

9017908086

main90179-08086

9018906065

main90189-06065

9046705165B0

main90467-05165B0

9046711025

main90467-11025

9054111010

main90541-11010

91641K0816

main91641-K0816

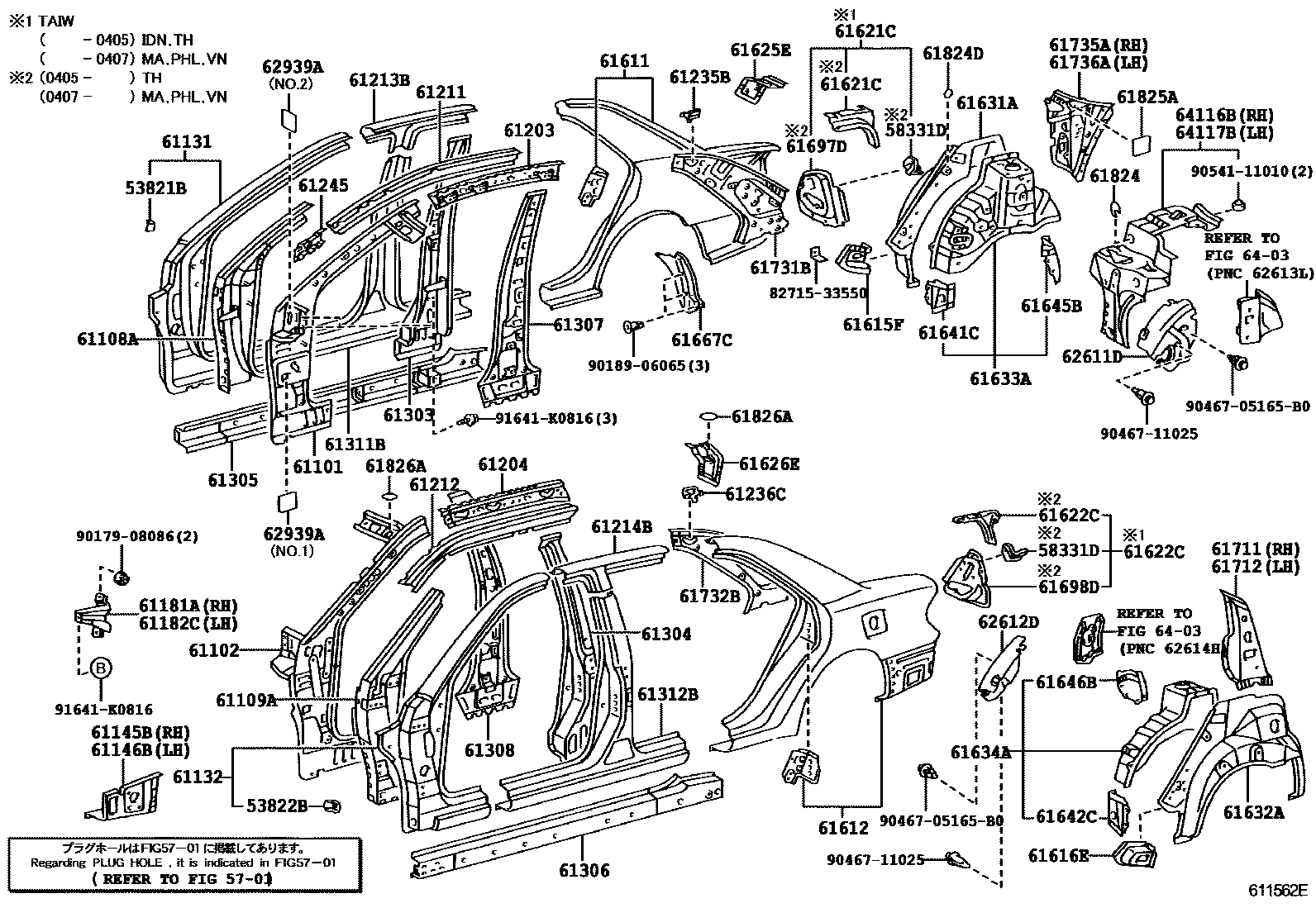

73 parts on this diagram · 1 diagram in section
