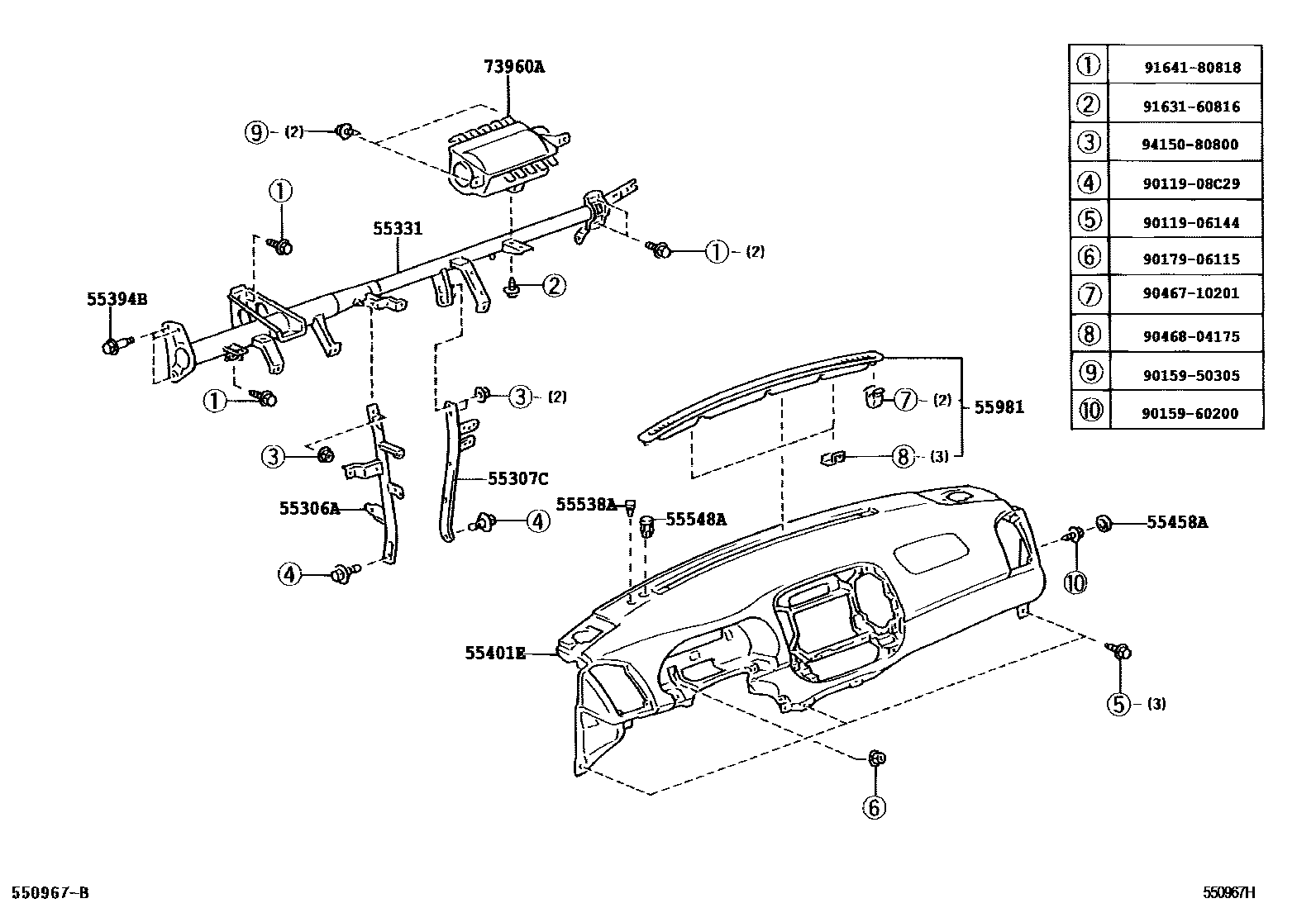

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-06060iACV3#,MCV30..LHD..(4FC,5F)200203-200407

main55306-33070iMCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC¥4,210200203-200407

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-06070iACV30..LHD;MCV30..5FC;ACV31..TAIW200203-200407

main55307-33130iACV3#,MCV30..RHD¥1,670200203-200407

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-06020iACV30,MCV30..IDN200205-200211

main55330-06070iACV31,MCV30..TAIW200203-200407

main55330-06080iACV30,MCV30..IDN200203-200407

main55330-06090iACV3#,MCV30..RHD200405

main55330-33190iACV3#..MA¥21,900200206-200303

55394BBOLT, INSTRUMENT PANEL

main55394-33010iACV3#,MCV30..IDN,TH¥200200203-200407

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-06060-B0iACV31,MCV30..(20G,30G,30V)..TAIW200203-200404

W(AIR BAG),DK.CHARCOAL,TRIM1#

main55401-06060-C0iMCV30..TAIW200404-200605

BLACK,TRIM2#

main55401-06060-C0iACV31..20G..TAIW200404-200605

W(AIR BAG),BLACK,TRIM2#

main55401-06060-E0iACV30..LHD;MCV30..5FC200404-200611

SANDAL WOOD,TRIM0#

main55401-06060-E0iACV31,MCV30..(20G,30G,30V)..TAIW200203-200404

W(AIR BAG),SANDAL WOOD,TRIM4#

main55401-06060-E0iACV3#,MCV30..PHL,VN200206-200407

SANDAL WOOD,TRIM4#

main55401-06060-E0iACV31..20G..TAIW200404-200605

W(AIR BAG),SANDAL WOOD,TRIM0#

main55401-06070-B0iACV31,MCV30..(20E,20G,20J,30G)..TAIW200203-200404

W/O(AIR BAG),DK.CHARCOAL,TRIM1#

main55401-06070-C0iACV31..TAIW200404-200605

W/O(AIR BAG),BLACK,TRIM2#

main55401-06070-E0iACV31..TAIW200404-200605

W/O(AIR BAG),SANDAL WOOD,TRIM0#

main55401-06070-E0iACV31,MCV30..(20E,20G,30G)..TAIW200203-200404

W/O(AIR BAG),SANDAL WOOD,TRIM4#

main55401-06080-E0iACV3#..MA200203-200407

SANDAL WOOD,TRIM4#

main55401-06080-E0iACV3#,MCV30..MA,TH200404-200608

SANDAL WOOD,TRIM0#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-06010-B0iACV31,MCV30..TAIW200203-200404

DK.CHARCOAL,TRIM1#

main55458-06010-C0iACV31,MCV30..TAIW200404-200605

BLACK,TRIM2#

main55458-06010-E0iACV31..20J200203-200404

SANDAL WOOD,TRIM4#

main55458-06010-E0iACV31,MCV30..TAIW200404-200605

SANDAL WOOD,TRIM0#

main55458-33090-E0iACV3#,MCV30..IDN,TH200203-200407

SANDAL WOOD,TRIM4#

sub55458-33090¥160

main55458-33090-E0iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200405-200611

SANDAL WOOD,TRIM0#

sub55458-33090¥160

55538ACOVER, COOLER SWITCH HOLE

main55538-06030-B0iACV31..20J200203-200404

DK.CHARCOAL,TRIM1#

main55538-06030-E0iACV3#..(20E,24G)..(MA,PHL,VN)200203-200407

SANDAL WOOD,TRIM4#

main55538-06030-E0iACV3#..(20E,24G)..TH..4FC200405-200608

SANDAL WOOD,TRIM0#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-06010-B0iACV31..(20E,20J)..TAIW200203-200404

DK.CHARCOAL,TRIM1#

sub55548-06010

main55548-06010-C0iACV31..20E..TAIW200404-200605

BLACK,TRIM2#

sub55548-06010

main55548-06010-E0iACV31..20E..TAIW200404-200605

SANDAL WOOD,TRIM0#

sub55548-06010

main55548-06010-E0iACV31..20J200203-200404

SANDAL WOOD,TRIM4#

sub55548-06010

main55548-12070-E1iACV31..RHD;MCV30..PHL;ACV30..(24E,24G,24V)..(MA,PHL,TH)200405-200608

SANDAL WOOD,TRIM0#

sub55548-12070¥610

main55548-12070-E1iACV3#..IDN,TH200203-200407

SANDAL WOOD,TRIM4#

sub55548-12070¥610

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-06030iACV31,MCV30..TAIW200203-200404

main55981-33100iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC¥3,400200203-200407

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-06050iACV31,MCV30..(20G,30G,30V)..TAIW200203-200407

main73960-06060iACV3#,MCV30..RHD200203-200407

sub73960-06160

9011906144

main90119-06144¥80

9011908C29

main90119-08C29¥80

9015950305

main90159-50305¥120

9015960200

main90159-60200¥100

9017906115

main90179-06115¥120

9046710201

main90467-10201¥80

9046804175

main90468-04175¥40

9163160816

main91631-60816¥160

9164180818

main91641-80818¥80

9415080800

main94150-80800¥90

20 parts on this diagram · 8 diagrams in section
