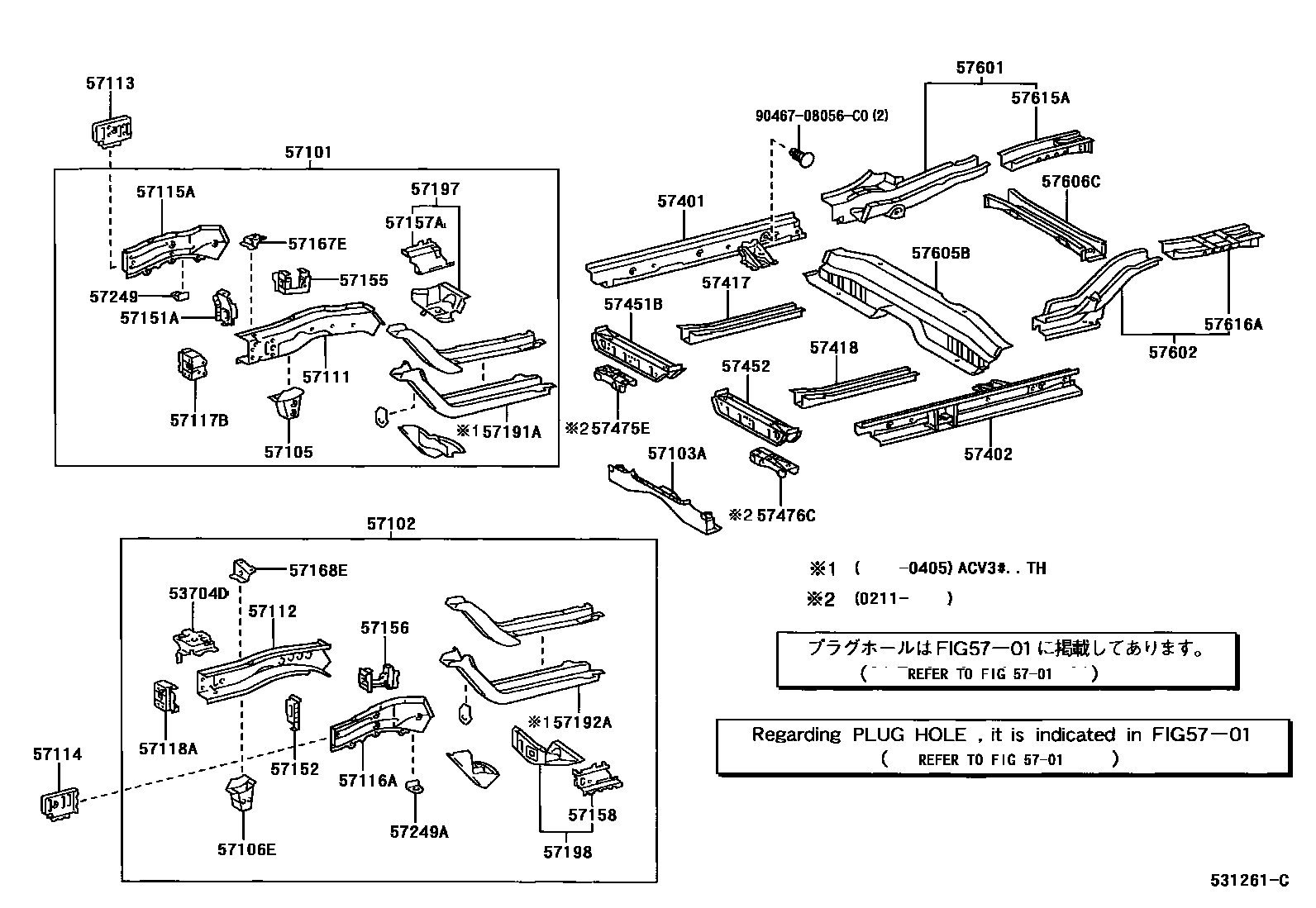

FLOOR SIDE MEMBER

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-33020iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

5701

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-06060iACV3#,MCV30..PHL,VN200203-200407

sub57101-06061

sub90333-30008

main57101-06070iACV3#,MCV30..IDN,TH200203-200405

sub57016-06080

sub57025-06030

sub57027-06060

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-06070iACV3#,MCV30..IDN,TH200203-200405

main57102-06090iACV31,MCV30..TAIW200203-200404

sub57102-06091

sub90333-30008

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-06040iACV30,MCV30..LHD200605-200611

sub57103-06041

main57103-06090iACV3#,MCV30..LHD200501-200604

main57103-33030iACV3#,MCV30..IDN,TH200203-200405

main57103-33051iACV3#,MCV30..RHD200504-200608

sub57103-33052

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-28120iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-28120iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

57111MEMBER, FRONT SIDE, RH

main57111-33020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

sub57111-33021

sub90333-30008

57112MEMBER, FRONT SIDE, LH

main57112-33030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

sub57112-33031

sub90333-30008

57113EXTENSION, FRONT SIDE MEMBER, RH

main57107-33050iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404-200611

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-33060iACV31,MCV30..TAIW200203-200404

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-33030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-33020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-06050iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-06050iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-33020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-33030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-33030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-33030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

57157AREINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH

main57157-06050iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH

main57158-06050iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

57167EGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-33020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

57168EGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-33020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-33010iMCV30..IDN,VN;ACV3#..RHD..4FC;ACV30..(IDN,VN)..5F200203-200407

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-33010iMCV30..IDN,VN;ACV3#..RHD..4FC;ACV30..(IDN,VN)..5F200205-200407

57197BOX, TORQUE, FRONT RH

main57077-06050iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

57198BOX, TORQUE, FRONT LH

main57078-06050iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-10040iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

57249ABRACKET, FREXIBLE HOUSE, NO.1, LH

main57249-10040iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-06100iACV3#,MCV30..IDN,TH200203-200405

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-06100iACV31,MCV30..TAIW200203-200404

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57419-33040iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57419-33040iACV3#,MCV30..LHD..(4FC,5F)200401-200407

57451BMEMBER, FRONT FLOOR CROSS, RH

main57451-06080iACV3#,MCV30..LHD..(4FC,5F)200401-200407

FOR TAIWAN

main57451-33050iACV3#,MCV30200203-200211

main57451-33051iACV3#,MCV30..LHD..(4FC,5F)200401-200407

EXCEPT TAIWAN

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-06030iACV3#,MCV30..RHD200405

FOR TAIWAN

main57452-06040iMCV30..30V..TAIW200404

main57452-06050iACV3#,MCV30..LHD..(4FC,5F)200401-200407

main57452-33020iACV3#,MCV30200203-200211

main57452-33021iACV3#,MCV30..LHD200211-200401

EXCEPT TAIWAN

57475EPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-33010iMCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC200211-200407

57476CPLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-33010iACV3#,MCV30..LHD200211-200401

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-06160iMCV30..LHD..30V..4FC200203-200407

main57601-06250iACV3#,MCV30..LHD200502

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-06100iACV30..LHD;MCV30..5FC;ACV31..TAIW200404-200502

main57602-06200iACV3#,MCV30..LHD200502

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-06120iACV3#,MCV30..LHD200502

main57605-33060iMCV30..LHD..30V..4FC200203-200407

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-33090iMCV30..LHD..30V..4FC200203-200407

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-06903iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-06904iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200404

9046708056C0

main90467-08056C0

44 parts on this diagram · 1 diagram in section
