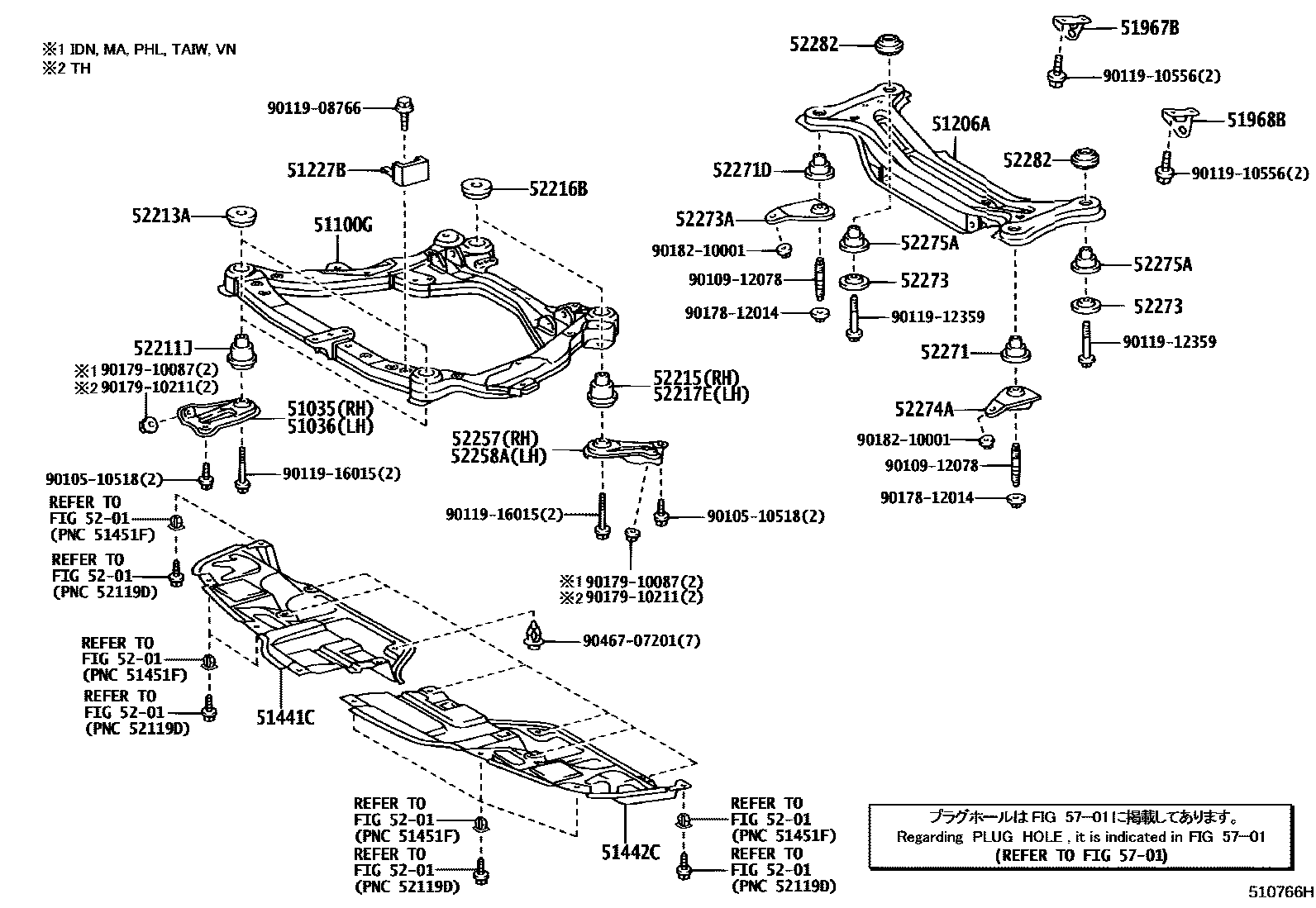

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-33010iACV3#,MCV30..4FC,5F200203-200208

sub51035-33011

main51035-33011iACV31,MCV30..TAIW200208-200407

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-33010iACV3#,MCV30..4FC,5F200203-200208

sub51036-33011

main51036-33011iACV31,MCV30..TAIW200208-200407

51100GFRAME ASSY, FRONT

main51100-28020iACV30..5F200205-200307

main51100-33070iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200611

sub51100-33073

main51100-33090iACV30..5F200307-200611

sub51100-33091

sub90119-08D06

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33060iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200505

sub51206-33080

main51206-33061iACV3#,MCV30200506

sub51206-33100

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-06040iACV31,MCV30..TAIW200404

(L)

main51227-33080iACV31,MCV30..TAIW200404

(J)

main51227-33080iACV31,MCV30..TAIW200203-200407

51441CCOVER, ENGINE UNDER, RH

main51441-06040iACV3#,MCV30..IDN,TH200203-200407

51442CCOVER, ENGINE UNDER, LH

main51442-06030iACV31,MCV30..TAIW200203-200407

51967BHOOK, TRANSPORT, REAR RH

main51967-33020iACV3#,MCV30..IDN,MA,PHL200205-200407

51968BHOOK, TRANSPORT, REAR LH

main51968-33010iACV31,MCV30..TAIW200203-200407

5201

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06040iACV31,MCV30..TAIW200203-200404

main52211-06050iACV3#,MCV30..TH200203-200405

main52211-33070iACV3#,MCV30..MA,PHL,VN200205-200407

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06040iACV31,MCV30..TAIW200203-200404

main52213-06050iACV3#,MCV30..TH200203-200405

main52213-28010iACV3#,MCV30..MA,PHL,VN200205-200407

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06040iACV31,MCV30..TAIW200203-200404

main52215-06050iACV3#..TH200203-200405

main52215-33080iACV30,MCV30..IDN200205-200407

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06040iACV31,MCV30..TAIW200203-200404

main52216-06050iACV3#,MCV30..TH200203-200405

main52216-28010iACV30,MCV30..IDN200205-200407

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-06020iACV31,MCV30..TAIW200203-200404

main52217-06030iACV3#,MCV30..TH200203-200405

main52217-33010iACV3#,MCV30..MA,PHL,VN200205-200407

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-33040iACV31,MCV30..TAIW200203-200407

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-33050iACV31,MCV30..TAIW200203-200407

52271CUSHION, REAR SUSPENSION MEMBER

main52272-06050iACV31,MCV30..TAIW200203-200404

main52272-06060iACV3#,MCV30..TH200203-200405

main52272-33050iACV3#,MCV30..MA,PHL,VN200205-200407

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-06060iACV31,MCV30..TAIW200203-200404

main52271-06070iACV3#,MCV30..TH200203-200405

main52271-33050iACV3#,MCV30..MA,PHL,VN200205-200407

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33010iACV31,MCV30..TAIW200203-200407

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-33020iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-33020iACV3#,MCV30..IDN,TH200203-200407

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06060iACV31,MCV30..TAIW200203-200404

main52275-06070iACV3#..TH200203-200405

main52275-33060iACV30,MCV30..IDN200205-200407

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-06040iACV3#..TH200203-200405

main52282-33050iACV3#,MCV30..MA,PHL,VN200205-200407

5701

9010510518

main90105-10518

9010912078

main90109-12078

9011908766

main90119-08766

9011910556

main90119-10556

9011912359

main90119-12359

9011916015

main90119-16015

9017812014

main90178-12014

9017910087

main90179-10087

9017910211

main90179-10211

9018210001

main90182-10001

9046707201

main90467-07201

36 parts on this diagram · 2 diagrams in section
