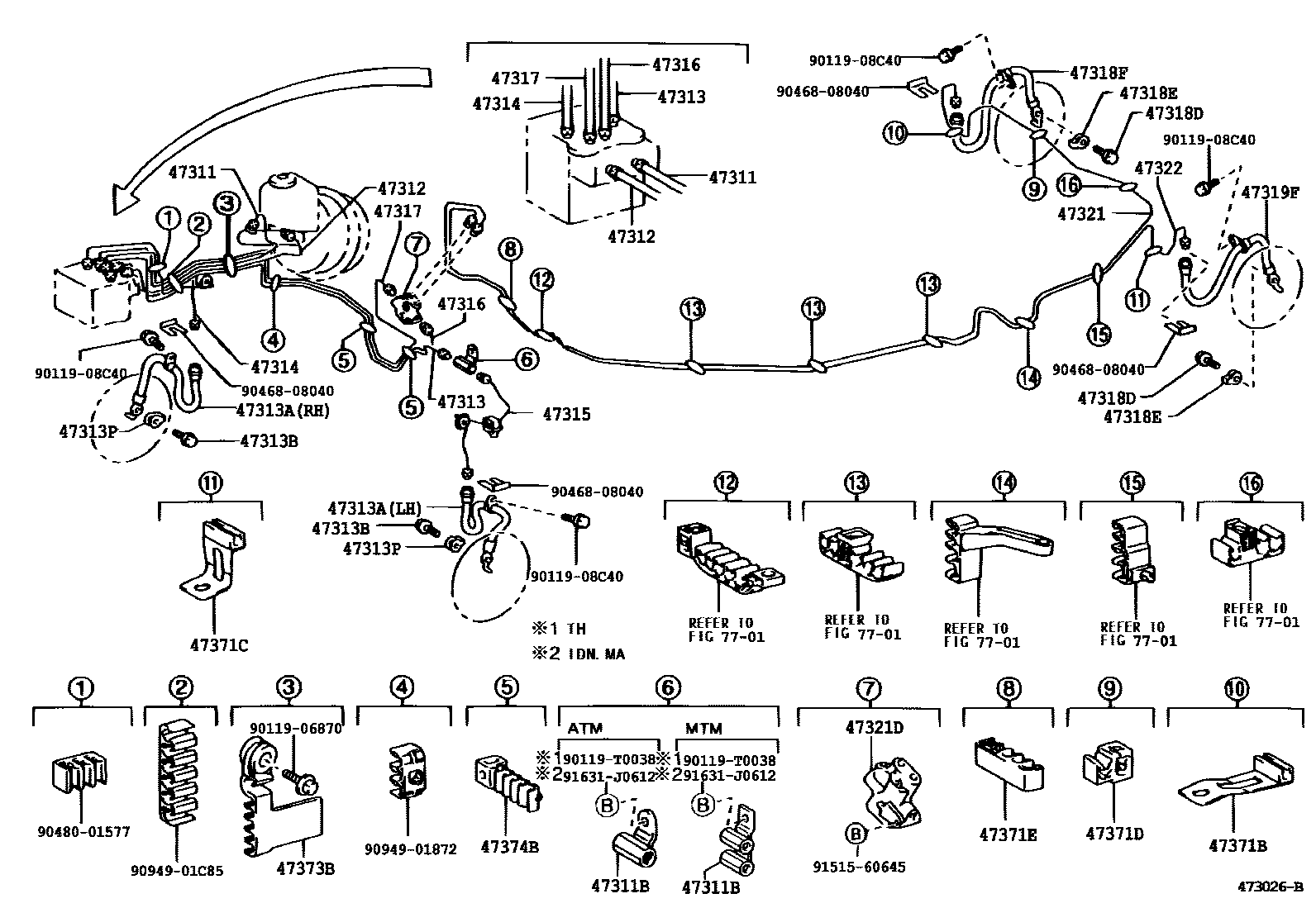

BRAKE TUBE & CLAMP

0001 1 0002 1W(VSC) 0003 1 0004 1 0005 1W(VSC) 0007 1 0008 1W(VSC) 0009 1W(VSC) 0010 1W(VSC)

47311TUBE, FRONT BRAKE, NO.1

main47311-33070iACV30,MCV30..RHD..(24Q,24V,30V)200405

main47311-33080iACV3#..RHD..(20E,24G)200405

main47311-33090iACV31,MCV30..TAIW200404

W(VSC)

main47311-33100iACV3#,MCV30..PHL,VN200203-200407

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10158iACV30..TH..5F200405

main90412-10213iACV3#..TH200203-200405

47312TUBE, FRONT BRAKE, NO.2

main47312-33090iACV30,MCV30..RHD..(24Q,24V,30V)200405

main47312-33100iACV3#..(20E,24G)..TH200203-200405

main47312-33110iACV31,MCV30..(20G,30G,30V)..TAIW200203-200404

W(VSC)

main47312-33120iACV31,MCV30..(20E,20G,20J,30G)..TAIW200203-200404

47313TUBE, FRONT BRAKE, NO.3

main47313-33090iACV30,MCV30..RHD..(24Q,24V,30V)200405

main47313-33100iACV3#..(20E,24G)..TH200203-200405

main47313-33110iACV31,MCV30..(20G,30G,30V)..TAIW200203-200404

W(VSC)

main47313-33120iACV30..LHD;ACV31..TAIW;MCV30..(PHL,VN)..5FC200404

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94147iMCV30..TAIW,TH;MCV30..VN..5FC;ACV3#..MA,TAIW,TH,VN200404

RH

main90080-94148iACV30,MCV30..PHL200407

RH

main90080-94150iMCV30..TAIW,TH;MCV30..VN..5FC;ACV3#..MA,TAIW,TH,VN200404

LH

main90080-94151iACV3#..PHL200206-200407

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iACV30,MCV30..PHL200407

main90401-10058×2iACV30,MCV30..IDN200203-200405

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iACV30,MCV30..IDN200203-200405

main90430-10074×4iACV30,MCV30..PHL200407

47314TUBE, FRONT BRAKE, NO.4

main47314-33060iACV30..MA200407

main47314-33070iACV31..MA,PHL;ACV30,MCV30..PHL,VN200203-200407

47315TUBE, FRONT BRAKE, NO.5

main47315-33170iACV30,MCV30..IDN200203-200405

main47315-33180iACV30..LHD;MCV30..5FC;ACV31..TAIW200404

47316TUBE, FRONT BRAKE, NO.6

main47316-33190iACV30,MCV30..RHD..(24Q,24V,30V)200405

main47316-33200iACV31..MA200203-200407

main47316-33210iACV31,MCV30..TAIW200404

W(VSC)

main47316-33220iACV3#,MCV30..PHL,VN200203-200407

47317TUBE, FRONT BRAKE, NO.7

main47317-33180iMCV30..IDN200203-200405

main47317-33190iACV31..MA200203-200407

main47317-33200iACV31,MCV30..TAIW200404

W(VSC)

main47317-33210iACV31,MCV30..(20E,20G,20J,30G)..TAIW200203-200404

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iACV3#..PHL200206-200407

main90401-10058×2iACV3#..TH200203-200405

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iACV30,MCV30..IDN200203-200405

main90430-10074×4iACV30,MCV30..PHL200407

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90080-94141iACV3#..TH200203-200405

main90080-94142iACV30,MCV30..PHL200407

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90080-94144iACV3#,MCV30..MA,VN200203-200407

main90080-94145iACV30,MCV30..PHL200407

47321TUBE, REAR BRAKE, NO.1

main47321-33130iACV31,MCV30..TAIW200203-200404

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10140iACV3#..TH200203-200405

47322TUBE, REAR BRAKE, NO.2

main47322-33100iACV31,MCV30..TAIW200203-200404

47371BCLAMP, BRAKE TUBE, NO.6

main47371-32130iACV31,MCV30..TAIW200203-200404

47371CCLAMP, BRAKE TUBE, NO.7

main47371-32140iACV3#..TH200203-200405

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01B45iACV31,MCV30..TAIW200203-200404

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01C53iACV31,MCV30..TAIW200203-200404

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01C55iACV31,MCV30..TAIW200203-200404

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01C56×2iACV31,MCV30..TAIW200203-200404

7701

9011906870

main90119-06870

9011908C40

main90119-08C40

90119T0038

main90119-T0038

9046808040

main90468-08040

9048001577

main90480-01577

9094901872

main90949-01872

9094901C85

main90949-01C85

9151560645

main91515-60645

91631J0612

main91631-J0612

34 parts on this diagram · 9 diagrams in section
