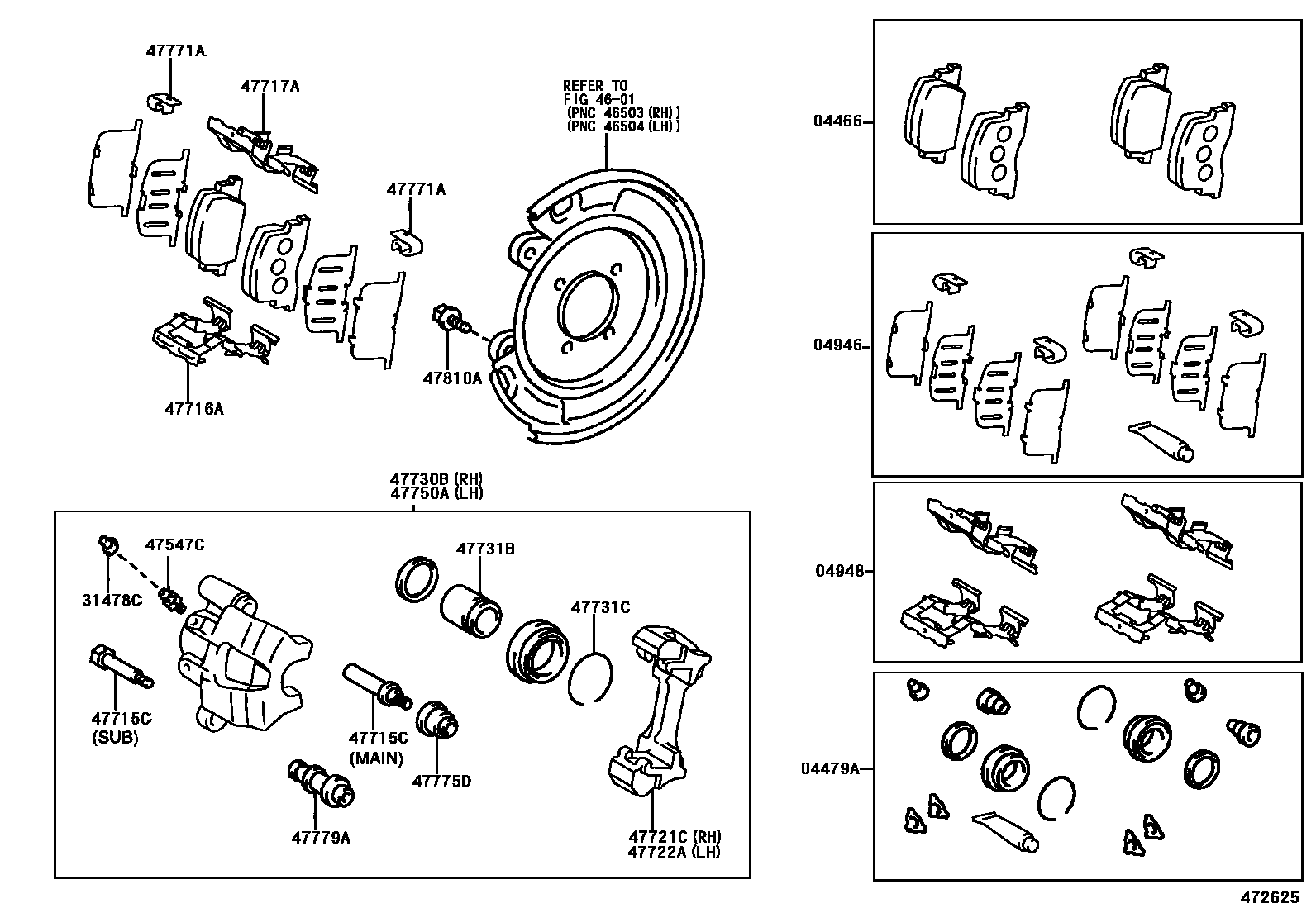

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-06010iACV31,MCV30..TAIW200203-200605

MARK G PA557

main04466-33090iACV30,MCV30..IDN200205-200407

MARK AK PA544

main04466-33130iACV3#..TH..4FC200203-200608

MARK AK PA511H

main04466-33140iACV31..MA;MCV30..PHL,TH;MCV30..VN..5FC;ACV30..24E,24G,24V200405-200611

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-06100iACV31,MCV30..TAIW200203-200404

main04479-48030iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200203-200407

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-06010iACV31,MCV30..TAIW200203-200404

main04946-33020iACV3#,MCV30..IDN,TH200203-200407

04948FITTING KIT, DISC BRAKE, REAR

main04948-33020iACV31,MCV30..TAIW200203-200407

main04948-48010iACV3#..TH200203-200405

W(15 INCHES DISC WHEEL)

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200407

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-02070iACV31,MCV30..TAIW200203-200404

SUB

main47715-02080iACV31,MCV30..TAIW200203-200404

MAIN

main47715-32020iACV3#,MCV30..IDN,MA,PHL,VN200203-200407

SUB

main47715-32030iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200203-200407

MAIN

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-33120iACV3#,MCV30..(IDN,MA,PHL,TAIW,VN)..(4FC,5F)200203-200407

main47716-48020iACV3#..TH200203-200405

W(15 INCHES DISC WHEEL)

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-33090iACV3#,MCV30..(IDN,MA,PHL,TAIW,VN)..(4FC,5F)200203-200407

main47717-48020iACV3#..TH..4FC200203-200405

W(15 INCHES DISC WHEEL)

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-06110iACV31,MCV30..TAIW200203-200404

main47721-33150iACV3#,MCV30..IDN,MA,PHL,VN200205-200407

sub47715-32040

sub47721-33151

sub47722-33151

sub47771-32050

sub47875-30340

main47721-33150iACV31..MA;ACV30..TH..5F;MCV30..PHL,TH;MCV30..VN..5FC;ACV30..MA,PHL,VN200405

INDONESIA SPEC

sub47715-32040

sub47721-33151

sub47722-33151

sub47771-32050

sub47875-30340

main47721-48030iACV3#..TH200203-200405

sub47715-32040

sub47721-48031

sub47722-48031

sub47771-32050

sub47875-30340

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-06110iACV31,MCV30..TAIW200203-200404

main47721-33150iACV30..24G..4FC200405

INDONESIA SPEC

sub47715-32040

sub47721-33151

sub47722-33151

sub47771-32050

sub47875-30340

main47721-33150iACV3#,MCV30..IDN,MA,PHL,VN200205-200407

sub47715-32040

sub47721-33151

sub47722-33151

sub47771-32050

sub47875-30340

main47721-48030iACV3#..TH..4FC200203-200405

sub47715-32040

sub47721-48031

sub47722-48031

sub47771-32050

sub47875-30340

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-06110iACV31,MCV30..TAIW200203-200404

main47730-33210iACV31..MA;MCV30..PHL,TH;MCV30..VN..5FC;ACV30..24E,24G,24V200205-200407

main47730-48040iACV3#..TH200203-200405

W(15 INCHES DISC WHEEL)

47731BPISTON, REAR DISC BRAKE

main47731-48020iACV3#,MCV30..(TAIW,TH)..4FC200203-200407

sub47731-30120

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006iACV3#,MCV30..IDN,MA,PHL,VN200203-200407

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-06110iACV31,MCV30..TAIW200203-200404

main47750-33210iACV31..MA;MCV30..PHL,TH;MCV30..VN..5FC;ACV30..24E,24G,24V200205-200407

main47750-48040iACV3#..TH200203-200405

W(15 INCHES DISC WHEEL)

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-32030iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-06040iACV31,MCV30..TAIW200203-200404

main47775-32050iACV3#,MCV30..IDN,MA,PHL,VN200203-200407

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-06010iACV31,MCV30..TAIW200203-200404

main47779-32030iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200203-200407

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379iMCV30..VN..5FC;ACV31..MA,TAIW,TH;MCV30..PHL,TAIW,TH;ACV30..MA,PHL,TH,VN200203-200611
