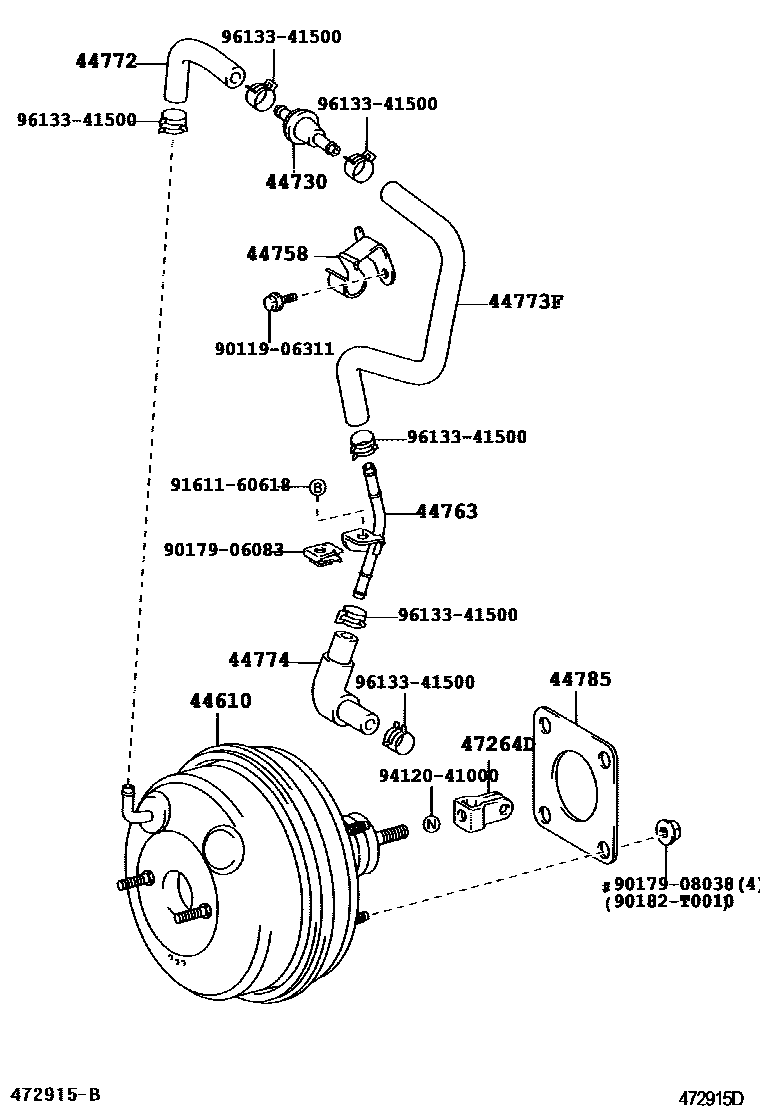

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1

44610BOOSTER ASSY, BRAKE

main44610-06240iACV31,MCV30..TAIW200203-200404

main44610-33640iACV3#..TH¥60,000200203-200405

main44610-33690iACV30,MCV30..PHL,VN¥50,800200206-200407

main44610-33720iACV3#..(20E,24G)..TH..4FC¥60,000200405

SINGAPORE SPEC

main44610-33730iACV30..24G..4FC¥60,000200405

INDONESIA SPEC

main44610-33730iACV3#,MCV30..IDN,MA¥60,000200205-200407

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC¥1,820200203-200407

44758BRACKET, VACUUM CHECK VALVE

main44758-33070iMCV30..PHL,VN¥1,140200207-200407

main44758-33080iMCV30..IDN;ACV30..IDN..5F;ACV3#..RHD..4FC¥1,150200203-200407

main44758-33090iACV3#..PHL,VN¥570200206-200407

NO.1

main44758-33100iACV3#..PHL,VN¥820200206-200407

NO.2

main44758-33120iMCV30..TAIW¥1,150200203-200404

44763TUBE, BOOSTER VACUUM

main44763-06030iACV31..TAIW200203-200404

main44763-33040iACV3#..PHL,VN¥1,780200206-200407

main44763-33060iACV30..IDN..5F;ACV3#..RHD..4FC¥1,390200203-200407

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-06050iACV31..TAIW200203-200404

main44772-06060iMCV30..TAIW200203-200404

main44772-33090iACV3#..PHL,VN¥750200206-200407

main44772-33110iACV3#,MCV30..RHD¥750200203-200407

44773FHOSE, UNION TO CHECK VALVE

main44773-06040iMCV30..TAIW200203-200404

main44773-33080iMCV30..VN¥2,290200207-200407

main44773-33110iMCV30..TH¥2,170200205-200405

main44773-33120iMCV30..5FC¥1,870200404

main44773-33140iACV30..IDN..5F;ACV3#..RHD..4FC¥1,670200203-200407

44774HOSE, UNION TO CONNECTOR TUBE

main44774-06040iACV31..TAIW200203-200404

main44774-33060iACV3#..PHL,VN¥2,790200206-200407

main44774-33070iACV3#..RHD¥570200203-200407

44785GASKET, BRAKE BOOSTER

main44785-20020iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC¥320200203-200407

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iACV3#,MCV30..MA,PHL,VN¥250200402-200407

main47264-12060iMCV30..30V..TAIW¥250200203-200404

W(ABS)

main47264-63010iACV31,MCV30..(20G,30G,30V)..TAIW¥250200203-200404

W(VSC)

main47264-63010iACV3#,MCV30..IDN,MA,PHL,TH,VN¥250200203-200402

9011906311

main90119-06311¥100

9017906083

main90179-06083¥360

9017908038

main90179-08038¥130

90182T0010

main90182-T0010

9161160618

main91611-60618¥120

9412041000

main94120-41000¥80

9613341500

main96133-41500¥140

16 parts on this diagram · 8 diagrams in section
