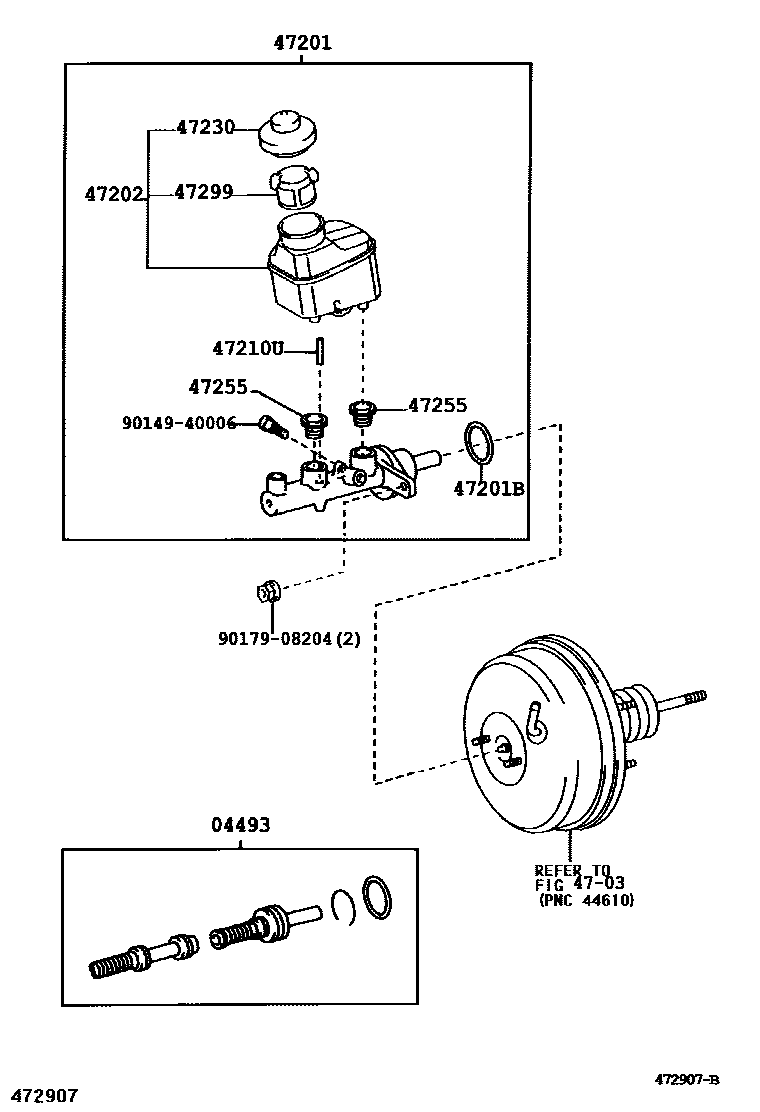

BRAKE MASTER CYLINDER

0001 1W(VSC) 0003 1 0004 1 0005 1W(VSC)

04493CYLINDER KIT, BRAKE MASTER

main04493-06070iACV31..TAIW200203-200404

main04493-06080iACV31,MCV30..TAIW200203-200404

W(VSC)

main04493-33110iACV3#..(20E,24G)..TH200205-200407

main04493-33120iACV30,MCV30..RHD..(24Q,30V)200203-200407

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-06160iACV31,MCV30..(20E,20G,20J,30G)..TAIW200203-200404

main47201-06170iACV31,MCV30..(20G,30G,30V)..TAIW200203-200404

W(VSC)

main47201-33340iACV30,MCV30..ATM..(PHL,VN)200206-200407

main47201-33350iACV30..VN200207-200407

main47201-33370iACV3#..RHD..(20E,24G)..4FC200203-200407

main47201-33390iACV30..IDN..5F200205-200405

main47201-33420iMCV30..IDN200205-200405

main47201-33430iACV30..RHD..(24Q,24V)200203-200407

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iACV31,MCV30..TAIW200203-200407

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-06050iACV31..TAIW200203-200404

main47220-06060iACV31,MCV30..(20G,30G,30V)..TAIW200203-200404

W(VSC)

main47220-33130iACV3#,MCV30..(PHL,VN)..4FC200206-200301

sub47220-33131

main47220-33131iACV30,MCV30..ATM..(PHL,VN)200301-200407

main47220-33140iACV30..VN200207-200407

main47220-33160iACV31..MA200203-200407

main47220-33180iACV30..TH..5F200205-200405

main47220-33210iMCV30..TH200205-200405

main47220-33220iACV30..MA200203-200407

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-14204iACV31,MCV30..(20G,30G,30V)..TAIW200203-200407

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iACV30..VN200207-200407

sub47230-01031

main47230-12040iACV30,MCV30..ATM..(PHL,VN)200301-200407

main47230-20140iACV3#,MCV30..RHD200203-200407

main47230-27020iACV31,MCV30..TAIW200203-200404

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iACV3#,MCV30..IDN,TH200203-200407

main47255-27010iACV31,MCV30..TAIW200203-200404

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iACV31,MCV30..TAIW200203-200407

9014940006

main90149-40006

9017908204

main90179-08204

11 parts on this diagram · 4 diagrams in section
