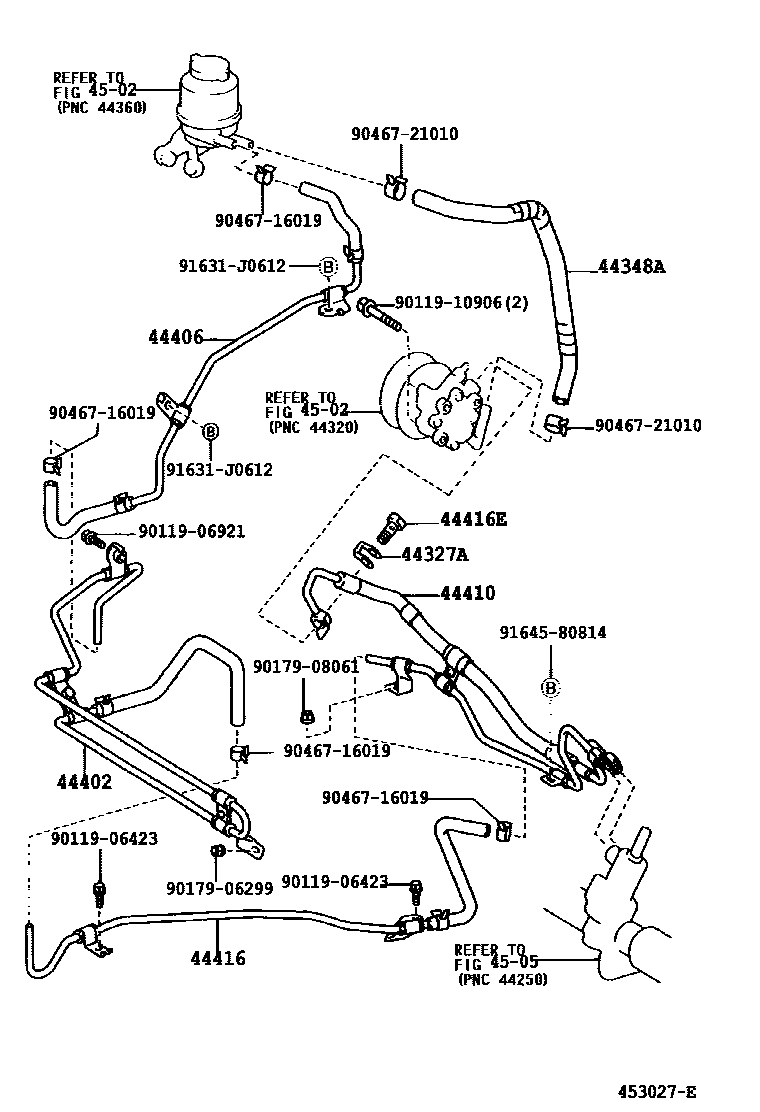

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iACV31,MCV30..TAIW200203-200407

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-06200iACV3#..MA200203-200608

main44348-06240iACV31..TAIW200305-200605

sub44348-33280

main44348-06250iMCV30..TAIW200305-200605

sub44348-33290

main44348-33160iACV3#..PHL,VN200203-200611

main44348-33180iMCV30..VN200203-200611

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-06050iACV3#,MCV30..IDN,TH200203-200407

main44402-06070iACV31..TAIW200305-200404

sub44402-33120

main44402-33090iACV3#,MCV30..PHL,VN200203-200407

44406TUBE SUB-ASSY, RETURN

main44406-06130iACV3#..MA200203-200608

main44406-06150iACV31,MCV30..TAIW200305-200605

sub44406-33130

main44406-33090iACV30,MCV30..PHL,VN200203-200611

44410TUBE ASSY, PRESSURE FEED

main44410-06170iACV3#..MA200203-200608

main44410-06220iACV31..TAIW200305-200605

sub44410-33280

main44410-06230iMCV30..TAIW200305-200605

sub44410-33290

main44410-33190iMCV30..VN200203-200611

main44410-33210iMCV30..IDN200205-200608

main44410-33230iACV3#..LHD200203-200611

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-06130iACV3#..RHD200203-200407

main44416-06150iACV31,MCV30..TAIW200305-200404

sub44416-33240

main44416-33140iACV3#,MCV30..PHL,VN200203-200407

44416EBOLT, UNION(FOR RETURN TUBE)

main96341-41603iACV31..TAIW200203-200407

4502

4505

9011906423

main90119-06423

9011906921

main90119-06921

9011910906

main90119-10906

9017906299

main90179-06299

9017908061

main90179-08061

9046716019

main90467-16019

9046721010

main90467-21010

91631J0612

main91631-J0612

9164580814

main91645-80814

18 parts on this diagram · 4 diagrams in section
