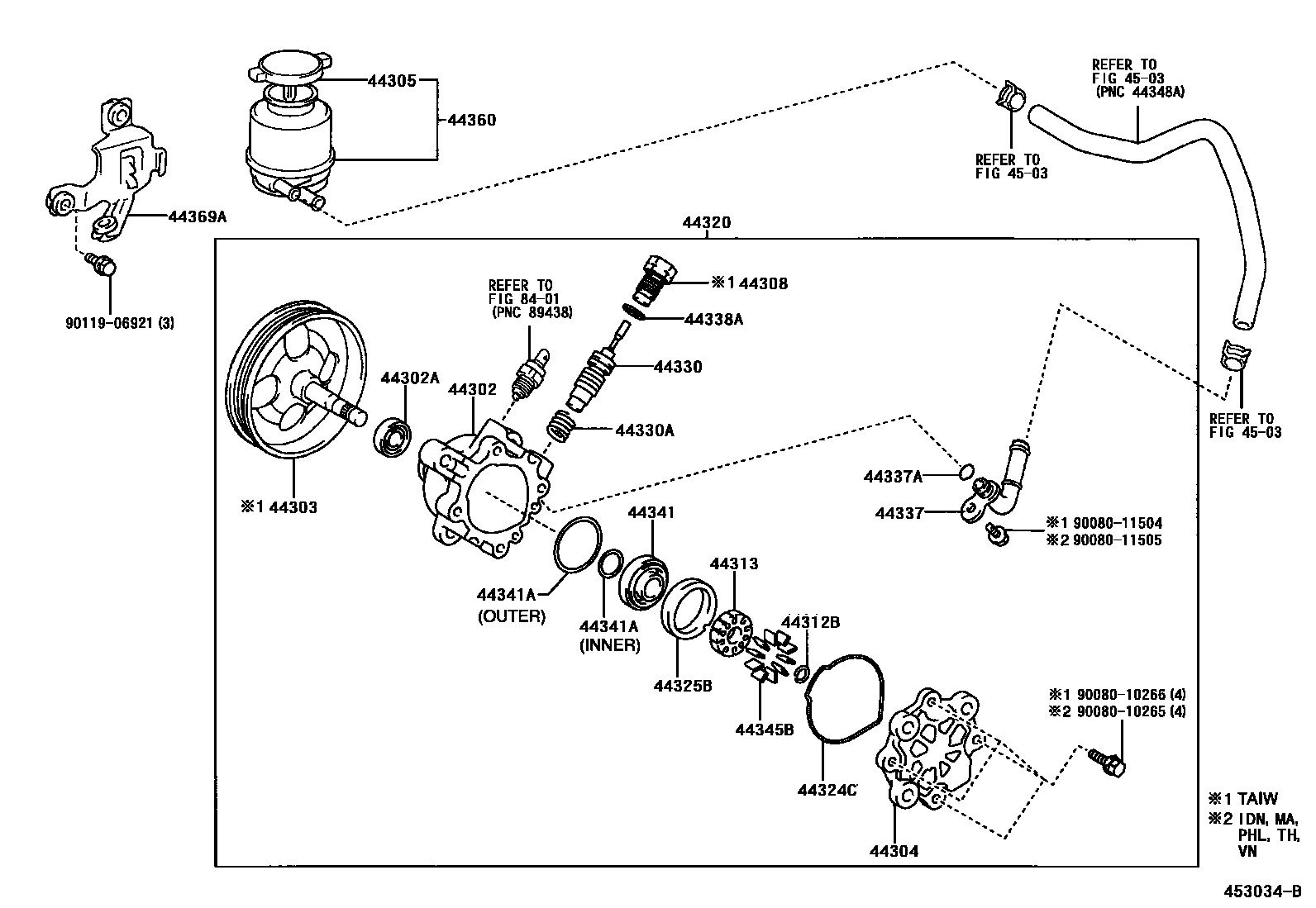

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0004 1 0007 1TYPE A 0008 1TYPE B 0009 1 0010 1

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-06040iMCV30..IDN200205-200407

main44302-06060iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

main44302-06070iACV31..TAIW200203-200404

44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)

main90080-31079iACV31..TAIW200203-200404

main90080-31080iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

44303SHAFT SUB-ASSY, W/ROTOR

main44303-06050iACV31..TAIW200203-200404

NO MARK

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-06020iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

main44304-06030iACV31..TAIW200203-200404

main44324-06020iMCV30..IDN200205-200407

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-02060iACV31,MCV30..TAIW200401-200404

(L)

sub44305-02070

main44305-02060iACV31,MCV30..TAIW200310-200401

sub44305-02070

main44305-28030iACV3#,MCV30..4FC,5F¥1,590200203-200407

sub44305-28060¥1,590

main44305-28030iACV31,MCV30..TAIW¥1,590200401-200404

(J)

sub44305-28060¥1,590

44308UNION SUB-ASSY, PRESSURE PORT

main44308-06050iACV31..TAIW200203-200404

44312SHAFT, VANE PUMP

main44312-06030iMCV30..IDN200205-200407

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90080-52114iACV31..TAIW200203-200404

main90080-52137iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

44313ROTOR, VANE PUMP

main44313-02160iMCV30..IDN200205-200407

NO MARK

main44313-02170iMCV30..VN200205-200407

MARK 1

main44313-02180iMCV30..IDN200205-200407

MARK 2

main44313-02190iMCV30..VN200205-200407

MARK 3

main44313-02200iMCV30..IDN200205-200407

MARK 4

main44313-06110iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK 0

main44313-06120iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK 1

main44313-06130iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK 2

main44313-06140iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK 3

main44313-06150iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK 4

main44313-06160iACV31..TAIW200203-200404

MARK 0

main44313-06170iACV31..TAIW200203-200404

MARK 1

main44313-06180iACV31..TAIW200203-200404

MARK 2

main44313-06190iACV31..TAIW200203-200404

MARK 3

main44313-06200iACV31..TAIW200203-200404

MARK 4

44320PUMP ASSY, VANE

main44310-06080iMCV30..TAIW¥94,600200203-200404

TYPE A

main44310-06130iACV3#..TH200203-200407

main44310-06140iACV31..TAIW200203-200404

main44320-06070iMCV30..VN200205-200407

main44320-33140iMCV30..TAIW¥81,700200203-200404

TYPE B

44324CRING, O(FOR PUMP HOUSING REAR)

main90080-30092iACV31..TAIW200203-200404

main90080-30097iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

44325BRING, VANE PUMP CAM

main44325-06110iMCV30..IDN¥4,120200205-200407

NO MARK

main44325-06120iMCV30..IDN¥4,120200205-200407

MARK 1

main44325-06130iMCV30..VN¥4,120200205-200407

MARK 2

main44325-06140iMCV30..IDN¥4,120200205-200407

MARK 3

main44325-06150iMCV30..VN¥4,120200205-200407

MARK 4

main44325-06160iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

NO MARK

main44325-06170iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK 1

main44325-06180iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK 2

main44325-06190iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK 3

main44325-06200iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK 4

main44325-06210iACV31..TAIW200203-200404

NO MARK

main44325-06220iACV31..TAIW200203-200404

MARK 1

main44325-06230iACV31..TAIW200203-200404

MARK 2

main44325-06240iACV31..TAIW200203-200404

MARK 3

main44325-06250iACV31..TAIW200203-200404

MARK 4

44330VALVE ASSY, FLOW CONTROL

main44330-06370iMCV30..IDN200205-200407

MARK A

main44330-06380iMCV30..IDN200205-200407

MARK B

main44330-06390iMCV30..VN200205-200407

MARK C

main44330-06400iMCV30..IDN200205-200407

MARK D

main44330-06410iMCV30..VN200205-200407

MARK E

main44330-06420iMCV30..VN200205-200407

MARK F

main44330-06430iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK A

main44330-06440iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK B

main44330-06450iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK C

main44330-06460iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK D

main44330-06470iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK E

main44330-06480iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK F

main44330-06490iACV31..TAIW200203-200404

MARK A

main44330-06500iACV31..TAIW200203-200404

MARK B

main44330-06510iACV31..TAIW200203-200404

MARK C

main44330-06520iACV31..TAIW200203-200404

MARK D

main44330-06530iACV31..TAIW200203-200404

MARK E

main44330-06540iACV31..TAIW200203-200404

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90080-50247iMCV30..IDN200205-200407

main90080-50328iACV31..TAIW200203-200404

main90080-50329iACV3#..IDN,MA,PHL,TH,VN200203-200308

main90501-T0001iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200308-200407

44337UNION, POWER STEERING SUCTION PORT

main44337-02080iACV31..TAIW200203-200404

main44337-06040iMCV30..TAIW200203-200404

TYPE A

main44337-06050iMCV30..IDN200205-200407

main44337-06060iACV3#..IDN,TH200203-200407

main44337-33040iMCV30..TAIW¥1,870200203-200404

TYPE B

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30034iMCV30..TAIW¥240200203-200404

TYPE A

main90080-30049iMCV30..IDN200205-200407

main90080-30088iACV31..TAIW200203-200404

main90080-30093iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

main90301-11016iMCV30..TAIW¥140200203-200404

TYPE B

44338ARING, O(FOR PRESSURE PORT UNION)

main90080-30074iMCV30..IDN200205-200407

ID=19.2,OD=22.3

main90080-30090iACV31..TAIW200203-200404

ID=18.6,OD=22.4

main90080-30095iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

ID=18.6,OD=22.4

44341PLATE, VANE PUMP SIDE, FRONT

main44341-06010iACV30;ACV31..RHD200203-200407

main44341-06020iACV31..TAIW200203-200404

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90080-30089iACV31..TAIW200203-200404

INNER

main90080-30091iACV31..TAIW200203-200404

OUTER

main90080-30094iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

INNER

main90080-30096iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

OUTER

44345BPLATE, VANE PUMP

main44345-06060iMCV30..VN200205-200407

L=15.000

main44345-06070iMCV30..IDN200205-200407

L=14.998

main44345-06080iMCV30..VN200205-200407

L=14.996

main44345-06090iMCV30..VN200205-200407

L=14.994

main44345-06100iMCV30..VN200205-200407

L=14.992

main44345-06110iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK 0

main44345-06120iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK 1

main44345-06130iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK 2

main44345-06140iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK 3

main44345-06150iACV30..(IDN,VN)..5F;ACV3#..(IDN,MA,PHL,TH)..4FC200203-200407

MARK 4

main44345-06160iACV31..TAIW200203-200404

MARK 0

main44345-06170iACV31..TAIW200203-200404

MARK 1

main44345-06180iACV31..TAIW200203-200404

MARK 2

main44345-06190iACV31..TAIW200203-200404

MARK 3

main44345-06200iACV31..TAIW200203-200404

MARK 4

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-06040iACV31,MCV30..TAIW200401-200404

(L)

main44360-06040iACV31,MCV30..TAIW200310-200404

main44360-33040iACV31,MCV30..TAIW¥10,200200401-200404

(J)

main44360-33040iACV3#..TH¥10,200200203-200407

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-06030iACV31,MCV30..TAIW200310-200404

main44390-06030iACV31,MCV30..TAIW200401-200404

(L)

main44390-33010iACV30,MCV30..IDN¥1,490200203-200407

main44390-33010iACV31,MCV30..TAIW¥1,490200401-200404

(J)

4503

8401

9008010265

main90080-10265

9008010266

main90080-10266

9008011504

main90080-11504

9008011505

main90080-11505

9011906921

main90119-06921¥80

29 parts on this diagram · 6 diagrams in section
