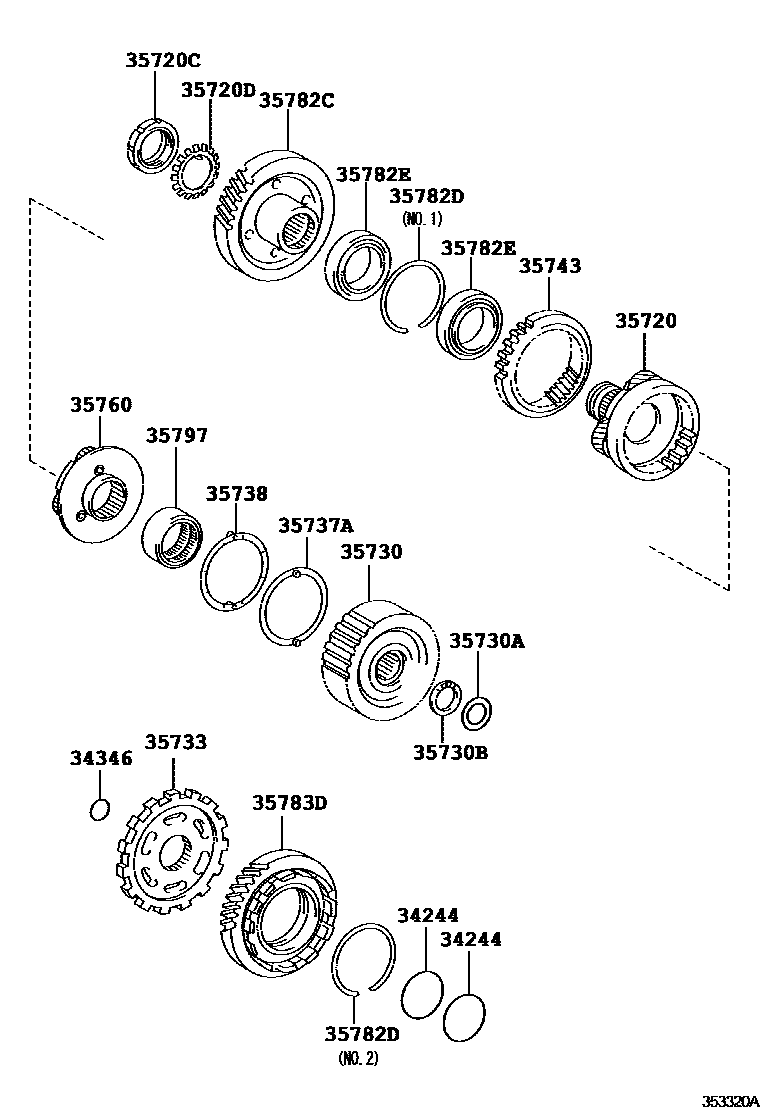

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1U140E,U241E 0002 1U151E

34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL

main34244-21010iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200611

34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL

main34346-21011iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200203-200608

main34346-28010iMCV30..5FC200404-200611

sub34346-21011

35720GEAR ASSY, FRONT PLANETARY

main35720-21010iACV3#..4FC200203-200208

sub35720-44010

main35720-21020iMCV30200203-200208

sub35720-21030

main35720-21030iMCV30..(IDN,TAIW,VN)..4FC200208-200501

sub35720-21031

main35720-21031iMCV30..4FC200501

sub35720-28070

main35720-28070iMCV30..5FC200404

main35720-44010iACV3#..4FC200208-200407

sub35720-28080

35720CNUT (FOR FRONT PLANETARY GEAR)

main90179-46001iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407

35720DWASHER (FOR FRONT PLANETARY GEAR)

main90209-46001iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407

35730GEAR ASSY, REAR PLANETARY SUN

main35730-21010iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407

sub35730-28020

main35730-33010iMCV30..5FC200404-200601

sub35730-33011

main35730-33011iMCV30..5FC200601

35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)

main35788-33010iMCV30..5FC200404

main35789-21010iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-31007iMCV30..5FC200404

NO.1

main90374-33003iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407

main90374-55002iMCV30..5FC200404

NO.2,T=3.4

main90374-55003iMCV30..5FC200404

NO.2,T=3.7

35733GEAR, PARKING LOCK

main35733-21010iMCV30..TH200203-200407

main35733-32030iACV30..4FC200203-200407

main35733-32040iACV31200203-200407

main35733-48010iMCV30..5FC200404

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-21010iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407

main35737-28020iMCV30..5FC200404

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35737-21010iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407

main35738-33030iMCV30..5FC200404

35743GEAR, FRONT PLANETARY RING

main35743-21010iACV30..(MA,PHL,TH)..4FC;ACV31,MCV30..(MA,TAIW,TH)..4FC200203-200407

sub35743-28010

main35743-28010iMCV30..5FC200404

35760GEAR ASSY, REAR PLANETARY

main35760-21020iACV3#,MCV30..4FC200203-200208

sub35760-33030

main35760-33030iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200208-200407

sub35760-28010

main35760-33040iMCV30..5FC200404

sub35760-42010

sub35737-42010

35782CGEAR, COUNTER DRIVE

main35782-21010iMCV30..(IDN,TAIW,VN)..4FC200203-200407

sub35782-28010

main35782-32031iACV31..MA,TAIW,TH;ACV30..(MA,PHL,TH)..4FC200203-200407

sub35782-28020

main35782-33020iMCV30..5FC200404

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-84001iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200608

NO.1

main90520-87004iMCV30..5FC200404-200611

NO.1

main90520-89002iACV3#,MCV30..4FC200203-200206

NO.2

sub90520-89004

main90520-89004iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200206-200611

NO.2

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-59001iMCV30..5FC200404

main90366-60009iMCV30..(IDN,TAIW,VN)..4FC200203-200407

35783DGEAR, COUNTER DRIVEN

main35783-21010iMCV30..(IDN,TAIW,VN)..4FC200203-200407

sub35783-21020

main35783-21020iMCV30..TH200405

sub35783-28010

main35783-32031iACV31..MA,TAIW,TH;ACV30..(MA,PHL,TH)..4FC200203-200502

sub35783-33040

main35783-33030iMCV30..5FC200404

main35783-33040iACV3#..4FC200502

sub35783-28020

35797RACE, 1 WAY CLUTCH INNER

main35797-21010iACV3#..4FC;MCV30..(IDN,TAIW,VN)..4FC200203-200407
