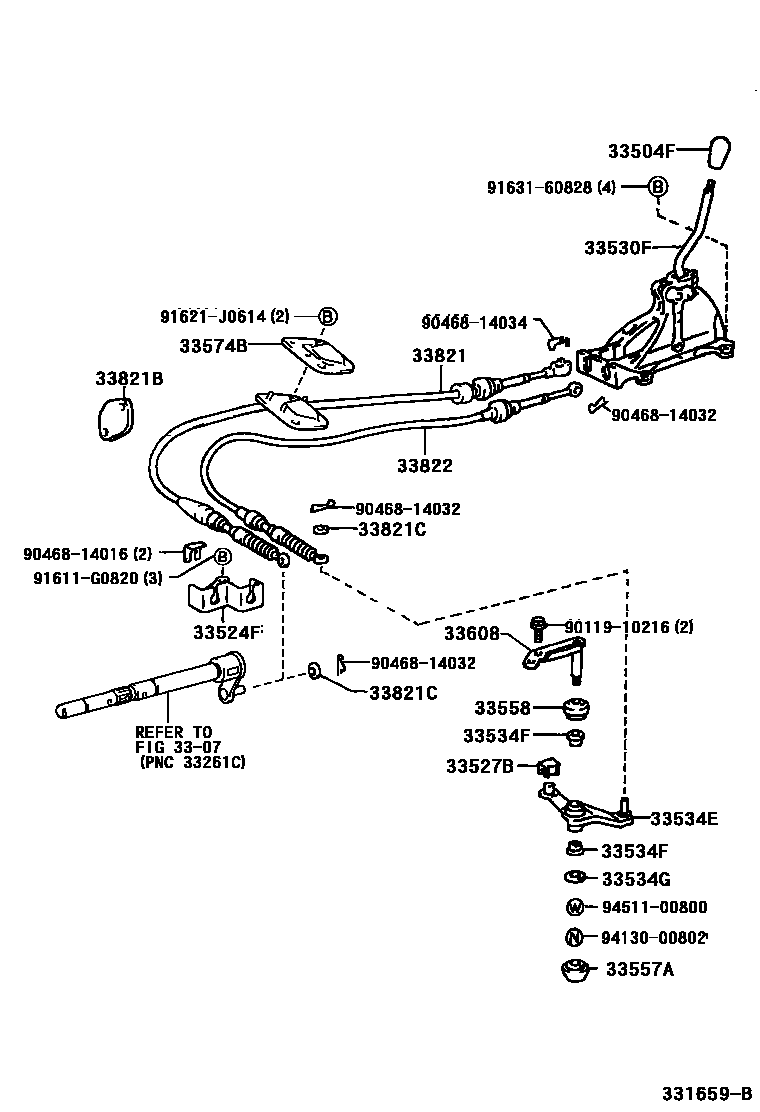

SHIFT LEVER & RETAINER
3307
33504FKNOB SUB-ASSY, SHIFT LEVER
WOOD KNOB,BLACK,TRIM2#
WOOD KNOB,SANDAL WOOD,TRIM0#
SANDAL WOOD,TRIM4#
sub33542-33190
SANDAL WOOD,TRIM4#
sub33542-33210
33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)
33527BBUSH (FOR CONTROL SHIFT LEVER)
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33534ECRANK, SELECTING BELL, NO.2
33534FBUSH (FOR SELECTING BELLCRANK NO.2)
33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
33557ACOVER, SELECTING BELLCRANK DUST, NO.1
33558COVER, SELECTING BELLCRANK DUST, NO.2
33574BRETAINER, SHIFT CABLE GROMMET, NO.2
33608SUPPORT SUB-ASSY, SELECTING BELLCRANK
33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821BGROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE)
33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
OD=30
33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
9011910216
main90119-10216
9046814016
main90468-14016
9046814032
main90468-14032
9046814034
main90468-14034
91611G0820
main91611-G0820
91621J0614
main91621-J0614
9163160828
main91631-60828
9413000802
main94130-00802
9451100800
main94511-00800
25 parts on this diagram · 6 diagrams in section
