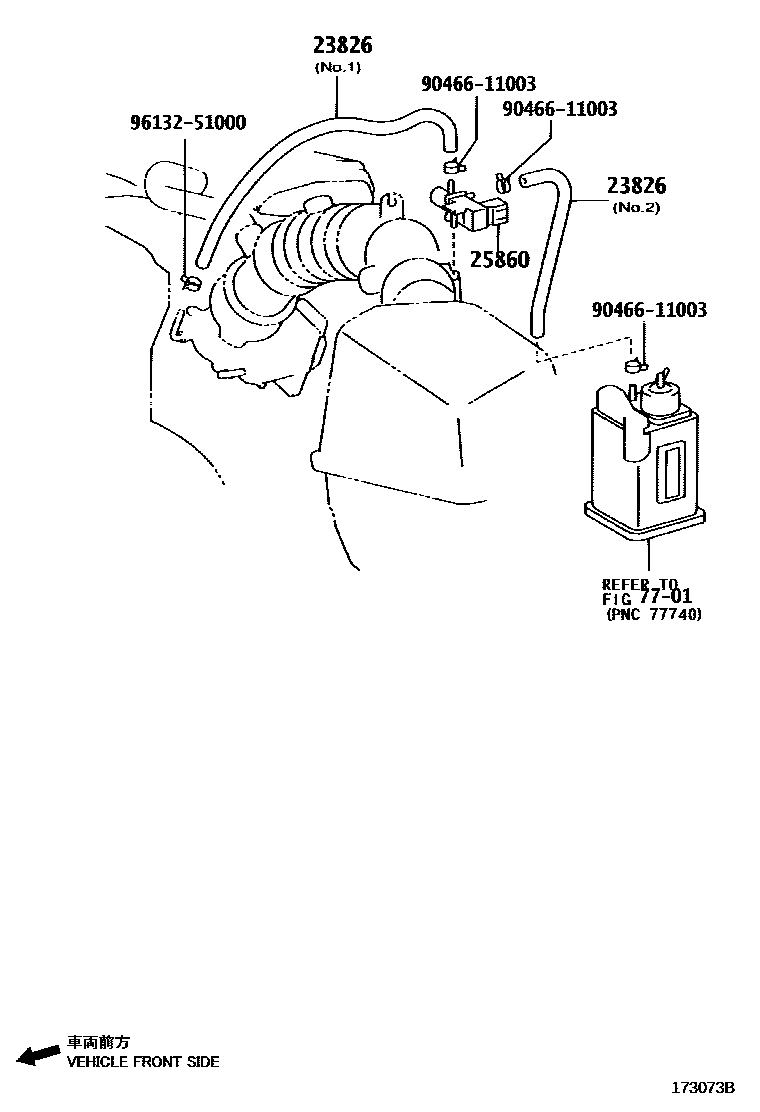

VACUUM PIPING

0001 1 0002 1 0003 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0A060i1MZFE..MCV30..(IDN,TAIW,VN)..4FC200203-200407

main23826-0H060i1AZFE..ACV31..TAIW200203-200405

NO.2

main23826-0H060i1AZFE..ACV31..MA,TAIW;2AZFE..ACV30..MA,PHL,VN200404

FOR TAIWAN,NO.2

main23826-0H070i1AZFE..ACV31..TAIW200203-200405

NO.1

main23826-0H080i1AZFE,2AZFE..ACV3#..MA,PHL,VN200203

NO.1

main23826-0H100i1AZFE,2AZFE..ACV3#..MA,PHL,VN200203

NO.2

main23826-20080i1MZFE..MCV30..TH200405

main23826-20091i1MZFE..MCV30..5FC200404

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28080i2AZFE..ACV30..(IDN,VN)..5F;1AZFE,2AZFE..ACV3#..(20E,20G,20J,24G,24Q,24V)..4FC200203

main25860-62010i1MZFE..MCV30..VN200203-200407

7701

9046611003

main90466-11003

9613251000

main96132-51000

5 parts on this diagram · 3 diagrams in section
