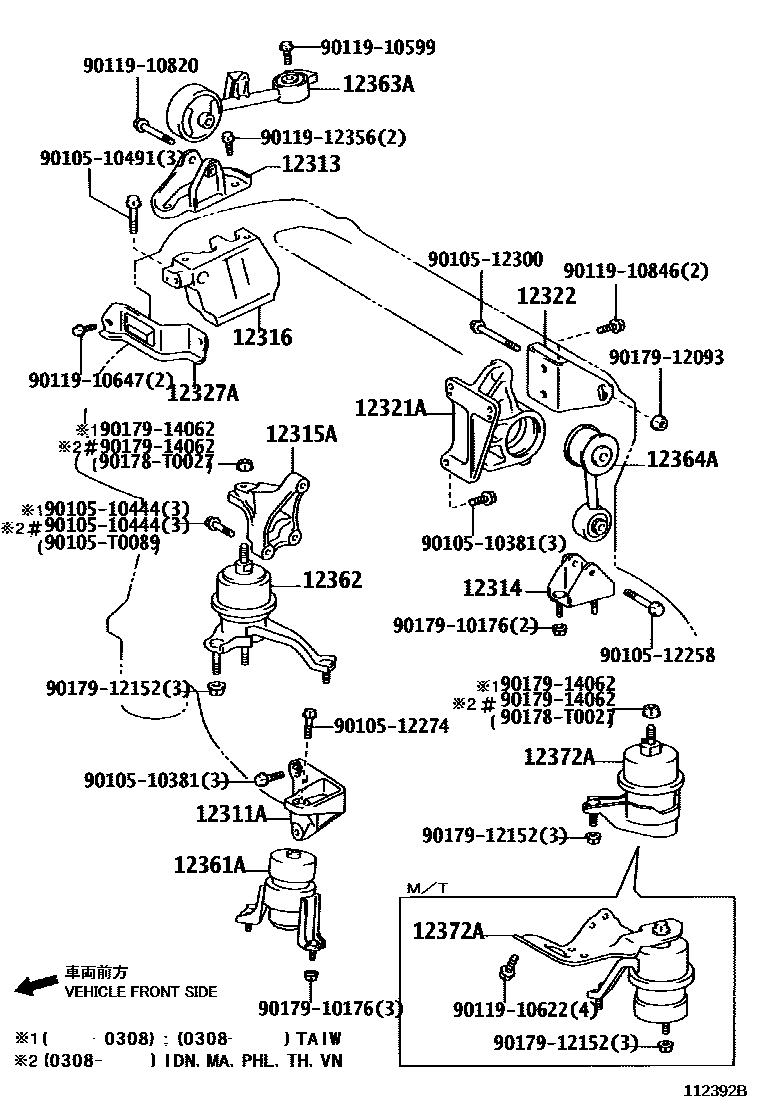

MOUNTING

0001 1 0002 1 0003 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0A060i1MZFE..MCV30..(IDN,TAIW,VN)..4FC200203-200407

main12311-0H020i1AZFE..ACV31..TAIW200203-200405

main12311-0H030i2AZFE..ACV30..(IDN,VN)..5F;1AZFE,2AZFE..ACV3#..(20E,20G,24G,24Q,24V)..(IDN,MA,PHL,TH)..4FC200203

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-0A050i1MZFE..MCV30..(IDN,TAIW,VN)..4FC200203-200407

main12313-0H020i1AZFE..ACV31..MA,TAIW,TH;2AZFE..ACV30..MA,PHL,TH,VN200203

12314BRACKET, ENGINE LATERAL CONTROL ROD

main12314-28010i2AZFE..ACV30..5F200205

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0A020i1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH200203-200407

NO.2

main12315-0H020i1AZFE..ACV31..TAIW200203-200405

main12315-0H030i2AZFE..ACV30..(IDN,VN)..5F;1AZFE,2AZFE..ACV3#..(20E,20G,24G,24Q,24V)..(IDN,MA,PHL,TH)..4FC200203

main12315-20020i1MZFE..MCV30..IDN200203-200407

NO.1

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-0H020i1AZFE..ACV31..TAIW200203-200405

main12316-0H030i2AZFE..ACV30;1AZFE..ACV31..RHD200203

main12316-20020i1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH200203-200407

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-28020i2AZFE..ACV30..(IDN,VN)..5F200205

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-28010i2AZFE..ACV30..(IDN,VN)..5F200205

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-0A010i1MZFE..MCV30..(IDN,TAIW,VN)..4FC200203-200407

main12327-0H020i1AZFE..ACV31..TAIW200203-200405

main12327-0H030i2AZFE..ACV30..(IDN,VN)..5F;1AZFE,2AZFE..ACV3#..(20E,20G,24G,24Q,24V)..(IDN,MA,PHL,TH)..4FC200203

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-20120i1MZFE..MCV30..(IDN,TAIW,VN)..4FC200203-200407

main12361-28110i2AZFE..ACV30..(IDN,VN)..5F;1AZFE,2AZFE..ACV3#..(20E,20G,20J,24G,24Q,24V)..4FC200203

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-20010i1MZFE..MCV30..(IDN,TAIW,VN)..4FC200203-200407

main12362-28100i1AZFE..ACV31..MA,TAIW,TH;2AZFE..ACV30..MA,PHL,TH,VN200203

12363AROD, ENGINE MOVING CONTROL

main12363-0A070i1MZFE..MCV30..(IDN,TAIW,VN)..4FC200203-200407

main12363-0H030i1AZFE..ACV31..MA,TAIW,TH;2AZFE..ACV30..MA,PHL,TH,VN200203-200511

sub12363-0H031

main12363-0H031i1AZFE,2AZFE..ACV3#200512

12364AROD, ENGINE LATERAL CONTROL

main12364-28010i2AZFE..ACV30..(IDN,VN)..5F200205

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12306-28040i2AZFE..ACV30..(IDN,VN)..5F200205

main12372-0H040i1AZFE..ACV31..TAIW200203-200405

main12372-20060i1MZFE..MCV30..VN..5FC;1MZFE..MCV30..PHL,TAIW,TH200203-200407

main12372-28020i1AZFE,2AZFE..ACV3#..(20E,20G,24G,24Q,24V)..(IDN,MA,PHL,TH)..4FC200203

9010510381

main90105-10381

9010510444

main90105-10444

9010510491

main90105-10491

9010512258

main90105-12258

9010512274

main90105-12274

9010512300

main90105-12300

90105T0089

main90105-T0089

9011910599

main90119-10599

9011910622

main90119-10622

9011910647

main90119-10647

9011910820

main90119-10820

9011910846

main90119-10846

9011912356

main90119-12356

90178T0027

main90178-T0027

9017910176

main90179-10176

9017912093

main90179-12093

9017912152

main90179-12152

9017914062

main90179-14062

31 parts on this diagram · 3 diagrams in section
