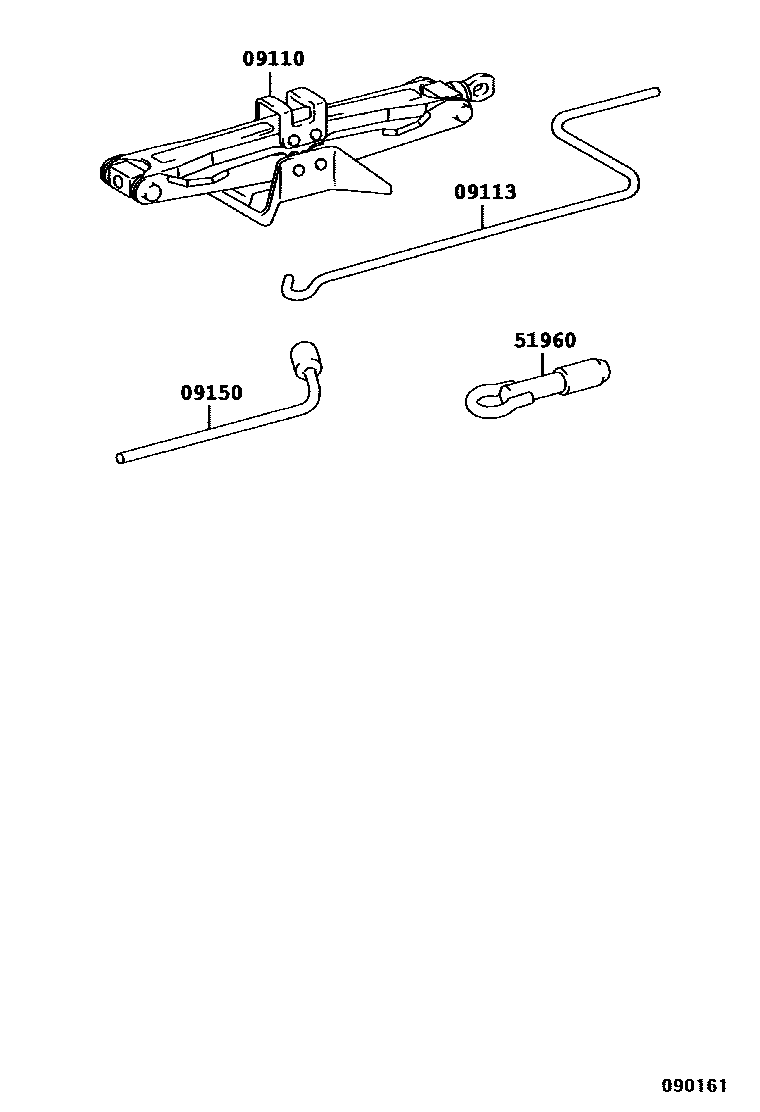

STANDARD TOOL

09110JACK ASSY

main09111-06040iACV31,MCV30..TAIW200203-200407

main09111-06070iMCV30..IDN,VN;ACV30..(IDN,VN)..5F;ACV3#..(IDN,PHL,TH)..4FC200203-200611

sub09111-06071

main09111-06080iACV3#..MA200206-200407

main09111-0M010iACV31,MCV30..TAIW200408-200605

09113HANDLE, JACK

main09113-06090iACV3#,MCV30..RHD200303-200405

main09113-06100iACV30,MCV30..IDN200303-200405

sub09113-06090

main09113-06110iACV31,MCV30..TAIW200412

main09113-20040iACV31,MCV30..TAIW200404-200412

sub09113-20050

main09113-33010iACV30,MCV30..PHL,VN200203-200407

09150WRENCH, HUB NUT BOX

main09150-0A010iACV3#,MCV30..RHD200203-200407

main09150-0A020iACV30,MCV30..IDN200205-200405

main09150-16010iACV31,MCV30..TAIW200203-200404

main09150-40010iACV3#,MCV30..PHL,VN200206-200407

51960HOOK ASSY, FRONT

main51960-06010iACV30;ACV31..RHD;MCV30..PHL,TH;MCV30..VN..5FC200405

main51960-33010iACV3#..4FC;ACV30..(IDN,VN)..5F;MCV30..(IDN,TAIW,VN)..4FC200203-200407

4 parts on this diagram · 1 diagram in section
