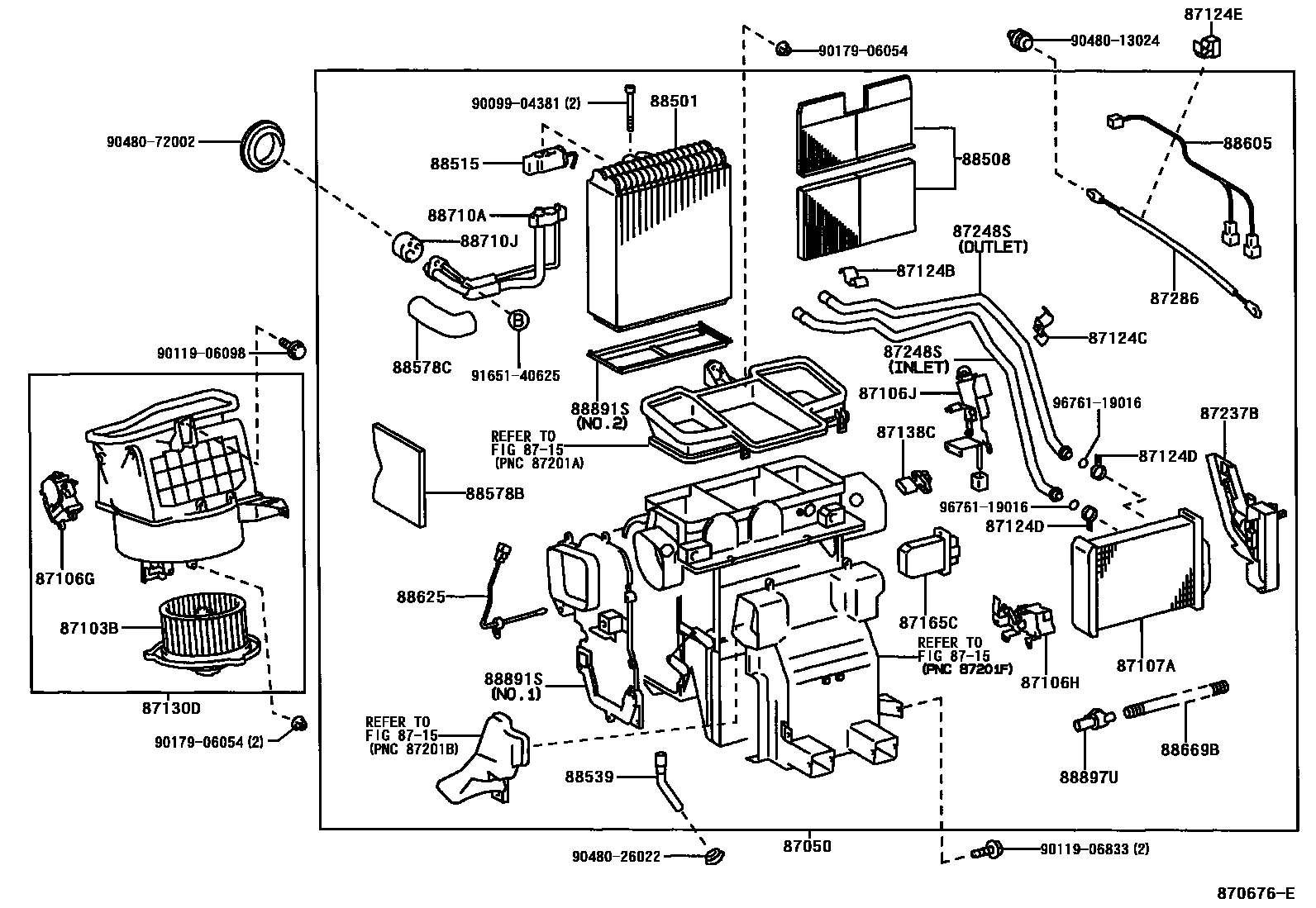

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1O RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-33420iMCV20..ARL199608

main87050-33460iMCV20..GCC199810

sub87050-33400

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-33030iMCV20..GCC199810-199811

main87103-33031iMCV20..GCC199811-199908

main87103-33040iMCV20..ARL199808-199811

main87103-33041iMCV20..ARL199811-199908

main87103-33050iMCV20..GCC199908

main87103-33060iMCV20..ARL199908

main87103-44010iMCV20199608-199808

87106GSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-33170iMCV20..GCC199810

main87106-33190iMCV20..ARL199608

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-33150iMCV20..GCC199810

main87106-33160iMCV20..ARL199608

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-33130iMCV20..GCC199810

main87106-33140iMCV20..ARL199608

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33050iMCV20..ARL199608

main87107-33070iMCV20..GCC199810

87124BCLAMP, HEATER

main87124-33020iMCV20..GCC199810

main87124-33040iMCV20..ARL199608

87124CCLAMP, HEATER

main87124-33030iMCV20..GCC199810

main87124-33040iMCV20..ARL199608

87124DCLAMP, HEATER, NO.3

main87124-35040×2iMCV20199608

87124ECLAMP, HEATER

main87124-33010iMCV20..ARL199608

87130DBLOWER ASSY

main87130-33110iMCV20..GCC199810-199908

main87130-33111iMCV20..GCC199908

main87130-33130iMCV20..ARL199608-199908

main87130-33131iMCV20..ARL199908

87138CRESISTOR, BLOWER

main87138-33040iMCV20199608

8715

87165CCONTROL, BLOWER MOTOR

main87165-32010iMCV20199807

main87165-33010iMCV20199608-199807

87237BCOVER, HEATER PIPING

main87237-33020iMCV20..ARL199608

87248SPIPE, FRONT HEATER RADIATOR WATER

main87156-33010iMCV20..GCC199810

INLET

main87156-33020iMCV20..GCC199810

OUTLET

main87156-33030iMCV20..ARL199608

INLET

main87156-33040iMCV20..ARL199608

OUTLET

87286CABLE, CONTROL

main87286-33040iMCV20..GCC199810

main87286-33050iMCV20..ARL199608

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-33070iMCV20..ARL199608

main88501-33080iMCV20..GCC199810

88508FILTER SUB-ASSY, CLEAN AIR

main88880-33040iMCV20..GCC199810-200107

main88880-33060iMCV20..ARL199608-200107

88515VALVE, COOLER EXPANSION

main88515-20100iMCV20199608

sub88515-22240

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-33010iMCV20..GCC199810

main88539-33030iMCV20..ARL199608

88578BPACKING, COOLING UNIT, NO.1

main88578-33020iMCV20199608

88578CPACKING, COOLING UNIT, NO.2

main88578-33040iMCV20..GCC199810

main88578-33070iMCV20..ARL199608

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-33070iMCV20..GCC199810

main88605-33080iMCV20..ARL199608

88625THERMISTOR, COOLER, NO.1

main88625-33060iMCV20..ARL199608

main88625-33070iMCV20..GCC199810

88669BHOSE, COOLER AIR

main88669-33050iMCV20199608

sub88669-28030

88710ATUBE ASSY, AIR CONDITIONER

main88710-33100iMCV20..GCC199810

main88710-33110iMCV20..ARL199608

88710JTUBE, AIR CONDITIONER CONNECTOR

main88710-33160iMCV20..ARL199608

main88710-33170iMCV20..GCC199810

88891SCOVER, COOLER, NO.1

main88891-33011iMCV20..ARL199608

NO.1

main88891-33021iMCV20..GCC199810

NO.1

main88891-33030iMCV20199608

NO.2

88897UPIPE, ASPIRATOR

main88897-12210iMCV20199608

9009904381

main90099-04381

9011906098

main90119-06098

9011906833

main90119-06833

9017906054

main90179-06054

9048013024

main90480-13024

9048026022

main90480-26022

9048072002

main90480-72002

9165140625

main91651-40625

9676119016

main96761-19016

39 parts on this diagram · 3 diagrams in section
