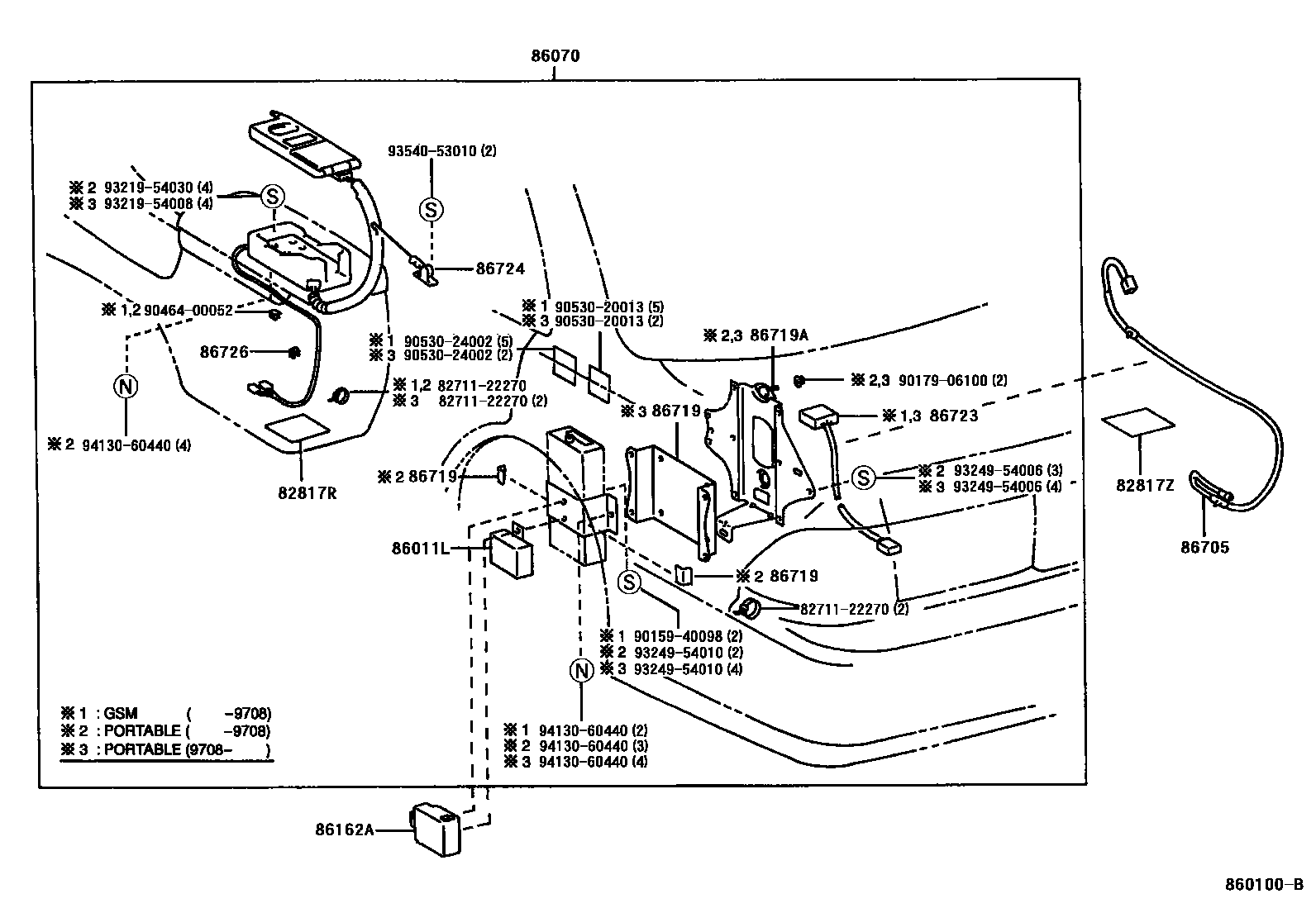

TELEPHONE & MAYDAY

82817RPROTECTOR, WIRING HARNESS, NO.16

main82817-87013iMCV20..ARL199608

82817ZPROTECTOR, WIRING HARNESS, NO.2

main82817-12400iMCV20199608

86011LFILTER, NOISE

main90980-05281iMCV20..ARL199608

86070MOBILEPHONE & ACCESSORY ASSY

main86075-33040iMCV20199608-199708

PORTABLE TYPE

main86075-33050iMCV20199608-199708

main86075-33060iMCV20..ARL199708

PORTABLE TYPE

86162ARELAY, SPEAKER

main86162-50010iMCV20199608-199707

86705CORD SUB-ASSY, TELEPHONE ANTENNA

main86705-33010iMCV20199608

86719BRACKET, TELEPHONE

main86719-30090iMCV20..ARL199708

main86719-50100×2iMCV20199608-199708

86719ABRACKET, TELEPHONE NO.1

main86719-33030iMCV20..ARL199608

86723WIRE, MOBILEPHONE

main86723-50100iMCV20..ARL199608

86724GUIDE, CURL CORD

main86724-33010iMCV20..ARL199608

86726COVER, MOBILEPHONE

main86726-40010iMCV20..ARL199608

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9015940098

main90159-40098

9017906100

main90179-06100

9046400052

main90464-00052

9053020013

main90530-20013

9053024002

main90530-24002

9321954008

main93219-54008

9321954030

main93219-54030

9324954006

main93249-54006

9324954010

main93249-54010

9354053010

main93540-53010

9413060440

main94130-60440

23 parts on this diagram · 1 diagram in section
