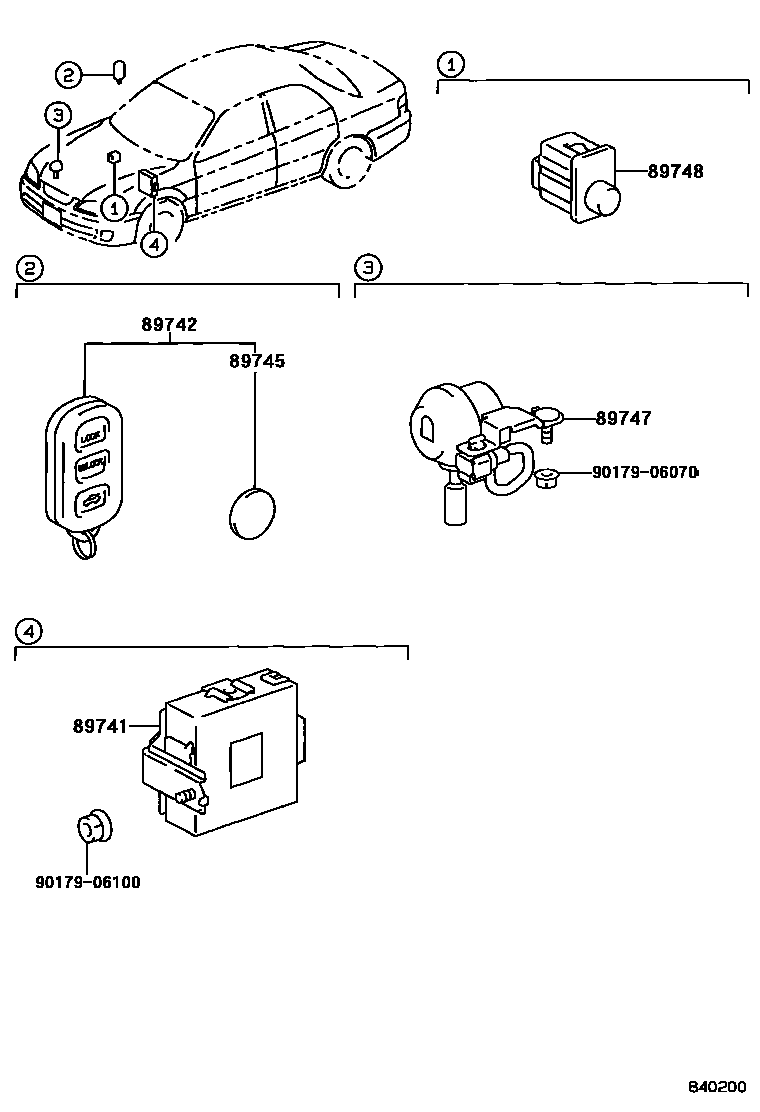

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1 0004 1

89741RECEIVER, DOOR CONTROL

main89741-33160iMCV20199608-199908

main89741-33220iMCV20..ARL199608-199908

HONG KONG SPEC

main89741-33230iMCV20..ARL199608-199908

SINGAPORE SPEC

main89741-33290iMCV20..ARL199908

HONG KONG SPEC

main89741-33300iMCV20..ARL199908

SINGAPORE SPEC

main89741-33310iMCV20199908

89742TRANSMITTER, DOOR CONTROL

main89742-33110iMCV20199608-199908

main89742-33160iMCV20..ARL199608-199908

HONG KONG SPEC

main89742-33170iMCV20..ARL199608-199908

SINGAPORE SPEC

89745BATTERY, TRANSMITTER

main89745-40010iMCV20199908

main89745-50010iMCV20199608-199908

sub89745-71010

89747BUZZER, WIRELESS DOOR LOCK

main89747-33020iMCV20199608

89748CONTROLLER, WIRELESS DOOR LOCK BUZZER

main89748-33020iMCV20199608

9017906070

main90179-06070

6 parts on this diagram · 4 diagrams in section
