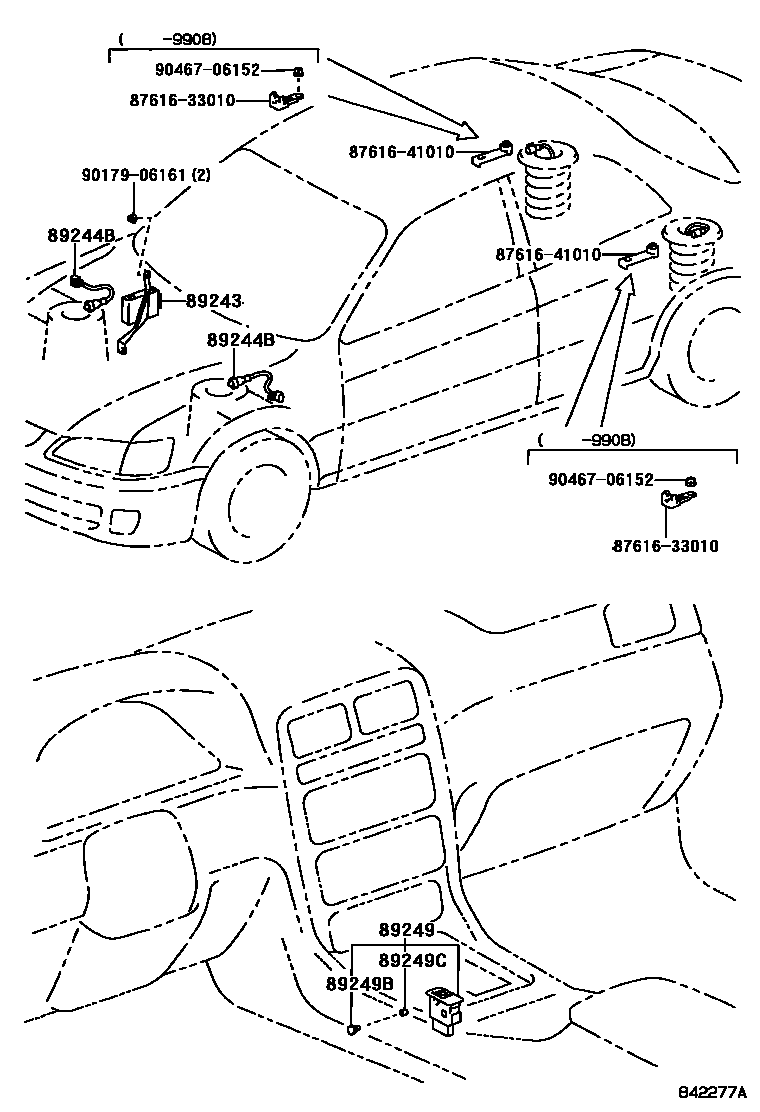

ELECTRONIC MODULATED SUSPENSION

89243COMPUTER, ABSORBER CONTROL

main89243-33041iMCV20..GCC199810-199908

sub89243-33042

main89243-33042iMCV20..GCC199908

89244BWIRE, ABSORBER CONTROL, FRONT

main89244-33030iMCV20..GCC199810

89249SWITCH, ABSORBER CONTROL

main89249-33020iMCV20..GCC199810

89249BBULB, ABSORBER CONTROL SWITCH

main84999-10700iMCV20..GCC199810

89249CCAP BULB, ABSORBER CONTROL SWITCH

main84998-10770iMCV20..GCC199810

8761633010CLAMP, COOLING UNIT CASE

main87616-33010

8761641010CLAMP, COOLING UNIT CASE

main87616-41010

9017906161

main90179-06161

9046706152

main90467-06152

9 parts on this diagram · 1 diagram in section
