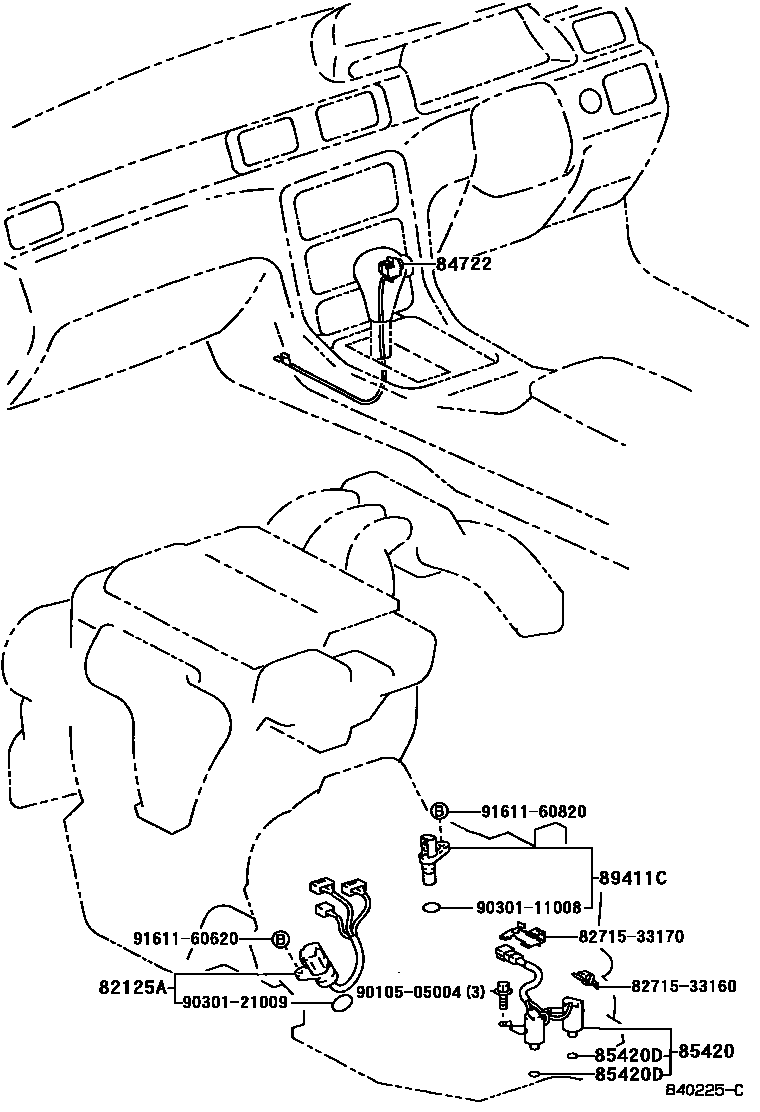

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

82125AWIRE, TRANSMISSION

main82125-33010iMCV20199608

84722SWITCH, TRANSMISSION CONTROL

main84722-33050-C0iMCV20..ARL199908

BLACK,TRIM2#

main84722-33050-E0iMCV20..ARL199608

IVORY,TRIM0#

main84722-33050-G0iMCV20..ARL199608

SAGE,TRIM6#

main84722-33060-C0iMCV20..GCC199810

BLACK,TRIM2#

main84722-33060-E0iMCV20..GCC199810

IVORY,TRIM0#

main84722-33060-G0iMCV20..GCC199810

SAGE,TRIM6#

85420SOLENOID ASSY, TRANSMISSION

main85420-33010iMCV20199608

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×2iMCV20199608

89411CSENSOR, SPEED

main89411-33010iMCV20199608

TOYOTA

main89413-24010iMCV20199608

AISIN

8271533160BRACKET,WIRING HARNESS CLAMP

main82715-33160

8271533170BRACKET,WIRING HARNESS CLAMP

main82715-33170

9010505004

main90105-05004

9030111008

main90301-11008

9030121009

main90301-21009

9161160620

main91611-60620

9161160820

main91611-60820

12 parts on this diagram · 2 diagrams in section
