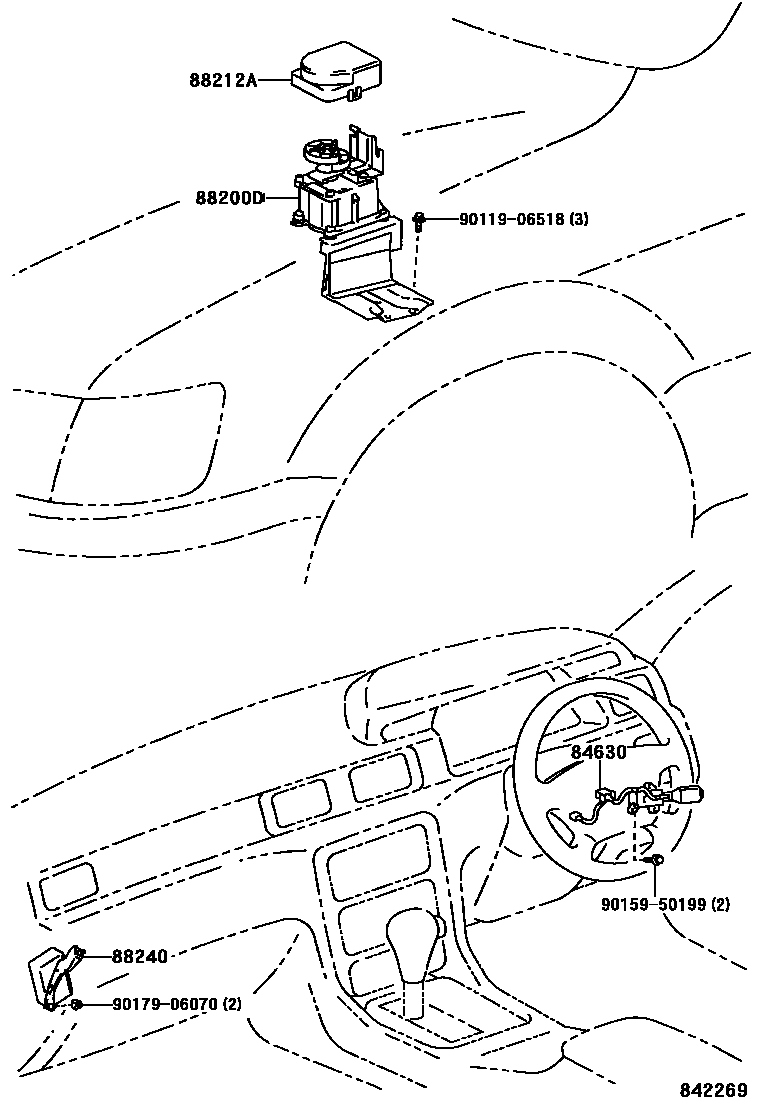

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-06030iMCV20199608-199805

main84630-0W010iMCV20199710

L=115,REFER TO ILLUSTRAITION,(L)

main84630-33010iMCV20..ARL199808-199908

L=125,REFER TO ILLUSTRAITION

main84630-33060iMCV20199808

L=115,REFER TO ILLUSTRAITION,(J)

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-33030iMCV20199608

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-33010iMCV20199608

88240COMPUTER ASSY, CRUISE CONTROL

main88240-33100iMCV20199608-199808

main88240-33140iMCV20..GCC199810

main88240-33150iMCV20..ARL199808

9011906518

main90119-06518

9015950199

main90159-50199

9017906070

main90179-06070

7 parts on this diagram · 2 diagrams in section
