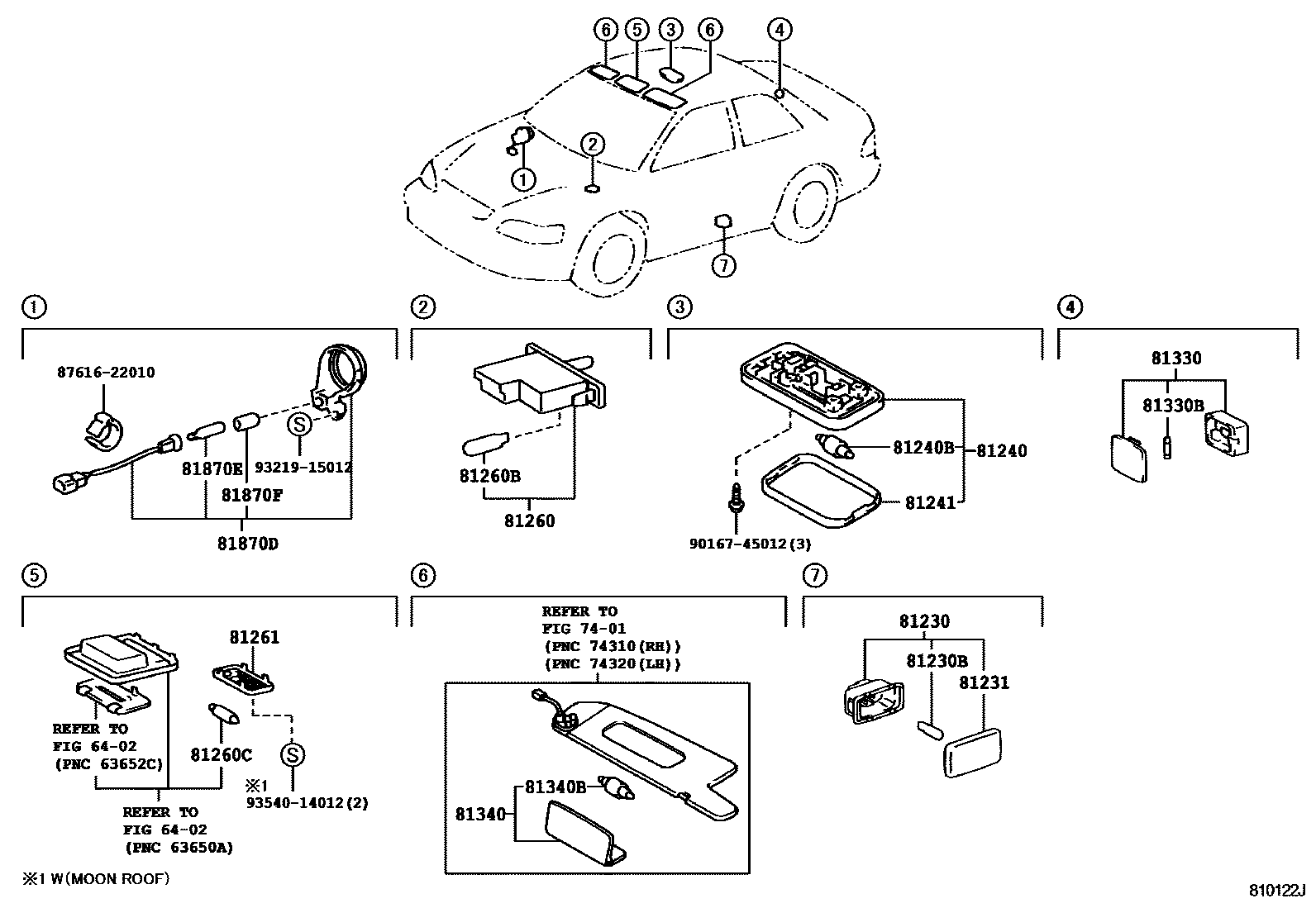

INTERIOR LAMP
6402
7401
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81231LENS, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
81240BBULB, ROOM LAMP, NO.1
12V 8W
81241LENS, ROOM LAMP, NO.1
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 8W
81261LENS AND COVER, MAP LAMP
W(MOON ROOF)
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3W
81340LAMP ASSY, VANITY
IVORY,TRIM0#,LH
BLUE GRAY,TRIM2#,LH
SAGE,TRIM6#,LH
IVORY,TRIM0#,RH
BLUE GRAY,TRIM2#,RH
SAGE,TRIM6#,RH
81340BBULB (FOR VANITY LAMP)
12V 1.5W
81870EBULB, KEY CYLINDER LAMP
14V 1.4W
81870FCAP, KEY CYLINDER LAMP BULB
8761622010CLAMP, COOLING UNIT CASE
main87616-22010
9016745012
main90167-45012
9321915012
main93219-15012
9354014012
main93540-14012
23 parts on this diagram · 1 diagram in section
