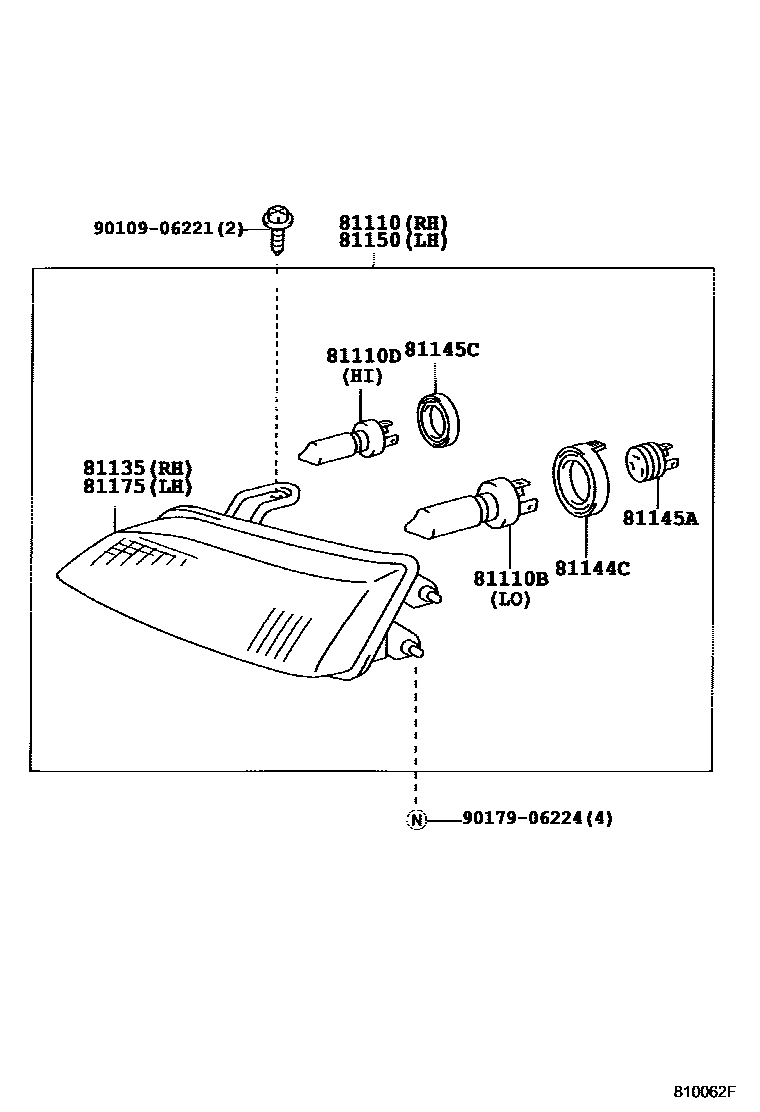

HEADLAMP

0001 1 0003 1 0004 1

81110HEADLAMP ASSY, RH

main81110-33230iMCV20..ARL199608

main81110-33300iMCV20..GCC199810-199908

main81110-33380iMCV20..GCC199908

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13059×2iMCV20199608-199908

12V 55W,HALOGEN

sub90981-13063

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2iMCV20199608

12V 65W

sub90981-13046

81135UNIT ASSY, HEADLAMP, RH

main81130-33230iMCV20..ARL199608

main81130-33300iMCV20..GCC199810-199908

main81130-33380iMCV20..GCC199908-199910

main81140-33380iMCV20..GCC199910

81144COVER, HEADLAMP, NO.1

main90075-99136×2iMCV20..GCC199908

81144CCOVER, HEADLAMP SOCKET

main90075-65002×2iMCV20199608-199908

81145AADAPTER ASSY

main90075-99117×2iMCV20199608-199908

81145CCOVER, HEADLAMP SOCKET, NO.2

main90075-65006×2iMCV20199608-199908

81150HEADLAMP ASSY, LH

main81150-33230iMCV20..ARL199608

main81150-33290iMCV20..GCC199810-199908

main81150-33370iMCV20..GCC199908

81175UNIT ASSY, HEADLAMP, LH

main81070-33370iMCV20..GCC199910

main81170-33230iMCV20..ARL199608

main81170-33290iMCV20..GCC199810-199908

main81170-33370iMCV20..GCC199908-199910

9010906221

main90109-06221

9017906224

main90179-06224

12 parts on this diagram · 3 diagrams in section
