E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

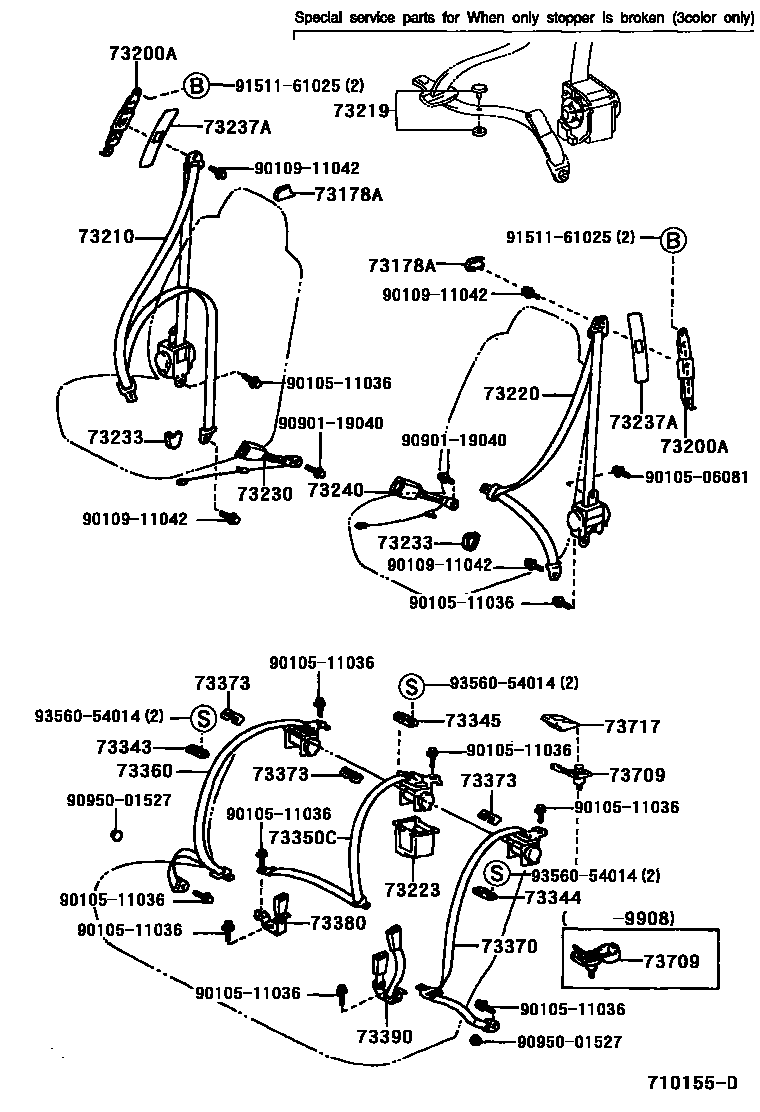

Parts diagram
73178ACAP, SEAT BELT ANCHOR COVER
main73178-33010-A0×2i199608-200008
IVORY,TRIM0#
main73178-33010-B1×2i199908-200008
BLUE GRAY,TRIM2#
main73178-33010-G0×2i199608-200008
SAGE,TRIM6#
main73178-33020-A0×2i200008
IVORY,TRIM0#
main73178-33020-B0×2i200008
BLUE GRAY,TRIM2#
main73178-33020-G0×2i200008
SAGE,TRIM6#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-33020-A0×2i199608-199808
IVORY,TRIM0#
main73200-33020-G0×2i199608-199808
SAGE,TRIM6#
main73200-33030-A0×2i199808
IVORY,TRIM0#
main73200-33030-B0×2i199908
BLUE GRAY,TRIM2#
main73200-33030-G0×2i199808
SAGE,TRIM6#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-33080-A1i199608-199708
IVORY,TRIM0#
main73210-33080-G0i199608-199708
DARK AGATE,TRIM6#
main73210-33170-A0i199708-199802
IVORY,TRIM0#
main73210-33170-G0i199708-199802
DARK AGATE,TRIM6#
main73210-33171-A0i199808-200008
IVORY,TRIM0#
main73210-33171-C0i199908-200008
BLACK,TRIM2#
main73210-33171-G0i199808-200008
DARK AGATE,TRIM6#
main73210-33172-A0i200008
IVORY,TRIM0#
main73210-33172-C0i200008
BLACK,TRIM2#
main73210-33172-G0i200008
DARK AGATE,TRIM6#
main73210-33200-A0i199802-199808
IVORY,TRIM0#
main73210-33200-G0i199802-199808
DARK AGATE,TRIM6#
73219STOPPER, TONGUE PLATE
main73219-33010i200009-200107
BLACK
main73219-33020i200009-200107
GRAY
main73219-33030i200009-200107
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-33080-A1i199608-199708
IVORY,TRIM0#
main73220-33080-G0i199608-199708
DARK AGATE,TRIM6#
main73220-33160-A0i199708-199802
IVORY,TRIM0#
main73220-33160-G0i199708-199802
DARK AGATE,TRIM6#
main73220-33161-A0i199808-200008
IVORY,TRIM0#
sub73220-33210
main73220-33161-C0i199908-200008
BLACK,TRIM2#
sub73220-33210
main73220-33161-G0i199808-200008
DARK AGATE,TRIM6#
sub73220-33210
main73220-33190-A0i199802-199808
IVORY,TRIM0#
main73220-33190-G0i199802-199808
DARK AGATE,TRIM6#
main73220-33212-A0i200008
IVORY,TRIM0#
main73220-33212-C0i200008
BLACK,TRIM2#
main73220-33212-G0i200008
AGATE,TRIM6#
73223COVER, SEAT BELT RETRACTOR
main73223-33010i199608
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-33200-A0i199608
IVORY,TRIM0#
main73230-33200-C0i199908
BLACK,TRIM2#
main73230-33200-G0i199608
DK.SAGE,TRIM6#
main73230-33210-A0i199810
IVORY,TRIM0#
main73230-33210-C0i199810
BLACK,TRIM2#
main73230-33210-G0i199810
DK.SAGE,TRIM6#
73233COVER, LAP BELT OUTER ANCHOR
main73233-33010-A0×2i199608
IVORY,TRIM0#
main73233-33010-C0×2i199908
BLACK,TRIM2#
main73233-33010-G0×2i199608
DK.SAGE,TRIM6#
73237ACOVER, SHOULDER BELT ANCHOR
main73237-33010-A0×2i199608
IVORY,TRIM0#
main73237-33010-B0×2i199810-199908
BLUE GRAY,TRIM2#
main73237-33010-G0×2i199608
SAGE,TRIM6#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-33210-A0i199608
IVORY,TRIM0#
main73230-33210-C0i199908
BLACK,TRIM2#
main73230-33210-G0i199608
DK.SAGE,TRIM6#
main73240-33010-A0i199810
IVORY,TRIM0#
main73240-33010-C0i199810
BLACK,TRIM2#
main73240-33010-G0i199810
DK.SAGE,TRIM6#
73343GUIDE, REAR SEAT SHOULDER BELT, RH
main73343-50020-A0i199608
IVORY,TRIM0#
main73343-50020-C0i199908
BLACK,TRIM2#
main73343-50020-G2i199608
SAGE,TRIM6#
73344GUIDE, REAR SEAT SHOULDER BELT, LH
main73344-50010-A0i199608
IVORY,TRIM0#
main73344-50010-C0i199810-199908
BLACK,TRIM2#
main73344-50010-G2i199608
SAGE,TRIM6#
73345GUIDE, REAR SEAT SHOULDER BELT, CENTER
main73345-50010-A0i199608
IVORY,TRIM0#
main73345-50010-C0i199908
BLACK,TRIM2#
main73345-50010-G1i199608
SAGE,TRIM6#
73350CBELT ASSY, REAR SEAT, OUTER CENTER
main73350-33070-A1i199608-199611
IVORY,TRIM0#
main73350-33070-G0i199608-199611
DARK AGATE,TRIM6#
main73350-33071-A1i199611-200003
IVORY,TRIM0#
main73350-33071-C0i199908-200003
BLACK,TRIM2#
main73350-33071-G0i199611-200003
DARK AGATE,TRIM6#
main73350-33072-A1i200003
IVORY,TRIM0#
main73350-33072-C0i200003
BLACK,TRIM2#
main73350-33072-G0i200003
DARK AGATE,TRIM6#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-33060-A1i199608-199808
IVORY,TRIM0#
main73360-33060-G0i199608-199808
DARK AGATE,TRIM6#
main73360-33061-A1i199808
IVORY,TRIM0#
main73360-33061-C0i199908
BLACK,TRIM2#
main73360-33061-G0i199808
DARK AGATE,TRIM6#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73360-33060-A1i199608-199808
IVORY,TRIM0#
main73360-33060-G0i199608-199808
DARK AGATE,TRIM6#
main73360-33061-A1i199808
IVORY,TRIM0#
main73360-33061-C0i199908
BLACK,TRIM2#
main73360-33061-G0i199808
DARK AGATE,TRIM6#
73373COVER, REAR SEAT SHOULDER BELT
main73373-33010-C0×3i199810-199908
BLACK,TRIM2#
main73373-33010-E0×3i199608
OAK,TRIM0#
main73373-33010-G0×3i199608
DK.SAGE,TRIM6#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-33060-A0i199608
IVORY,TRIM0#
main73380-33060-C0i199908
BLACK,TRIM2#
main73380-33060-G0i199608
DK.SAGE,TRIM6#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73480-33060-A1i199608-199611
IVORY,TRIM0#
main73480-33060-G0i199608-199611
DARK AGATE,TRIM6#
main73480-33061-A1i199611-200003
IVORY,TRIM0#
main73480-33061-C0i199810-199908
BLACK,TRIM2#
main73480-33061-G0i199611-200003
DARK AGATE,TRIM6#
main73480-33062-A1i200003
IVORY,TRIM0#
main73480-33062-C0i200003
BLACK,TRIM2#
main73480-33062-G0i200003
DARK AGATE,TRIM6#
73709BRACKET SUB-ASSY, TETHER ANCHOR
main73708-20030-C0i199608-199908
BLACK,TRIM0#,6#
main73708-50020×3i199908
73717COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
main73717-50011-C0×3i199908
BLACK,TRIM2#
main73717-50011-E2×3i199908
OAK,TRIM0#
main73717-50011-G1×3i199908
DK.SAGE,TRIM6#
9010506081
main90105-06081
9010511036
main90105-11036
9010911042
main90109-11042
9090119040
main90901-19040
9095001527
main90950-01527
9151161025
main91511-61025
9356054014
main93560-54014

28 parts on this diagram · 1 diagram in section
