FRONT SEAT & SEAT TRACK

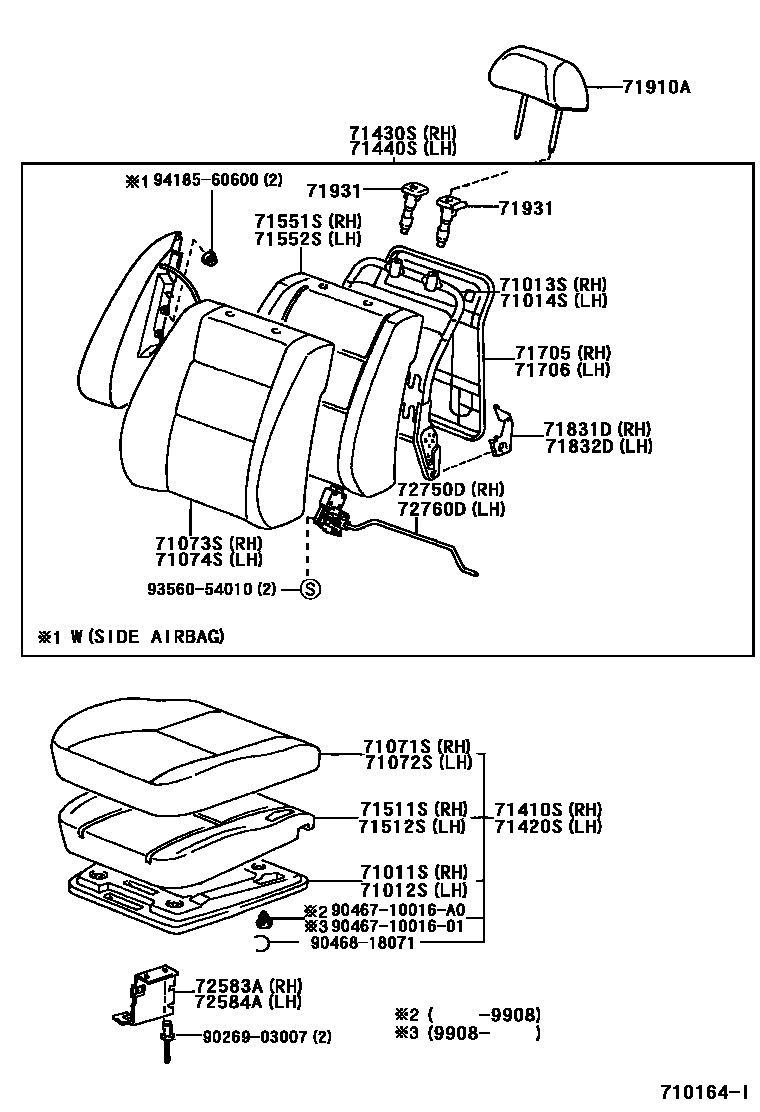

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-33010i199608
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-33010i199608
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-33090i199608-199708
main71013-33100i199608-199708
W(LEATHER SEAT)
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71013-33090i199608-199708
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-33400-A2i200012
LEATHER,IVORY,TRIM0#
sub71071-33400
main71071-33400-A3i200012
LEATHER,IVORY,TRIM0#
sub71071-33400
main71071-33400-C4i200012
LEATHER,BLACK,TRIM2#
sub71071-33400
main71071-33400-C5i200012
LEATHER,BLACK,TRIM2#
sub71071-33400
main71071-33400-G4i200012
LEATHER,DK.SAGE,TRIM6#
sub71071-33400
main71071-33400-G6i200012
LEATHER,DK.SAGE,TRIM6#
sub71071-33400
main71071-33550-G0i199608-199708
LIGHT SAGE,TRIM6#
main71071-33551-C0i199810-199908
BLACK,TRIM2#
main71071-33551-G0i199708-199908
LIGHT SAGE,TRIM6#
main71071-33552-C3i199908
BLACK,TRIM2#
main71071-33552-G2i199908-200012
DK.SAGE,TRIM6#
main71071-33560-A0i199608-199908
LEATHER,IVORY,TRIM0#
sub71071-33560
main71071-33560-A2i199908-200012
LEATHER,IVORY,TRIM0#
sub71071-33560
main71071-33560-A3i200010-200012
LEATHER,IVORY,TRIM0#
sub71071-33560
main71071-33560-C0i199810-199908
LEATHER,BLACK,TRIM2#
sub71071-33560
main71071-33560-C2i199908-200012
LEATHER,BLACK,TRIM2#
sub71071-33560
main71071-33560-C3i200010-200012
LEATHER,BLACK,TRIM2#
sub71071-33560
main71071-33560-G0i199608-199908
LEATHER,LIGHT SAGE,TRIM6#
sub71071-33560
main71071-33560-G2i199908-200012
LEATHER,DK.SAGE,TRIM6#
sub71071-33560
main71071-33560-G3i200010-200012
LEATHER,DK. SAGE,TRIM6#
sub71071-33560
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-33530-G0i199608-199708
LIGHT SAGE,TRIM6#
main71072-33531-C0i199810-199908
BLACK,TRIM2#
main71072-33531-G0i199708-199908
LIGHT SAGE,TRIM6#
main71072-33532-C3i199908
BLACK,TRIM2#
main71072-33532-G2i199908-200012
DK.SAGE,TRIM6#
main71072-33550-A0i199608-199908
LEATHER,IVORY,TRIM0#
sub71072-33550
main71072-33550-A2i199908-200012
LEATHER,IVORY,TRIM0#
sub71072-33550
main71072-33550-A3i200010-200012
LEATHER,IVORY,TRIM0#
sub71072-33550
main71072-33550-C0i199810-199908
LEATHER,BLACK,TRIM2#
sub71072-33550
main71072-33550-C2i199908-200012
LEATHER,BLACK,TRIM2#
sub71072-33550
main71072-33550-C3i200010-200012
LEATHER,BLACK,TRIM2#
sub71072-33550
main71072-33550-G0i199608-199908
LEATHER,LIGHT SAGE,TRIM6#
sub71072-33550
main71072-33550-G2i199908-200012
LEATHER,DK.SAGE,TRIM6#
sub71072-33550
main71072-33550-G3i200010-200012
LEATHER,DK. SAGE,TRIM6#
sub71072-33550
main71072-33580-A2i200012
LEATHER,IVORY,TRIM0#
sub71072-33580
main71072-33580-A3i200012
LEATHER,IVORY,TRIM0#
sub71072-33580
main71072-33580-C4i200012
LEATHER,BLACK,TRIM2#
sub71072-33580
main71072-33580-C5i200012
LEATHER,BLACK,TRIM2#
sub71072-33580
main71072-33580-G5i200012
LEATHER,DK.SAGE,TRIM6#
sub71072-33580
main71072-33580-G7i200012
LEATHER,DK.SAGE,TRIM6#
sub71072-33580
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-33570-G0i199608-199708
LIGHT SAGE,TRIM6#
main71073-33590-A0i199608-199708
IVORY,TRIM0#
main71073-33590-G0i199608-199708
LEATHER,LIGHT SAGE,TRIM6#
main71073-33770-C0i199810-199908
BLACK,TRIM2#
main71073-33770-G0i199708-199908
LIGHT SAGE,TRIM6#
main71073-33771-C3i199908
BLACK,TRIM2#
main71073-33771-G2i199908-200012
DK.SAGE,TRIM6#
main71073-33790-A0i199708-199908
IVORY,TRIM0#
main71073-33790-C0i199810-199908
W(LEATHER SEAT & POWER SEAT),BLACK,TRIM2#
main71073-33790-G0i199708-199908
W(LEATHER SEAT & POWER SEAT),LIGHT SAGE,TRIM6#
main71073-3T140-A0i199908-200001
W(LEATHER SEAT & POWER SEAT),1VORY,TRIM0#
sub71073-3T140
sub71073-3T142
main71073-3T140-A1i200001-200010
W(LEATHER SEAT & POWER SEAT),IVORY,TRIM0#
sub71073-3T140
sub71073-3T142
main71073-3T140-C0i199908-200001
W(LEATHER SEAT & POWER SEAT),BLACK,TRIM2#
sub71073-3T140
sub71073-3T142
main71073-3T140-C1i200001-200010
W(LEATHER SEAT & POWER SEAT),BLACK,TRIM2#
sub71073-3T140
sub71073-3T142
main71073-3T140-G0i199908-200001
W(LEATHER SEAT & POWER SEAT),DK.SAGE,TRIM6#
sub71073-3T140
sub71073-3T142
main71073-3T140-G1i200001-200010
W(LEATHER SEAT & POWER SEAT),DK.SAGE,TRIM6#
sub71073-3T140
sub71073-3T142
main71073-3T141-A1i200010-200012
W(LEATHER SEAT & POWER SEAT ),IVORY,TRIM0#
main71073-3T141-A2i200010-200012
W(LEATHER SEAT & POWER SEAT ),IVORY,TRIM0#
main71073-3T141-C1i200010-200012
W(LEATHER SEAT & POWER SEAT ),BLACK,TRIM2#
main71073-3T141-C2i200010-200012
W(LEATHER SEAT & POWER SEAT ),BLACK,TRIM2#
main71073-3T141-G1i200010-200012
W(LEATHER SEAT & POWER SEAT ),SAGE,TRIM6#
main71073-3T141-G2i200010-200012
W(LEATHER SEAT & POWER SEAT ),SAGE,TRIM6#
main71073-3T142-A1i200012
W(LEATHER SEAT & POWER SEAT ),IVORY,TRIM0#
sub71073-3T142
main71073-3T142-A3i200012
W(LEATHER SEAT & POWER SEAT ),IVORY,TRIM0#
sub71073-3T142
main71073-3T142-C1i200012
W(LEATHER SEAT & POWER SEAT ),BLACK,TRIM2#
sub71073-3T142
main71073-3T142-C3i200012
W(LEATHER SEAT & POWER SEAT ),BLACK,TRIM2#
sub71073-3T142
main71073-3T142-G1i200012
W(LEATHER SEAT & POWER SEAT ),SAGE,TRIM6#
sub71073-3T142
main71073-3T142-G4i200012
W(LEATHER SEAT & POWER SEAT ),SAGE,TRIM6#
sub71073-3T142
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-33570-G0i199608-199708
LIGHT SAGE,TRIM6#
main71073-33590-A0i199608-199708
IVORY,TRIM0#
main71073-33590-G0i199608-199708
LEATHER,LIGHT SAGE,TRIM6#
main71074-33630-C0i199810-199908
BLACK,TRIM2#
main71074-33630-G0i199708-199908
LIGHT SAGE,TRIM6#
main71074-33631-C3i199908
BLACK,TRIM2#
main71074-33631-G2i199908-200012
DK.SAGE,TRIM6#
main71074-33650-A0i199708-199908
IVORY,TRIM0#
main71074-33650-C0i199810-199908
W(LEATHER SEAT & POWER SEAT),BLACK,TRIM2#
main71074-33650-G0i199708-199908
W(LEATHER SEAT & POWER SEAT),LIGHT SAGE,TRIM6#
main71074-33710-A0i199908-200001
W(LEATHER SEAT & POWER SEAT),1VORY,TRIM0#
sub71074-33710
sub71074-33712
main71074-33710-A1i200001-200010
W(LEATHER SEAT & POWER SEAT),IVORY,TRIM0#
sub71074-33710
sub71074-33712
main71074-33710-C0i199908-200001
W(LEATHER SEAT & POWER SEAT),BLACK,TRIM2#
sub71074-33710
sub71074-33712
main71074-33710-C1i200001-200010
W(LEATHER SEAT & POWER SEAT),BLACK,TRIM2#
sub71074-33710
sub71074-33712
main71074-33710-G0i199908-200001
W(LEATHER SEAT & POWER SEAT),DK.SAGE,TRIM6#
sub71074-33710
sub71074-33712
main71074-33710-G1i200001-200010
W(LEATHER SEAT & POWER SEAT),DK.SAGE,TRIM6#
sub71074-33710
sub71074-33712
main71074-33711-A1i200010-200012
W(LEATHER SEAT & POWER SEAT ),IVORY,TRIM0#
main71074-33711-A2i200010-200012
W(LEATHER SEAT & POWER SEAT ),IVORY,TRIM0#
main71074-33711-C1i200010-200012
W(LEATHER SEAT & POWER SEAT ),BLACK,TRIM2#
main71074-33711-C2i200010-200012
W(LEATHER SEAT & POWER SEAT ),BLACK,TRIM2#
main71074-33711-G1i200010-200012
W(LEATHER SEAT & POWER SEAT ),SAGE,TRIM6#
main71074-33711-G2i200010-200012
W(LEATHER SEAT & POWER SEAT ),SAGE,TRIM6#
main71074-33712-A1i200012
W(LEATHER SEAT & POWER SEAT ),IVORY,TRIM0#
sub71074-33712
main71074-33712-A3i200012
W(LEATHER SEAT & POWER SEAT ),IVORY,TRIM0#
sub71074-33712
main71074-33712-C1i200012
W(LEATHER SEAT & POWER SEAT ),BLACK,TRIM2#
sub71074-33712
main71074-33712-C3i200012
W(LEATHER SEAT & POWER SEAT ),BLACK,TRIM2#
sub71074-33712
main71074-33712-G1i200012
W(LEATHER SEAT & POWER SEAT ),SAGE,TRIM6#
sub71074-33712
main71074-33712-G4i200012
W(LEATHER SEAT & POWER SEAT ),SAGE,TRIM6#
sub71074-33712
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-33180-G0i199608-199708
***,LIGHT SAGE,TRIM6#
main71410-33181-C0i199810-199908
***,BLACK,TRIM2#
main71410-33181-G0i199708-199908
***,LIGHT SAGE,TRIM6#
main71410-33182-C3i199908
***,BLACK,TRIM2#
main71410-33182-G2i199908-200012
***,DK.SAGE,TRIM6#
main71410-33340-A0i199608-199908
***,LEATHER,IVORY,TRIM0#
sub71410-33340
main71410-33340-A2i199908-200012
***,LEATHER,IVORY,TRIM0#
sub71410-33340
main71410-33340-A3i200010-200012
***,LEATHER,IVORY,TRIM0#
sub71410-33340
main71410-33340-C0i199810-199908
***,LEATHER,BLACK,TRIM2#
sub71410-33340
main71410-33340-C2i199908-200012
***,LEATHER,BLACK,TRIM2#
sub71410-33340
main71410-33340-C3i200010-200012
***,LEATHER,BLACK,TRIM2#
sub71410-33340
main71410-33340-G0i199608-199908
***,LEATHER,LIGHT SAGE,TRIM6#
sub71410-33340
main71410-33340-G2i199908-200012
***,LEATHER,DK.SAGE,TRIM6#
sub71410-33340
main71410-33340-G3i200010-200012
***,LEATHER,DK. SAGE,TRIM6#
sub71410-33340
main71410-33510-A2i200012
***,LEATHER,IVORY,TRIM0#
sub71410-33510
main71410-33510-A3i200012
***,LEATHER,IVORY,TRIM0#
sub71410-33510
main71410-33510-C4i200012
***,LEATHER,BLACK,TRIM2#
sub71410-33510
main71410-33510-C5i200012
***,LEATHER,BLACK,TRIM2#
sub71410-33510
main71410-33510-G4i200012
***,LEATHER,DK.SAGE,TRIM6#
sub71410-33510
main71410-33510-G6i200012
***,LEATHER,DK.SAGE,TRIM6#
sub71410-33510
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-33340-G0i199608-199708
***,LIGHT SAGE,TRIM6#
main71420-33341-C0i199810-199908
***,BLACK,TRIM2#
main71420-33341-G0i199708-199908
***,LIGHT SAGE,TRIM6#
main71420-33480-A0i199608-199908
***,LEATHER,IVORY,TRIM0#
sub71420-33480
main71420-33480-A2i199908-200012
***,LEATHER,IVORY,TRIM0#
sub71420-33480
main71420-33480-A3i200010-200012
***,LEATHER,IVORY,TRIM0#
sub71420-33480
main71420-33480-C0i199810-199908
***,LEATHER,BLACK,TRIM2#
sub71420-33480
main71420-33480-C2i199908-200012
***,LEATHER,BLACK,TRIM2#
sub71420-33480
main71420-33480-C3i200010-200012
***,LEATHER,BLACK,TRIM2#
sub71420-33480
main71420-33480-G0i199608-199908
***,LEATHER,LIGHT SAGE,TRIM6#
sub71420-33480
main71420-33480-G2i199908-200012
***,LEATHER,DK.SAGE,TRIM6#
sub71420-33480
main71420-33480-G3i200010-200012
***,LEATHER,DK. SAGE,TRIM6#
sub71420-33480
main71420-33490-A2i200012
***,LEATHER,IVORY,TRIM0#
sub71420-33490
main71420-33490-A3i200012
***,LEATHER,IVORY,TRIM0#
sub71420-33490
main71420-33490-C4i200012
***,LEATHER,BLACK,TRIM2#
sub71420-33490
main71420-33490-C5i200012
***,LEATHER,BLACK,TRIM2#
sub71420-33490
main71420-33490-G5i200012
***,LEATHER,DK.SAGE,TRIM6#
sub71420-33490
main71420-33490-G7i200012
***,LEATHER,DK.SAGE,TRIM6#
sub71420-33490
main71420-33660-C1i199908
***,BLACK,TRIM2#
main71420-33660-G1i199908-200012
***,DK.SAGE,TRIM6#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-33350-G0i199608-199708
***,LIGHT SAGE,TRIM6#
main71430-33560-A0i199608-199708
***,IVORY,TRIM0#
main71430-33560-G0i199608-199708
***,LEATHER,LIGHT SAGE,TRIM6#
main71430-33760-G0i199708-199808
LIGHT SAGE,TRIM6#
main71430-33761-C0i199810-199908
BLACK,TRIM2#
main71430-33761-G0i199808-199908
LIGHT GRAY,TRIM6#
main71430-33762-C2i199908
BLACK,TRIM2#
sub71430-33763
main71430-33762-G2i199908-200012
DK.SAGE,TRIM6#
sub71430-33763
main71430-33781-A0i199810-199908
LEATHER,IVORY,TRIM0#
main71430-33781-C0i199810-199908
LEATHER,BLACK,TRIM2#
main71430-33781-G0i199810-199908
LEATHER,LIGHT SAGE,TRIM6#
main71430-33782-A2i199908-200012
LEATHER,IVORY,TRIM0#
sub71430-33783
main71430-33782-C2i199908-200012
LEATHER,BLACK,TRIM2#
sub71430-33783
main71430-33782-G2i199908-200012
LEATHER,DK.SAGE,TRIM6#
sub71430-33783
main71430-33783-A5i200012
LEATHER,IVORY,TRIM0#
sub71430-33783
main71430-33783-C5i200012
LEATHER,BLACK,TRIM2#
sub71430-33783
main71430-33783-G5i200012
LEATHER,DK.SAGE,TRIM6#
sub71430-33783
main71430-33790-A0i199708-199808
IVORY,TRIM0#
main71430-33790-G0i199708-199808
W(LEATHER SEAT & POWER SEAT),LIGHT SAGE,TRIM6#
main71430-33791-A0i199808-199908
LEATHER,IVORY,TRIM0#
main71430-33791-G0i199808-199908
LEATHER,LIGHT SAGE,TRIM6#
main71430-33792-A2i199908-200012
LEATHER,IVORY,TRIM0#
sub71430-33793
main71430-33792-C1i199908-200012
LEATHER,BLACK,TRIM2#
sub71430-33793
main71430-33792-G2i199908-200012
LEATHER,DK.SAGE,TRIM6#
sub71430-33793
main71430-33793-A5i200012
LEATHER,IVORY,TRIM0#
main71430-33793-C4i200012
LEATHER,BLACK,TRIM2#
main71430-33793-G7i200012
LEATHER,DK.SAGE,TRIM6#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71430-33350-G0i199608-199708
***,LIGHT SAGE,TRIM6#
main71440-33500-A0i199608-199708
***,IVORY,TRIM0#
main71440-33500-G0i199608-199708
***,LEATHER,LIGHT SAGE,TRIM6#
main71440-33671-C0i199810-199908
BLACK,TRIM2#
main71440-33671-G0i199810-199908
LT.SAGE,TRIM6#
main71440-33672-C2i199908
BLACK,TRIM2#
sub71440-33673
main71440-33672-G2i199908
DK.SAGE,TRIM6#
sub71440-33673
main71440-33691-A0i199810-199908
IVORY,TRIM0#
main71440-33691-C0i199810-199908
LEATHER,BLACK,TRIM2#
main71440-33691-G0i199810-199908
LEATHER,LT.SAGE,TRIM6#
main71440-33692-A2i199908-200012
LEATHER,IVORY,TRIM0#
sub71440-33693
main71440-33692-C2i199908-200012
LEATHER,BLACK,TRIM2#
sub71440-33693
main71440-33692-G2i199908-200012
LEATHER,DK.SAGE,TRIM6#
sub71440-33693
main71440-33693-A5i200012
LEATHER,IVORY,TRIM0#
sub71440-33693
main71440-33693-C5i200012
LEATHER,BLACK,TRIM2#
sub71440-33693
main71440-33693-G5i200012
LEATHER,DK.SAGE,TRIM6#
sub71440-33693
main71440-33700-G0i199708-199808
LIGHT SAGE,TRIM6#
main71440-33701-G0i199808-199908
LT.SAGE,TRIM6#
main71440-33702-G2i199908-200012
DK.SAGE,TRIM6#
sub71440-33703
main71440-33710-A0i199708-199808
IVORY,TRIM0#
main71440-33710-G0i199708-199808
W(LEATHER SEAT & POWER SEAT),LIGHT SAGE,TRIM6#
main71440-33711-A0i199808-199908
IVORY,TRIM0#
main71440-33711-G0i199808-199908
W(LEATHER SEAT & POWER SEAT),LT.SAGE,TRIM6#
main71440-33712-A2i199908-200012
LEATHER,IVORY,TRIM0#
sub71440-33713
main71440-33712-C2i199908-200012
LEATHER,BLACK,TRIM2#
sub71440-33713
main71440-33712-G2i199908-200012
LEATHER,DK.SAGE,TRIM6#
sub71440-33713
main71440-33713-A5i200012
LEATHER,IVORY,TRIM0#
main71440-33713-C5i200012
LEATHER,BLACK,TRIM2#
main71440-33713-G7i200012
LEATHER,DK.SAGE,TRIM6#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-33100i199608
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-33100i199608
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-33060i199608-199708
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-33060i199608-199708
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-33180-G0i199608-199708
SAGE,TRIM6#
main71705-33200-C0i199810-199908
BLACK,TRIM2#
main71705-33200-G0i199708-199908
SAGE,TRIM6#
main71705-33210-A0i199608-199908
LEATHER,IVORY,TRIM0#
main71705-33210-C0i199810-199908
LEATHER,BLACK,TRIM2#
main71705-33210-G0i199608-199908
LEATHER,SAGE,TRIM6#
main71705-33240-C0i199908-200107
BLACK,TRIM2#
main71705-33240-G0i199908-200107
DK.SAGE,TRIM6#
main71705-33250-A0i199908-200107
LEATHER,IVORY,TRIM0#
main71705-33250-C0i199908-200107
LEATHER,BLACK,TRIM2#
main71705-33250-G0i199908-200107
LEATHER,DK.SAGE,TRIM6#
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-33180-G0i199608-199708
SAGE,TRIM6#
main71705-33200-C0i199810-199908
BLACK,TRIM2#
main71705-33200-G0i199708-199908
SAGE,TRIM6#
main71705-33210-A0i199608-199908
LEATHER,IVORY,TRIM0#
main71705-33210-C0i199810-199908
LEATHER,BLACK,TRIM2#
main71705-33210-G0i199608-199908
LEATHER,SAGE,TRIM6#
main71705-33240-C0i199908-200107
BLACK,TRIM2#
main71705-33240-G0i199908-200107
DK.SAGE,TRIM6#
main71705-33250-A0i199908-200107
LEATHER,IVORY,TRIM0#
main71705-33250-C0i199908-200107
LEATHER,BLACK,TRIM2#
main71705-33250-G0i199908-200107
LEATHER,DK.SAGE,TRIM6#
71831DCOVER, FRONT SEAT HINGE, RH
main71831-33010i199608-199809
sub71831-33021
main71831-33020i199809-200004
sub71831-33021
main71831-33021i200004
71832DCOVER, FRONT SEAT HINGE, LH
main71832-33010i199608-199809
sub71832-33020
main71832-33020i199809-200004
sub71832-33021
main71832-33021i200004
71910AHEADREST ASSY, FRONT SEAT
main71910-33260-A0i199608-199908
LEATHER,IVORY,TRIM0#
sub71910-33260
main71910-33260-A2i199908-200012
LEATHER,IVORY,TRIM0#
sub71910-33260
main71910-33260-A3i200010-200012
LEATHER,IVORY,TRIM0#
sub71910-33260
main71910-33260-C0i199810-199908
LEATHER,BLACK,TRIM2#
sub71910-33260
main71910-33260-C2i199908-200012
LEATHER,BLACK,TRIM2#
sub71910-33260
main71910-33260-C3i200010-200012
LEATHER,BLACK,TRIM2#
sub71910-33260
main71910-33260-G0i199608-199908
LEATHER,SAGE,TRIM6#
sub71910-33260
main71910-33260-G3i199908-200012
LEATHER,DK.SAGE,TRIM6#
sub71910-33260
main71910-33270-C0i199810-199908
BLACK,TRIM2#
main71910-33270-G0i199608-199908
SAGE,TRIM6#
main71910-33271-C4i199908
BLACK,TRIM2#
main71910-33271-G3i199908-200012
DK.SAGE,TRIM6#
main71910-33290-A2i200012
LEATHER,IVORY,TRIM0#
sub71910-33290
main71910-33290-A3i200012
LEATHER,IVORY,TRIM0#
sub71910-33290
main71910-33290-C7i200012
LEATHER,BLACK,TRIM2#
sub71910-33290
main71910-33290-C8i200012
LEATHER,BLACK,TRIM2#
sub71910-33290
main71910-33290-G9i200012
LEATHER,DK.SAGE,TRIM6#
sub71910-33290
main71910-33290-Q3i200012
LEATHER,DK.SAGE,TRIM6#
sub71910-33290
71931SUPPORT, FRONT SEAT HEADREST
main71930-32020-A0i199608-199908
W(LOCK),IVORY,TRIM0#
sub71930-32020
main71930-32020-C0i199810-199908
W(LOCK),BLACK,TRIM2#
sub71930-32020
main71930-32020-G2i199608-199908
W(LOCK),SAGE,TRIM6#
sub71930-32020
main71930-44010-A0i199908
W(LOCK),IVORY,TRIM0#
sub71930-44010
main71930-44010-C0i199908
W(LOCK),BLACK,TRIM2#
sub71930-44010
main71930-44010-G0i199908
W(LOCK),SAGE,TRIM6#
sub71930-44010
main71931-32020-A0i199608
W/O(LOCK),IVORY,TRIM0#
sub71931-32020
main71931-32020-C0i199810-199908
W/O(LOCK),BLACK,TRIM2#
sub71931-32020
main71931-32020-G2i199608
W/O(LOCK),SAGE,TRIM6#
sub71931-32020
72583ABRACKET, SEAT SIDE GARNISH, RH
main72583-33020i199608
72584ABRACKET, SEAT SIDE GARNISH, LH
main72584-33010i199608
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-33030i199608-199908
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-33030i199908
9026903007
main90269-03007
904671001601
main90467-1001601
9046710016A0
main90467-10016A0
9046818071
main90468-18071
9356054010
main93560-54010
9418560600
main94185-60600

32 parts on this diagram · 2 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
