EPC Data

REAR DOOR PANEL & GLASS

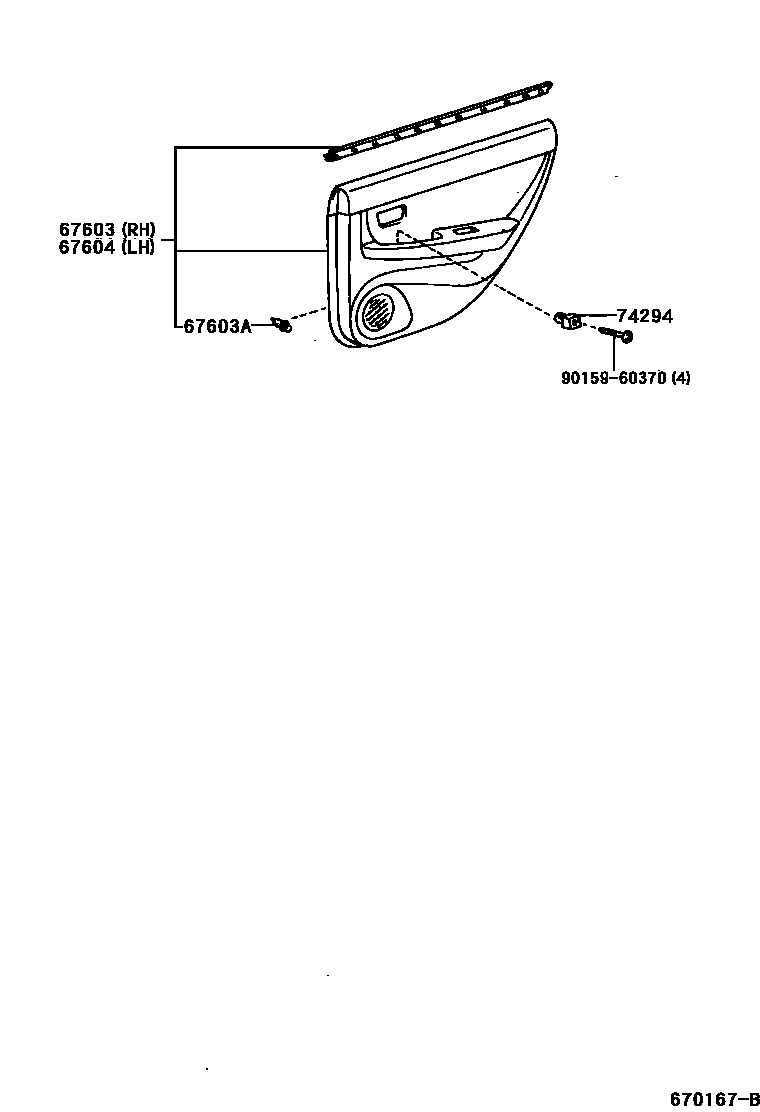

Parts diagram
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67630-33360-C0i199810-199908
BLACK,TRIM2#
main67630-33360-G0i199608-199908
SAGE,TRIM6#
main67630-33370-A0i199608-199908
W(LEATHER SEAT),IVORY,TRIM0#
sub67630-33370
main67630-33370-A0i199810-199908
IVORY,TRIM0#
sub67630-33370
main67630-33370-A2i199908-199912
W(LEATHER SEAT),IVORY,TRIM0#
sub67630-33370
main67630-33370-C0i199810-199908
W(LEATHER SEAT),BLACK,TRIM2#
sub67630-33370
main67630-33370-C2i199908-199912
W(LEATHER SEAT),BLACK,TRIM2#
sub67630-33370
main67630-33370-G0i199608-199908
W(LEATHER SEAT),SAGE,TRIM6#
sub67630-33370
main67630-33370-G2i199908-199912
W(LEATHER SEAT),DK.SAGE,TRIM6#
sub67630-33370
main67630-33390-A2i199912
W(LEATHER SEAT),IVORY,TRIM0#
sub67630-33390
main67630-33390-C4i199912
W(LEATHER SEAT),BLACK,TRIM2#
sub67630-33390
main67630-33390-G4i199912
W(LEATHER SEAT),DK.SAGE,TRIM6#
sub67630-33390
main67630-33520-C1i199908
BLACK,TRIM2#
main67630-33520-G1i199908-199912
DK.SAGE,TRIM6#
main67630-33530-G1i199912-200101
DK.SAGE,TRIM6#
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
main67771-12050i199608
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67640-33360-C0i199810-199908
BLACK,TRIM2#
main67640-33360-G0i199608-199908
SAGE,TRIM6#
main67640-33370-A0i199608-199908
W(LEATHER SEAT),IVORY,TRIM0#
sub67640-33370
main67640-33370-A0i199810-199908
IVORY,TRIM0#
sub67640-33370
main67640-33370-A2i199908-199912
W(LEATHER SEAT),IVORY,TRIM0#
sub67640-33370
main67640-33370-C0i199810-199908
W(LEATHER SEAT),BLACK,TRIM2#
sub67640-33370
main67640-33370-C2i199908-199912
W(LEATHER SEAT),BLACK,TRIM2#
sub67640-33370
main67640-33370-G0i199608-199908
W(LEATHER SEAT),SAGE,TRIM6#
sub67640-33370
main67640-33370-G2i199908-199912
W(LEATHER SEAT),DK.SAGE,TRIM6#
sub67640-33370
main67640-33390-A2i199912
W(LEATHER SEAT),IVORY,TRIM0#
sub67640-33390
main67640-33390-C4i199912
W(LEATHER SEAT),BLACK,TRIM2#
sub67640-33390
main67640-33390-G4i199912
W(LEATHER SEAT),DK.SAGE,TRIM6#
sub67640-33390
main67640-33520-C1i199908
BLACK,TRIM2#
main67640-33520-G1i199908-199912
DK.SAGE,TRIM6#
main67640-33530-G1i199912-200101
DK.SAGE,TRIM6#
74294PLATE, REAR DOOR ARMREST, NO.2
main74294-32010i199608
9015960370
main90159-60370

5 parts on this diagram · 2 diagrams in section
