MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-33340-A0iMCV20..GCC199810

IVORY,TRIM0#

main58510-33340-C0iMCV20..GCC199810

BLACK,TRIM2#

main58510-33340-G0iMCV20..GCC199810

SAGE,TRIM6#

main58510-33350-A0iMCV20..ARL199608

IVORY,TRIM0#

main58510-33350-C0iMCV20..ARL199908

BLACK,TRIM2#

main58510-33350-G0iMCV20..ARL199608

SAGE,TRIM6#

58543BBRACKET, FLOOR CARPET, RH

main58543-33040iMCV20..GCC199810

main58543-33050iMCV20..ARL199608

58544BBRACKET, FLOOR CARPET, LH

main58544-33040iMCV20..GCC199810

main58544-33050iMCV20..ARL199608

9015950322

main90159-50322

9151160614

main91511-60614

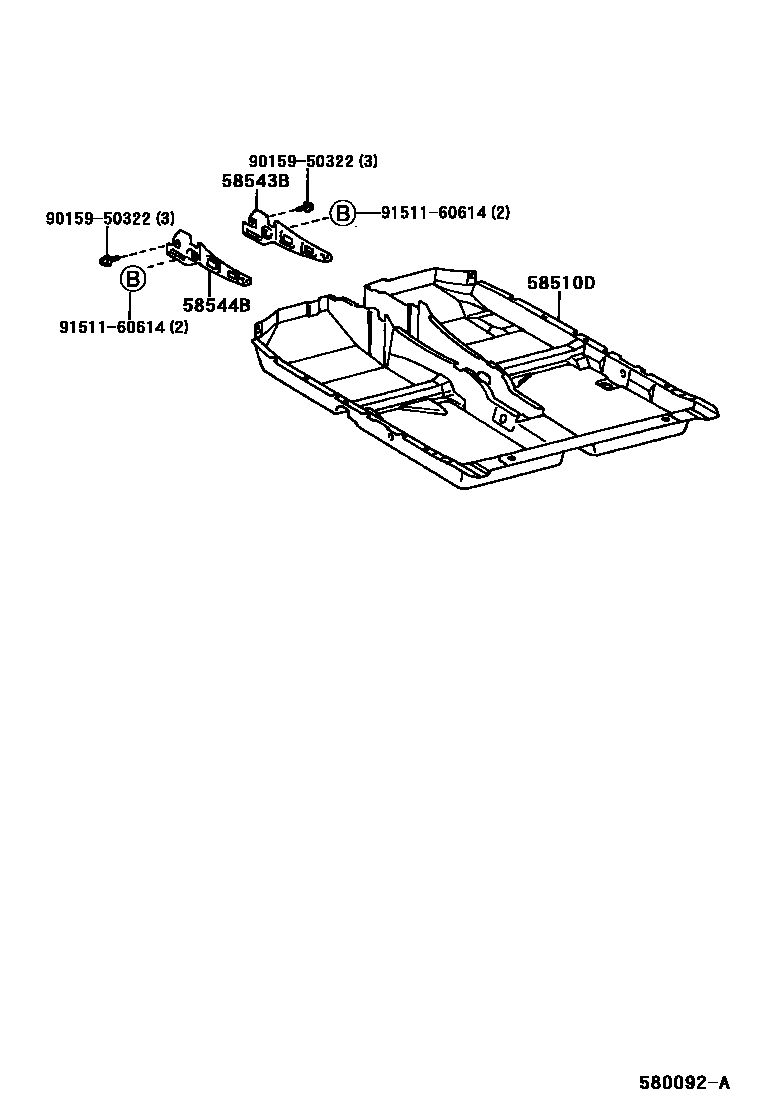

5 parts on this diagram · 1 diagram in section
