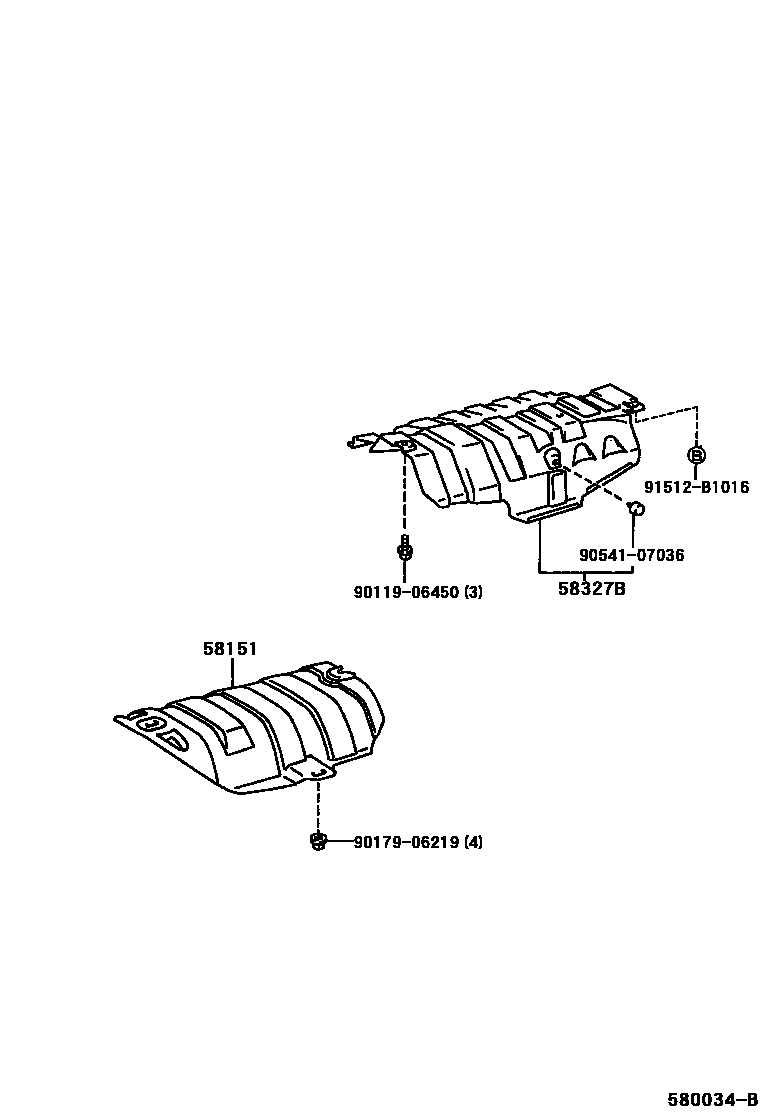

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58152-33010iMCV20199608

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-33010iMCV20199608-199710

main58327-33030iMCV20199710

9011906450

main90119-06450

9017906219

main90179-06219

9054107036

main90541-07036

91512B1016

main91512-B1016

6 parts on this diagram · 1 diagram in section
