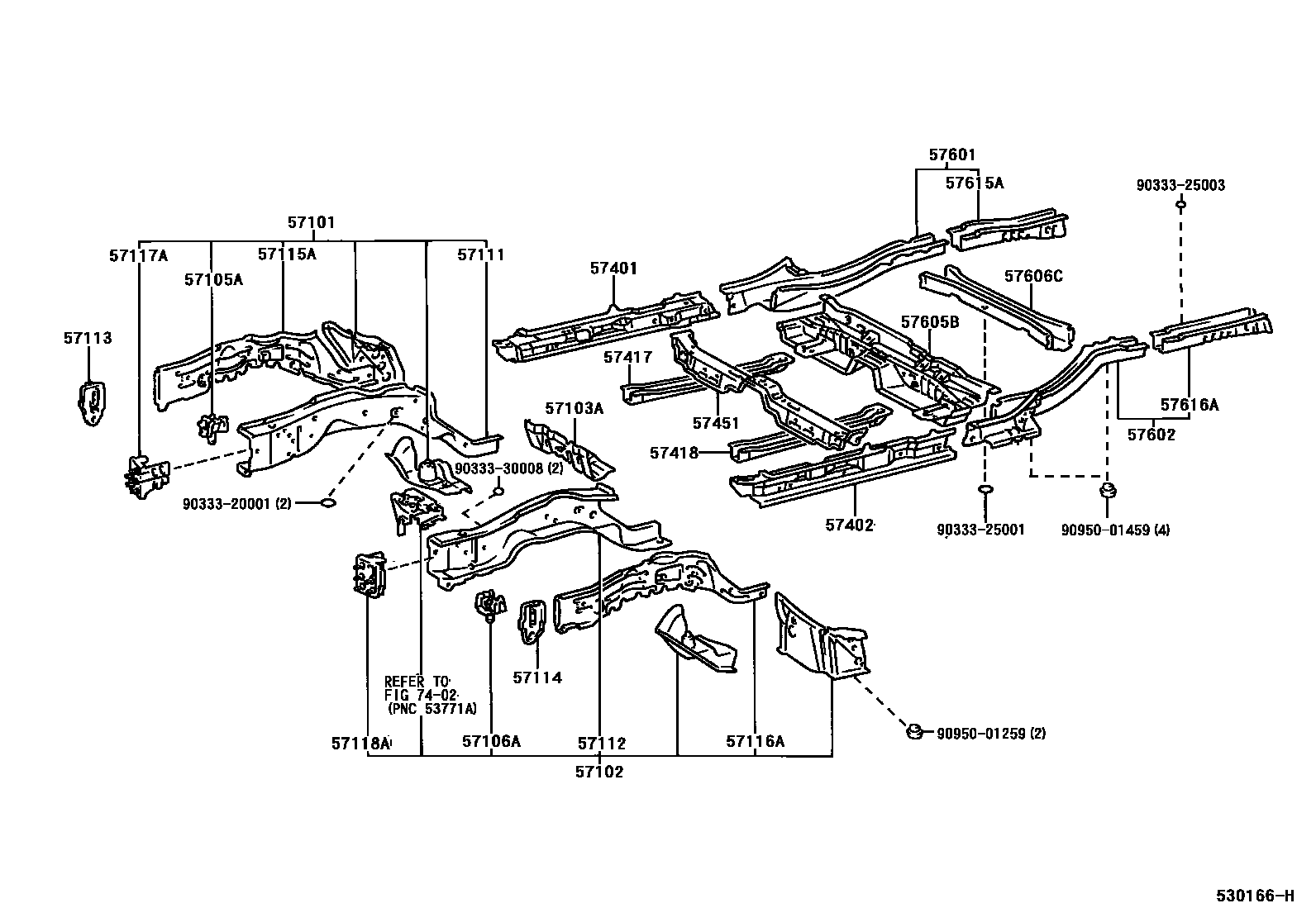

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-33020iMCV20199608-199708

main57101-33021iMCV20199708-199801

main57101-33022iMCV20199801-199802

main57101-33023iMCV20199802-199803

main57101-33024iMCV20199803-199808

main57101-33025iMCV20199808-199903

main57101-33026iMCV20199903

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-33030iMCV20199608-199708

main57102-33031iMCV20199708-199801

main57102-33032iMCV20199801-199802

main57102-33033iMCV20199802-199803

main57102-33034iMCV20199803-199808

main57102-33037iMCV20199808-199811

main57102-33038iMCV20199811

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-33010iMCV20199608

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-33011iMCV20199608-199708

main57105-33020iMCV20199708

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-33011iMCV20199608-199708

main57106-33020iMCV20199708

57111MEMBER, FRONT SIDE, RH

main57111-33010iMCV20199608-199708

sub57111-33030

main57111-33011iMCV20199708-199802

main57111-33012iMCV20199802-199803

main57111-33013iMCV20199803

57112MEMBER, FRONT SIDE, LH

main57112-33020iMCV20199608-199708

main57112-33021iMCV20199708-199802

main57112-33022iMCV20199802-199803

main57112-33023iMCV20199803-199808

main57112-33024iMCV20199808-199811

main57112-33025iMCV20199811

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-33020iMCV20199608-199808

sub57113-33021

main57113-33030iMCV20199808

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-33020iMCV20199608-199808

sub57114-33021

main57114-33030iMCV20199808

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-33010iMCV20199608

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-33010iMCV20199608

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57033-33010iMCV20199801-199808

main57033-33020iMCV20199808

main57117-33020iMCV20199608-199801

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57034-33010iMCV20199801-199808

main57034-33020iMCV20199808

main57118-33020iMCV20199608-199801

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-33050iMCV20199608-199708

main57401-33090iMCV20199708

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-33050iMCV20199608-199708

main57402-33090iMCV20199708

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57419-33900iMCV20199608

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57419-33901iMCV20199608

57451MEMBER, FRONT FLOOR CROSS

main57451-33030iMCV20199608

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-33050iMCV20199608-199708

main57601-33080iMCV20199708

sub57601-33210

sub90333-30008

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-33060iMCV20199608-199708

main57602-33061iMCV20199708

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-33030iMCV20199708

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-33021iMCV20199708

main57606-33030iMCV20199608-199708

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-33901iMCV20199608-199708

main57615-33904iMCV20199912

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-33901iMCV20..ARL199608-199908

main57616-33903iMCV20..GCC199810-200107

sub57616-33905

sub90333-30008

7402

9033320001

main90333-20001

9033325001

main90333-25001

9033325003

main90333-25003

9033330008

main90333-30008

9095001259

main90950-01259

9095001459

main90950-01459

31 parts on this diagram · 1 diagram in section
