HOOD & FRONT FENDER

53183ISEAL, HEADLAMP COVER, RH

main53183-33050iMCV20199608

53184GSEAL, HEADLAMP COVER, LH

main53184-33050iMCV20199608

53301HOOD SUB-ASSY

main53301-33040iMCV20199608

53341BINSULATOR, HOOD

main53341-33030iMCV20199608-199804

sub53341-33031

main53341-33031iMCV20199804

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-33030iMCV20199608

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iMCV20199608

53383SEAL, HOOD TO COWL TOP

main53383-33040iMCV20199608

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08101iMCV20199608

53801FENDER SUB-ASSY, FRONT RH

main53801-33070iMCV20..GCC199810

main53801-33080iMCV20..ARL199608

53802FENDER SUB-ASSY, FRONT LH

main53802-33070iMCV20..GCC199810

main53802-33080iMCV20..ARL199608

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-33030iMCV20199608

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-33030iMCV20199608

53845ABRACE, FRONT WHEEL OPENING APRON, RH

main53845-33050iMCV20199608

53846ABRACE, FRONT WHEEL OPENING APRON, LH

main53846-33040iMCV20199608

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-33030iMCV20199608

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-33030iMCV20199608

53875ALINER, FRONT FENDER, RH

main53875-33080iMCV20199608

53876ALINER, FRONT FENDER, LH

main53876-33080iMCV20199608

53882FSEAL, FRONT FENDER

main53882-16030iMCV20199608

9011906355

main90119-06355

9015950346

main90159-50346

9015960403

main90159-60403

9016440096

main90164-40096

9018904201

main90189-04201

9018906006

main90189-06006

9018906087

main90189-06087

9018906104

main90189-06104

9018906166

main90189-06166

9033320001

main90333-20001

9046704023

main90467-04023

9046708028

main90467-08028

9046709006

main90467-09006

9054115004

main90541-15004

9095006124

main90950-06124

9163560614

main91635-60614

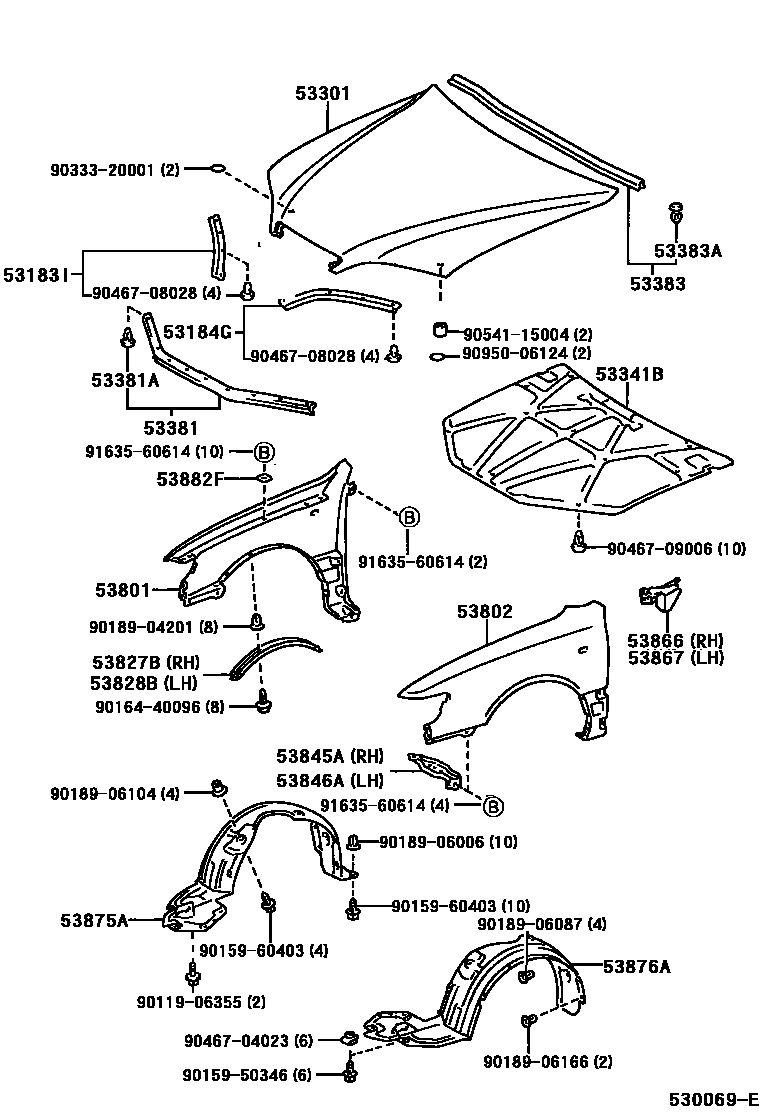

35 parts on this diagram · 1 diagram in section
