SUSPENSION CROSSMEMBER & UNDER COVER

51100GFRAME ASSY, FRONT

main51100-33030iMCV20¥86,700199608-199906

main51100-33050iMCV20¥86,800199906

sub51100-33030¥86,700

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33020iMCV20¥28,700199608-199710

sub51206-33021¥28,800

main51206-33021iMCV20¥28,800199710-199808

sub51206-33022¥28,800

main51206-33022iMCV20¥28,800199808-199901

sub51206-33040¥28,800

main51206-33040iMCV20¥28,800199901

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-33060iMCV20..ARL¥5,300199808

main51227-33070iMCV20..GCC¥4,150199810

main51227-41011iMCV20¥4,150199609-199808

51439PLATE, ENGINE REAR SIDE SHUTTER

main51439-33010iMCV20..ARL¥10,700199608

main51439-33020iMCV20..GCC¥10,700199810

51441CCOVER, ENGINE UNDER, RH

main51441-33030iMCV20¥1,700199608

51967BHOOK, TRANSPORT, REAR RH

main51967-33020iMCV20¥2,330199608

51968BHOOK, TRANSPORT, REAR LH

main51968-33010iMCV20¥1,090199608

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33010iMCV20..ARL¥5,800199608

main52211-33030iMCV20..GCC¥5,800199810

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-33010iMCV20..ARL¥1,590199608

main52213-33030iMCV20..GCC¥1,560199810

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33010iMCV20..ARL¥4,810199608-199908

main52215-33030iMCV20..GCC¥4,820199810

main52215-33060iMCV20..ARL¥5,200199908

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-33020iMCV20¥1,970199608

52248ACOLLAR, BODY MOUNTING, REAR

main52248-33010iMCV20..ARL¥320199901

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-33020iMCV20..GCC¥2,130199608-200006

main52255-33020iMCV20..ARL¥2,130199708-200006

FRAME NO.=0XXXXXX

main52255-33040iMCV20..ARL¥2,150199708-200006

FRAME NO.=5XXXXXX

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-33020iMCV20..ARL¥2,130199708-200006

FRAME NO.=0XXXXXX

main52256-33020iMCV20¥2,130199608-200006

main52256-33040iMCV20..ARL¥2,150199708-200006

FRAME NO.=5XXXXXX

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-33010iMCV20¥3,940199608-200006

main51023-33010iMCV20..ARL¥3,940199708-200006

FRAME NO.=0XXXXXX

main51023-33030iMCV20..ARL¥3,940199708-200006

FRAME NO.=5XXXXXX

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-33010iMCV20..GCC¥3,940199608-200006

main51024-33010iMCV20..ARL¥3,940199708-200006

FRAME NO.=0XXXXXX

main51024-33030iMCV20..ARL¥3,940199708-200006

FRAME NO.=5XXXXXX

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-32050iMCV20..ARL¥2,190199608

main52271-33010iMCV20..GCC¥2,240199810

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-33010iMCV20..GCC¥1,000199810

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-32010iMCV20¥480199608

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-32050iMCV20..ARL¥2,320199608

main52275-33030iMCV20..GCC¥2,490199810

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52203-33010iMCV20¥2,300199608

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52204-33010iMCV20¥2,300199608

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-33030iMCV20..GCC¥810199810

53879DRETAINER, FRONT FENDER LINER

main53879-20020iMCV20¥280199608

9010910143

main90109-10143¥520

9011906355

main90119-06355¥160

9011910556

main90119-10556¥230

9011910601

main90119-10601¥90

9011910918

main90119-10918¥100

9011912305

main90119-12305¥400

9011914037

main90119-14037¥610

9015950346

main90159-50346¥60

9017910087

main90179-10087¥110

9018210001

main90182-10001¥220

9095001398

main90950-01398¥100

9095001433

main90950-01433¥190

9095001765

main90950-01765¥120

9095001766

main90950-01766¥110

9095001772

main90950-01772¥200

9095001882

main90950-01882¥140

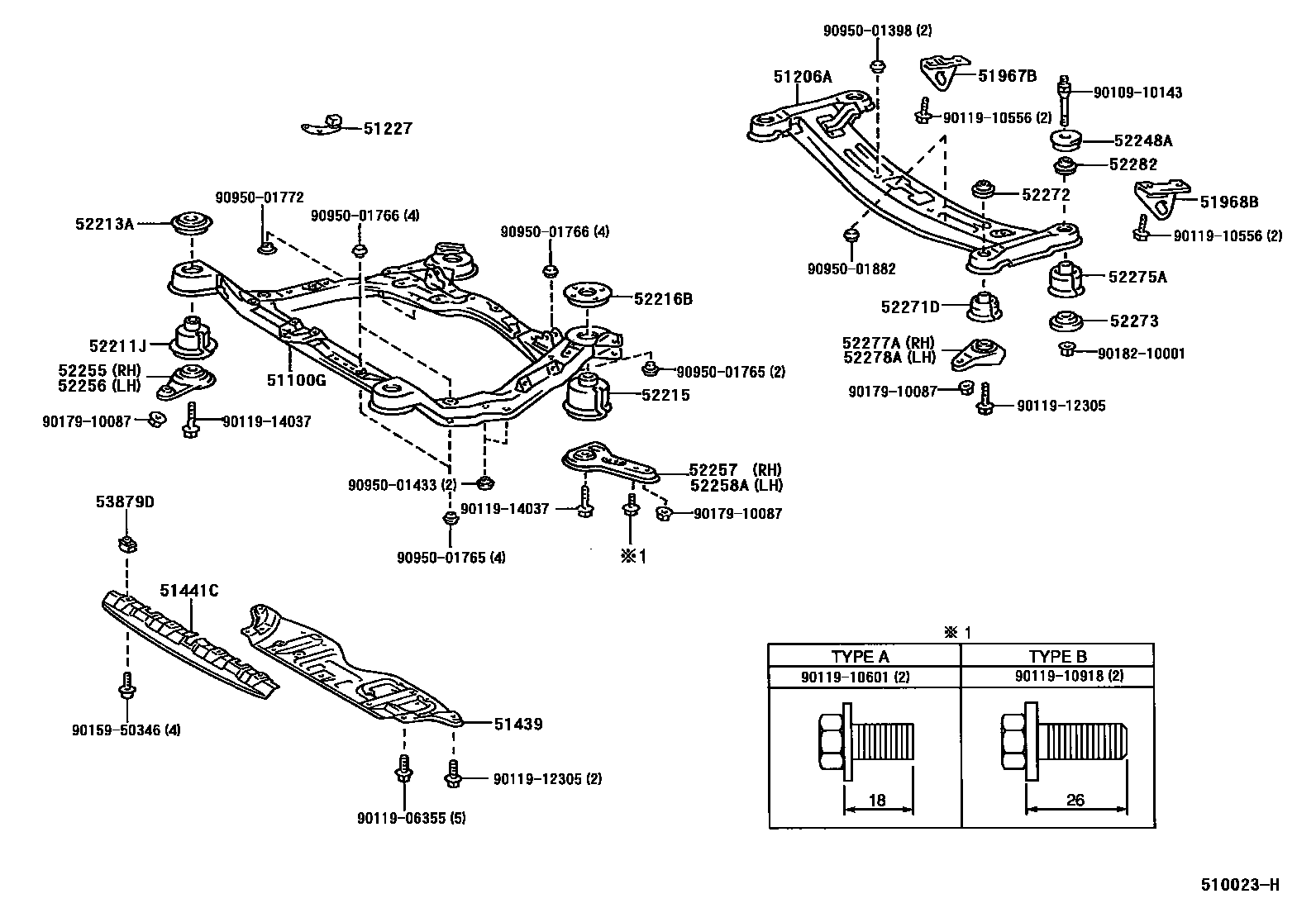

40 parts on this diagram · 1 diagram in section
