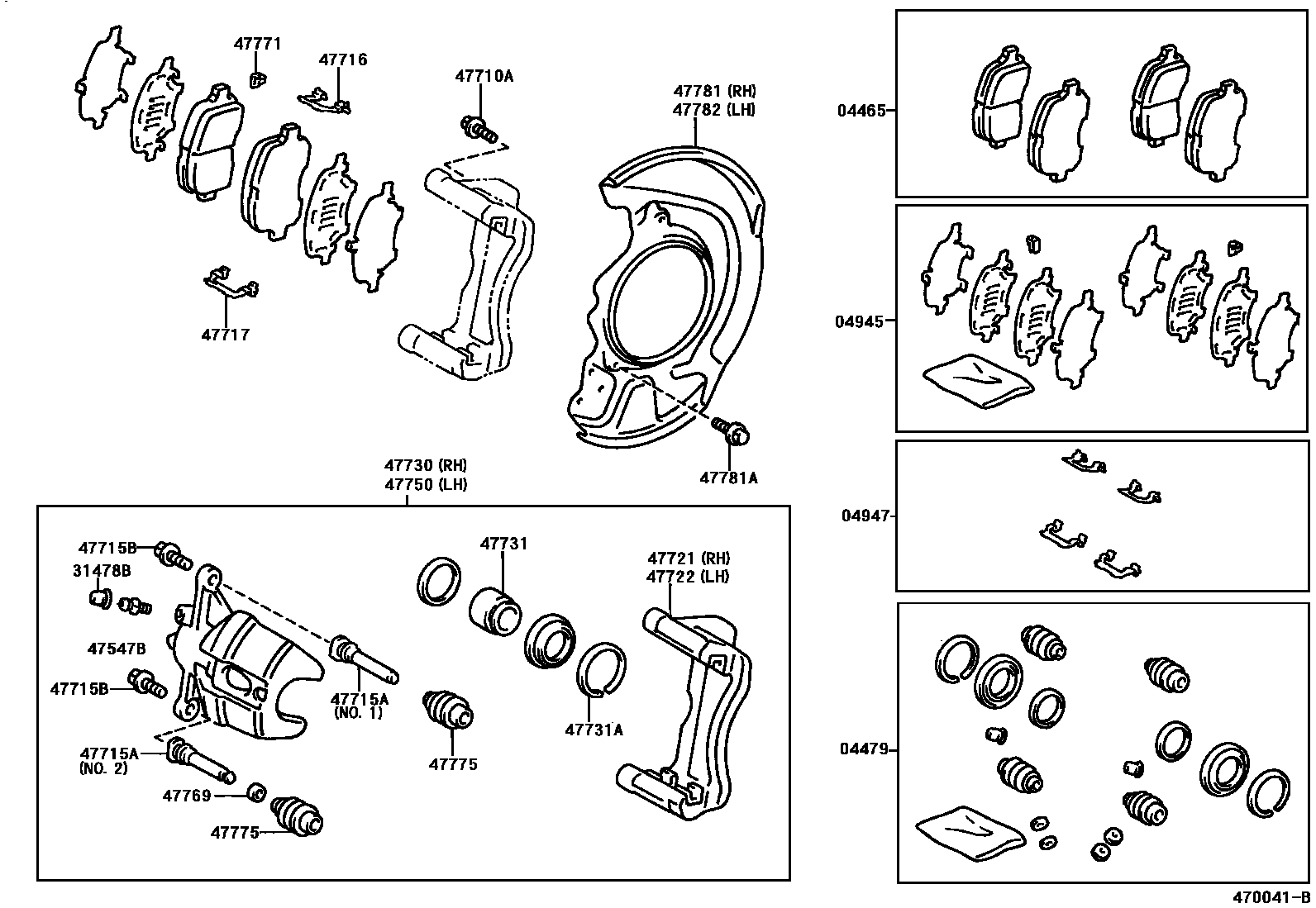

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-20260iMCV20..GCC199908

sub04465-20590

main04465-33120iMCV20..ARL199608-199812

sub04465-33121

main04465-33121iMCV20..ARL199812-199908

main04465-33150iMCV20..GCC199810-199908

sub04465-20550

main04465-33180iMCV20..ARL199908

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-33130iMCV20199608-199908

main04479-50080iMCV20..GCC199908

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33010iMCV20..GCC199908

main04945-33040iMCV20199608-199908

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33050iMCV20..GCC199908

main04947-33120iMCV20199608-199908

main04947-33160iMCV20..ARL199908

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMCV20..ARL199608-199908

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iMCV20199608

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iMCV20199608

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-24010iMCV20..GCC199908

NO.1

main47715-33010iMCV20..GCC199908

NO.2

main47715-33030iMCV20199608-199908

NO.1

sub47715-48010

main47715-33040iMCV20199608-199908

NO.2

sub47715-48020

main47715-48010iMCV20..ARL199908

NO.2

sub47815-48090

main47715-48020iMCV20..ARL199908

NO.1

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iMCV20199608-199708

main90105-08346iMCV20..ARL199708-199908

main90109-08214iMCV20..GCC199908

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-33031iMCV20..GCC199908

main47716-33080iMCV20199608-199908

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-33041iMCV20..GCC199908

main47716-33080iMCV20199608-199908

main47717-33070iMCV20..ARL199908

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33050iMCV20..GCC199908

main47721-33080iMCV20199608-199908

sub47721-33081

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-33080iMCV20..ARL199608-199908

sub47721-33081

main47722-33050iMCV20..GCC199908

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33080iMCV20..GCC199908

main47730-33120iMCV20..ARL199608-199908

47731PISTON, FRONT DISC BRAKE

main47731-33030iMCV20..GCC199908

main47731-33050iMCV20199608-199908

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-49001iMCV20..GCC199908

main90522-67001iMCV20199608-199908

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33080iMCV20..GCC199908

main47750-33120iMCV20..ARL199608-199908

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-33020iMCV20199608-199908

main47769-50010iMCV20..GCC199908

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33010iMCV20199608

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-33020iMCV20..ARL199608-199908

main47775-50010iMCV20..GCC199908

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33020iMCV20199608

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iMCV20199802-200101

main90119-06227iMCV20199608-199802

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33020iMCV20199608

23 parts on this diagram · 2 diagrams in section
