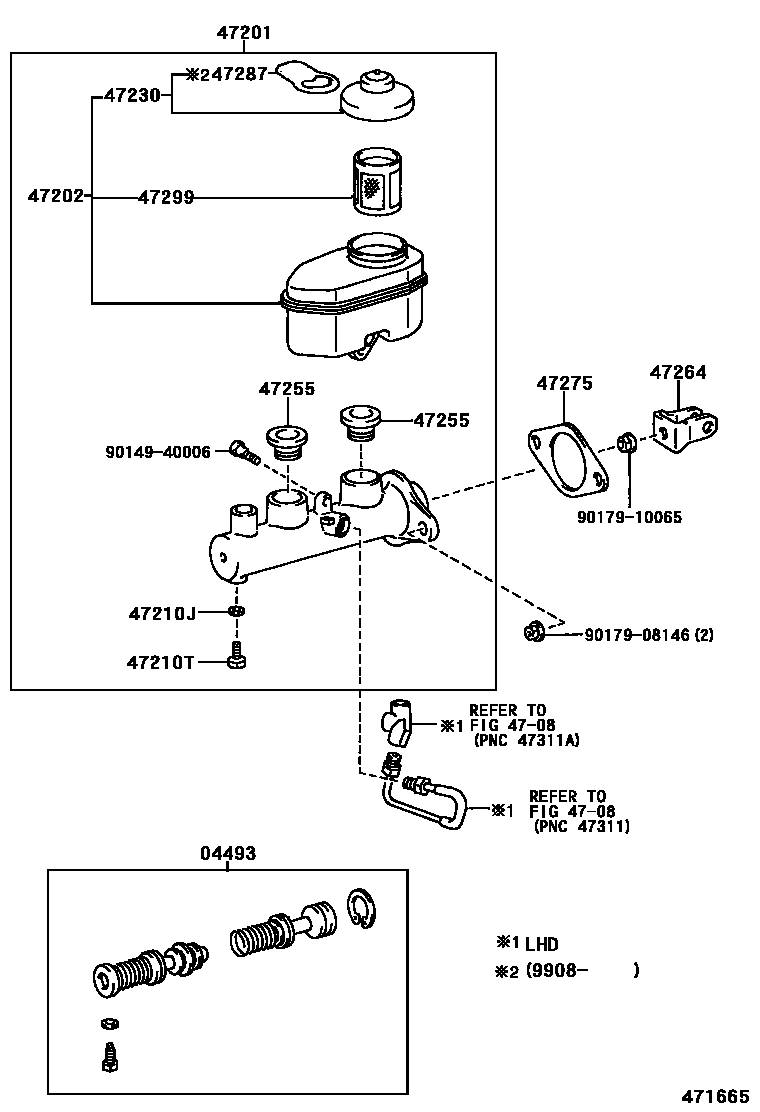

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-33060iMCV20199608

sub04493-33160

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-33130iMCV20199608-199908

main47201-33140iMCV20199908

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-33011iMCV20199608-199908

main47220-33040iMCV20199908

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iMCV20199908

main90430-06104iMCV20199608-199908

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iMCV20199608

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iMCV20199608-199908

main47230-20140iMCV20199908

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iMCV20199608

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20060iMCV20..ARL199608-199908

main47264-32020iMCV20..GCC199908

main47264-33010iMCV20..GCC199810-199908

main47264-48010iMCV20..ARL199908

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iMCV20199608

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iMCV20199908

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iMCV20199608

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

15 parts on this diagram · 1 diagram in section
