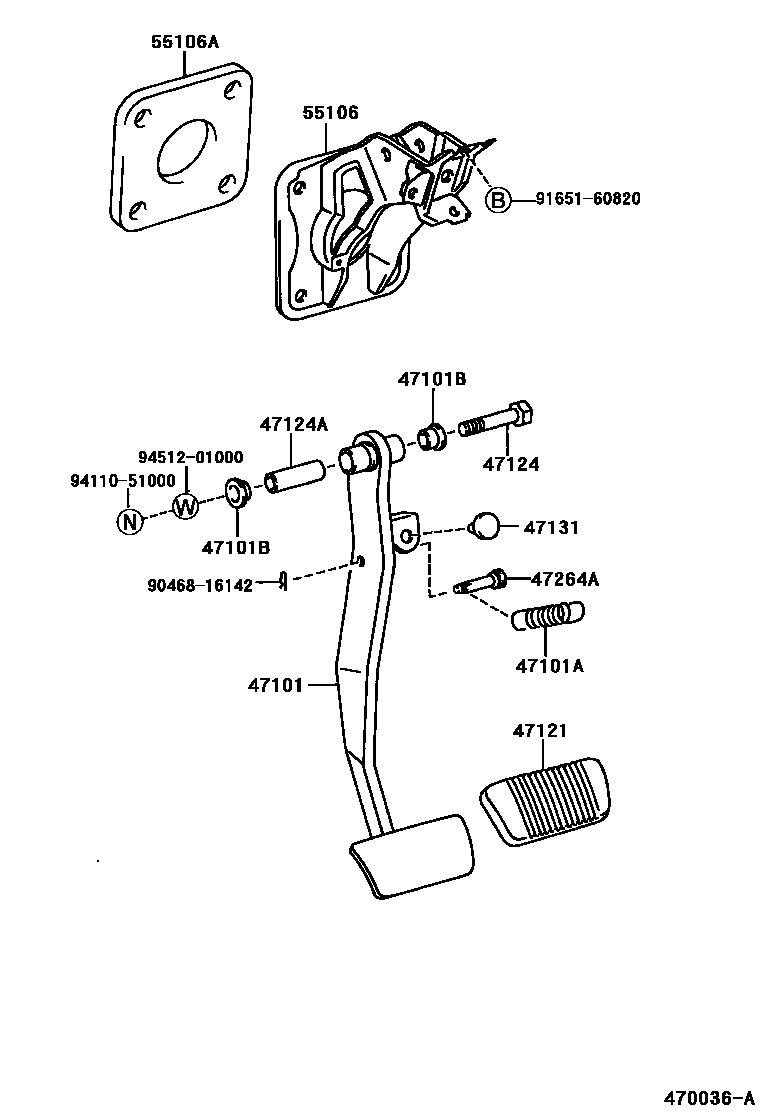

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-33020iMCV20..GCC199810

main47101-33040iMCV20..ARL199608-199908

sub47101-33050

main47101-33050iMCV20..ARL199908

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14024iMCV20199608

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iMCV20199608

47121PAD, BRAKE PEDAL

main47121-14010iMCV20199608

47124SHAFT, BRAKE PEDAL

main90101-10039iMCV20199608

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iMCV20199608

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iMCV20199608

47264APIN(FOR PUSH ROD)

main47148-12050iMCV20199608-199612

main47148-33010iMCV20199612

sub47148-33011

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-33030iMCV20..GCC199810-199908

main55106-33040iMCV20199608-199612

main55106-33050iMCV20..ARL199612-199908

main55106-33060iMCV20..GCC199908

main55106-33070iMCV20..ARL199908

55106ASEAL, DASH PANEL

main55259-20010iMCV20199608

9046816142

main90468-16142

9165160820

main91651-60820

9411051000

main94110-51000

9451201000

main94512-01000

14 parts on this diagram · 1 diagram in section
