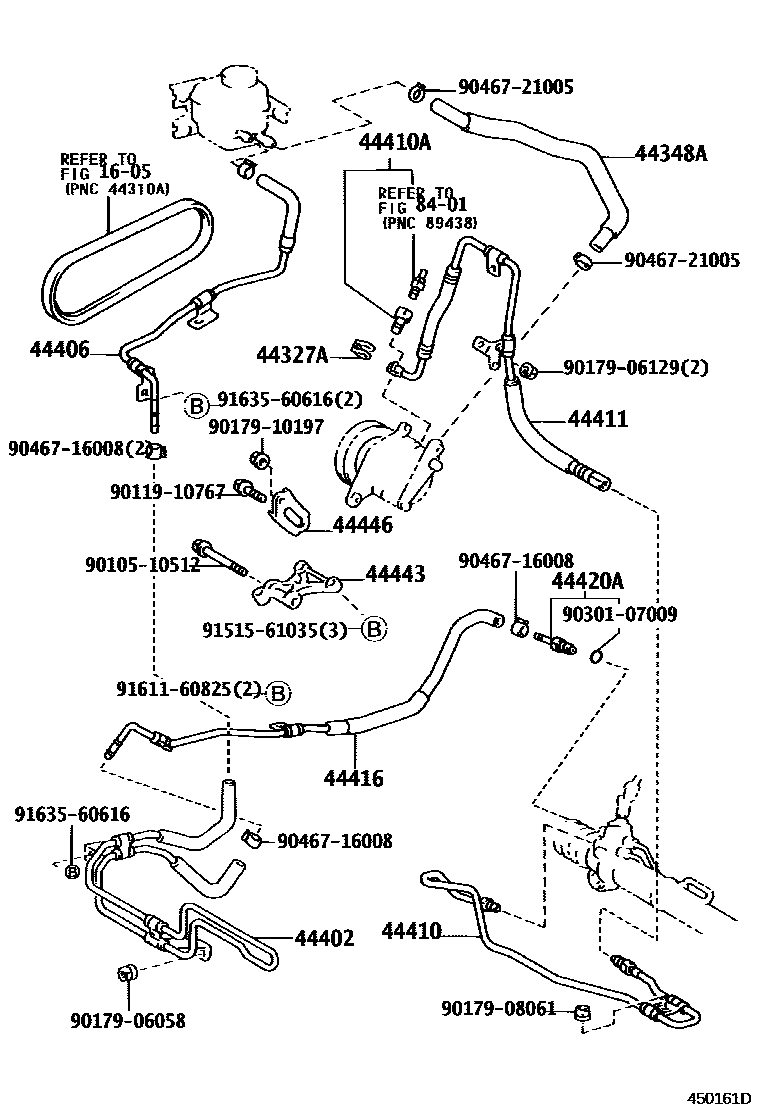

POWER STEERING TUBE

0001 1 0002 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iMCV20199608-199712

main44327-30030iMCV20199712

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-33130iMCV20199608

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-33030iMCV20199608

44406TUBE SUB-ASSY, RETURN

main44406-33050iMCV20199608-199808

main44406-33051iMCV20199808

44410TUBE ASSY, PRESSURE FEED

main44410-33130iMCV20..ARL199608

main44410-33140iMCV20..GCC199810

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iMCV20199608

44411HOSE, PRESSURE FEED

main44411-33060iMCV20..ARL199608

main44411-33070iMCV20..GCC199810

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-33070iMCV20..ARL199608

main44416-33100iMCV20..GCC199810

44420ATUBE ASSY, RETURN

main44420-17010iMCV20..ARL199608

44443BRACKET, PUMP

main44443-33040iMCV20199608-199708

main44443-33041iMCV20199708

44446STRUT, ADJUSTING

main44446-33010iMCV20199608

8401

9010510512

main90105-10512

9011910767

main90119-10767

9017906058

main90179-06058

9017906129

main90179-06129

9017908061

main90179-08061

9017910197

main90179-10197

9030107009

main90301-07009

9046716008

main90467-16008

9046721005

main90467-21005

9151561035

main91515-61035

9161160825

main91611-60825

9163560616

main91635-60616

25 parts on this diagram · 2 diagrams in section
