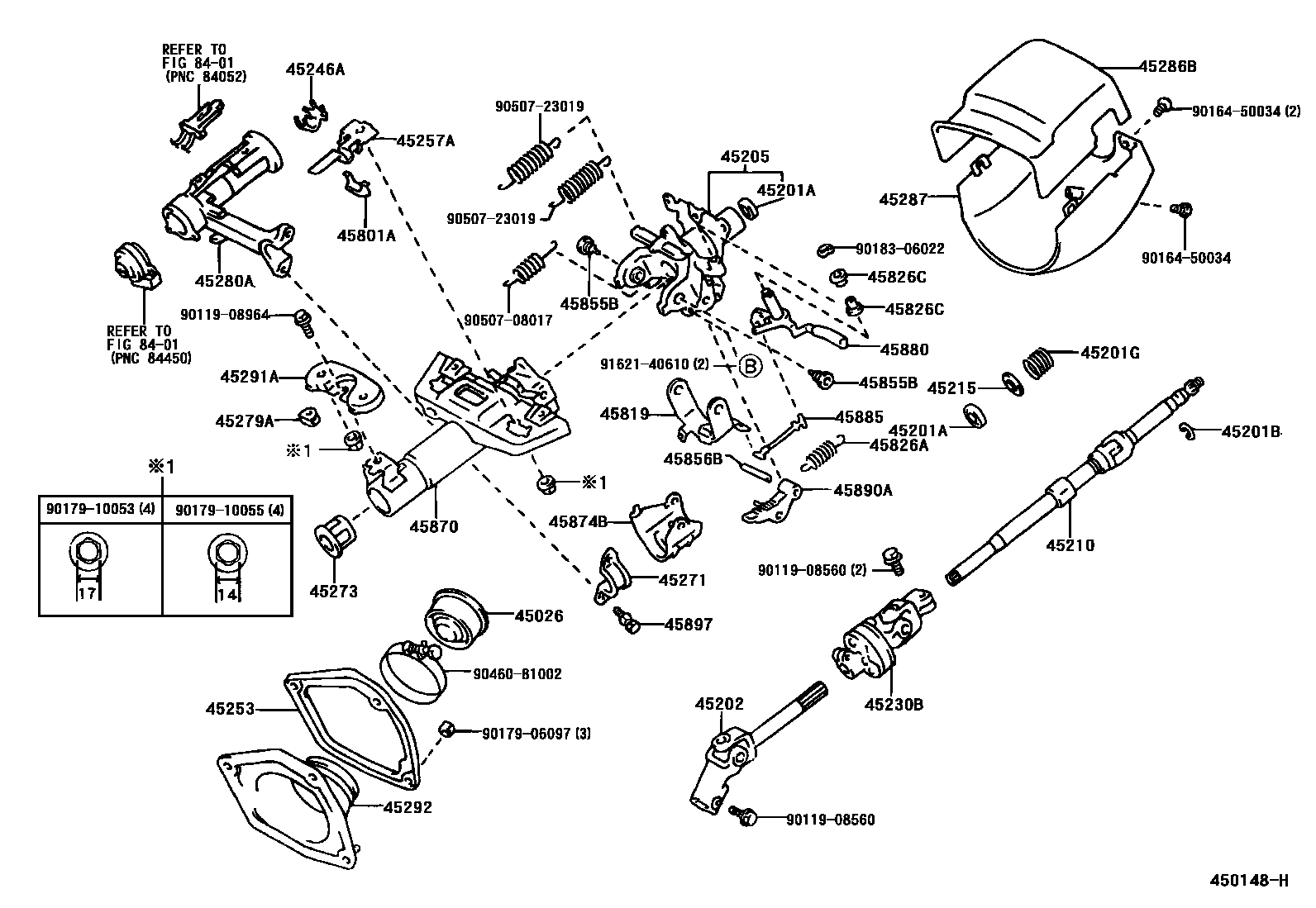

STEERING COLUMN & SHAFT
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45202SHAFT SUB-ASSY, STEERING INTERMEDIATE
45205TUBE SUB-ASSY, STEERING COLUMN
45210SHAFT ASSY, STEERING MAIN
TYPE B:REFER TO ILLUSTRATION
45215COLLAR, MAIN SHAFT BEARING THRUST
45230COUPLING ASSY, FLEXIBLE
45230BJOINT ASSY, STEERING SHAFT UNIVERSAL
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45253COVER, STEERING COLUMN HOLE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
45291ASUPPORT, STEERING COLUMN TUBE
45292SEAL, MAIN SHAFT LOWER DUST
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45819RETAINER, TILT LEVER
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
45826CBUSH(FOR STEERING TILT LEVER)
45855BSHAFT, T1LT STEERING, NO.1
45856BSHAFT, T1LT STEERING, NO.2
WHITE
45870TUBE ASSY, STEERING COLUMN
45874BPROTECTOR, STEERING COLUMN, NO.1
45880LEVER ASSY, STEERING TILT
45885LINK, TILT LEVER
45890APAWL ASSY, TILT STEERING
45897BOLT, STEERING LOCK SET
8401
9011908560
9011908964
9016450034
9017906097
9017910053
9017910055
9018306022
9046081002
9050708017
9050723019
9162140610
45 parts on this diagram · 2 diagrams in section
