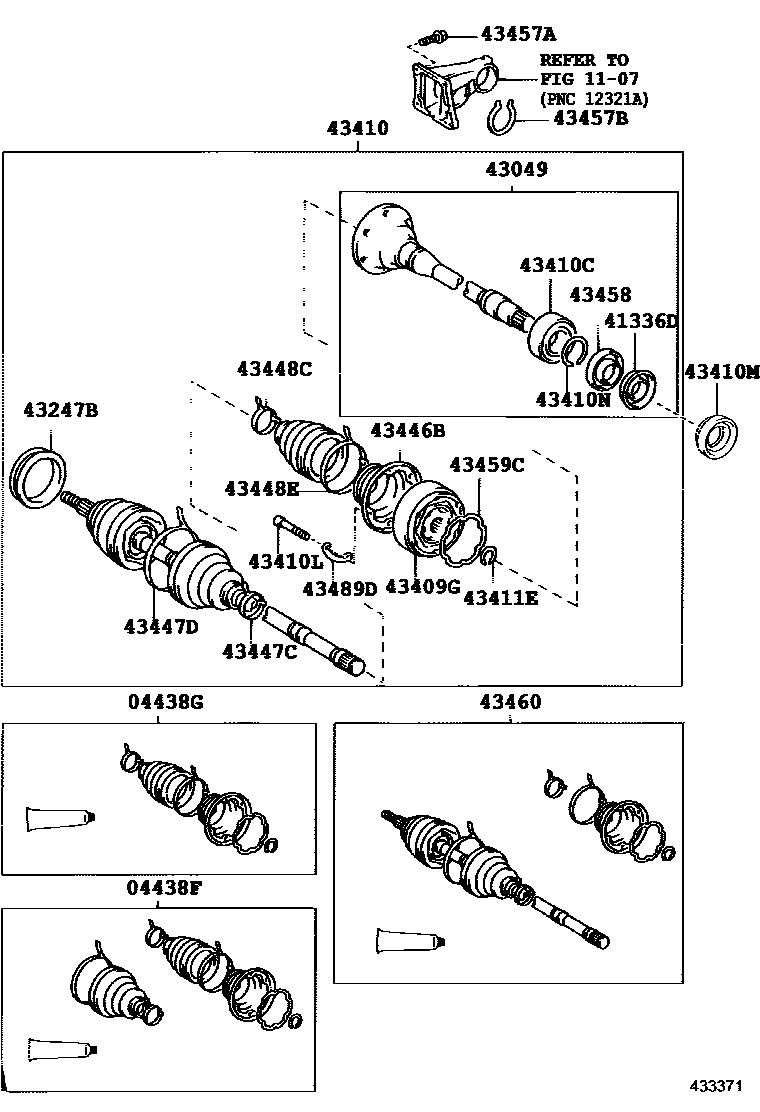

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-33021iMCV20¥10,800199608-199712

sub04438-33022¥10,800

main04438-33090iMCV20¥10,800200105-200107

sub04428-33060¥10,800

main04438-48030iMCV20¥12,400199712-199912

sub04438-48032¥12,400

main04438-48031iMCV20¥12,400199912-200105

sub04428-48090¥12,400

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-33011iMCV20¥6,700199608-199912

sub04438-33012¥8,200

main04438-33012iMCV20¥8,200199912

sub04438-33013¥8,200

1107

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iMCV20¥330199608

43049SHAFT SUB-ASSY, FRONT DRIVE FLANGE

main43049-33020iMCV20¥29,400199608-199908

main43049-33050iMCV20¥30,500199908

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iMCV20¥780199608

43409GJOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, RH

main43409-17010iMCV20¥25,300199608-199908

main43409-28010iMCV20¥25,200199908

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-33070iMCV20¥79,400199608-199712

sub43410-33150¥79,500

main43410-33150iMCV20¥79,500199712-199908

sub43410-33200¥79,500

main43410-33200iMCV20¥79,500199908-200008

sub43410-33201¥79,500

sub90178-22001¥310

main43410-33201iMCV20¥79,500200008-200105

sub43410-33202¥79,200

main43410-33202iMCV20¥79,200200105-200107

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-41002iMCV20¥2,750199911

sub90363-41003¥2,750

main90369-41001iMCV20¥3,190199608-199911

sub90363-41002¥2,750

43410LBOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT RH)

main90110-10007iMCV20¥240199608-199908

sub90110-10015¥230

main90110-10015iMCV20¥230199908

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40010iMCV20¥400199608-200012

sub90311-40028¥400

main90311-40028iMCV20¥400200012

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-38015iMCV20¥100199608

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-26028iMCV20¥110199608

43446BCOVER, FRONT AXLE INBOARD JOINT, RH

main43446-17010iMCV20¥1,020199608-199912

main43446-28010iMCV20¥1,210199912

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16030iMCV20¥660199608-199712

ID=35.75

main42345-48030iMCV20¥410199712

ID=35.0

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16070iMCV20¥330199608-199712

main42345-44010iMCV20¥550200103-200105

ID=98.7

sub42345-44020¥570

main42345-44020iMCV20¥570200105-200107

main42345-48040iMCV20¥600199712-200105

ID=101.2

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-14010iMCV20¥700199608

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16100iMCV20¥260199608-199908

main90949-01340iMCV20¥280199908

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iMCV20¥200199608

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iMCV20¥160199608

43458COVER, FRONT DRIVE SHAFT DUST

main43458-12010iMCV20¥910199608

43459CGASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH

main43459-17010iMCV20¥370199608

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-39206iMCV20¥41,000199608-199712

sub43470-39207¥41,000

main43470-39207iMCV20¥41,000199712-199912

sub43470-39355¥46,000

sub90178-22001¥310

main43470-39209iMCV20¥44,900199912-200008

sub43470-39365¥44,900

sub90178-22001¥310

main43470-39365iMCV20¥44,900200008-200105

sub43470-39366¥44,900

main43470-39366iMCV20¥44,900200105-200107

sub43470-39367¥44,900

43489DWASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH

main43489-17010iMCV20¥320199608

24 parts on this diagram · 2 diagrams in section
