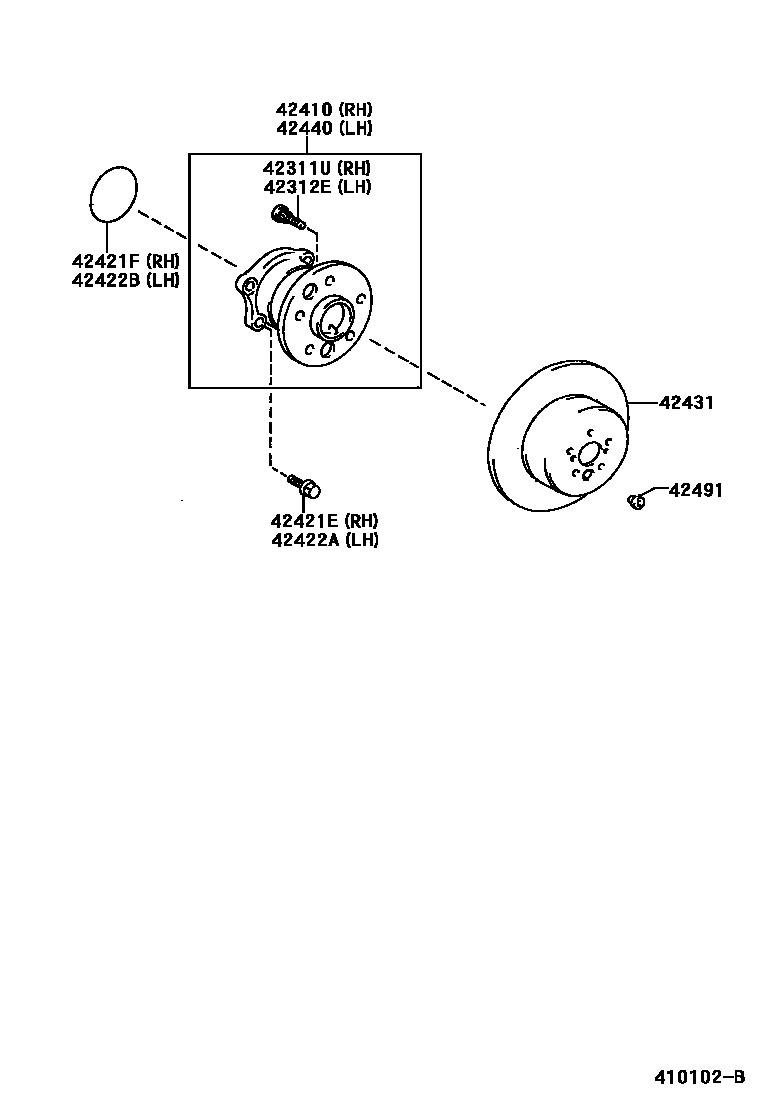

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047iMCV20199608

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047iMCV20199608

42410HUB & BEARING ASSY, REAR AXLE, RH

main42450-33010iMCV20199608-199808

main42450-33020iMCV20199808

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10124iMCV20199608

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-63003iMCV20199608

sub90301-63006

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10124iMCV20199608

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-63003iMCV20199608

sub90301-63006

42431DISC, REAR

main42431-33010iMCV20199608-199908

sub42431-33060

main42431-33030iMCV20..GCC199908

42440HUB & BEARING ASSY, REAR AXLE, LH

main42450-33010iMCV20199608-199808

main42450-33020iMCV20199808

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iMCV20199608

10 parts on this diagram · 1 diagram in section
