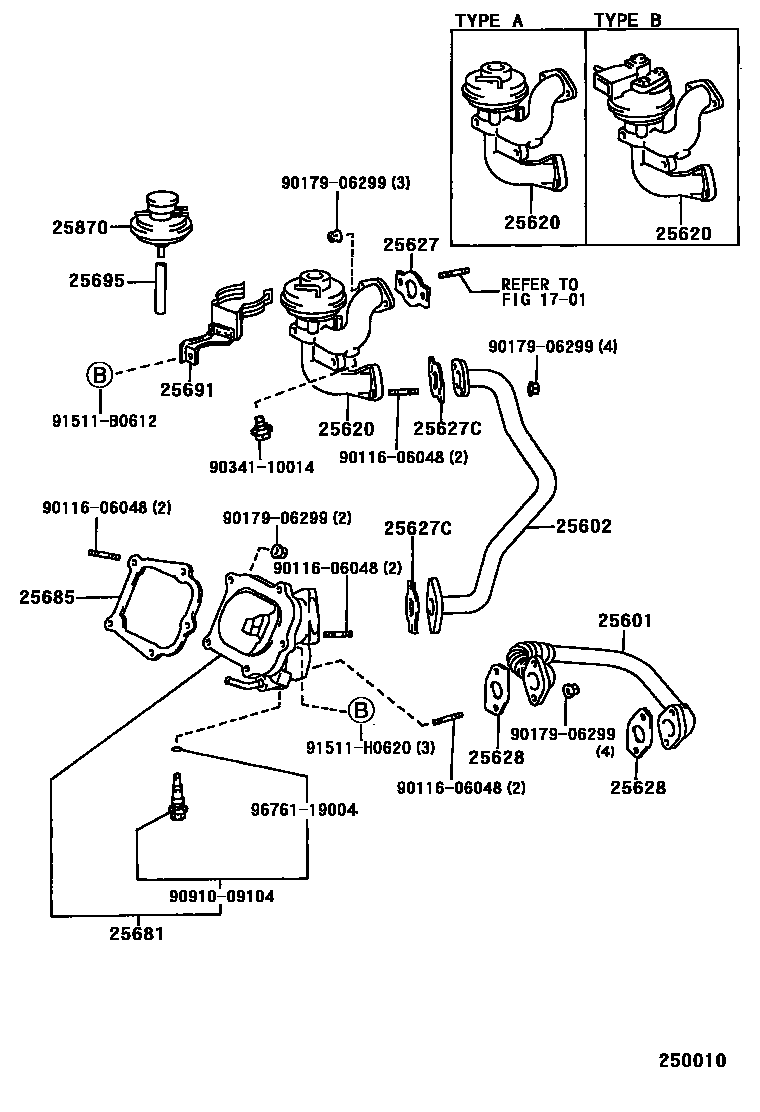

EXHAUST GAS RECIRCULATION SYSTEM
1701
25601PIPE SUB-ASSY, EGR, NO.1
25602PIPE SUB-ASSY, EGR, NO.2
25620VALVE ASSY, EGR
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
25627GASKET, EGR VALVE
25627CGASKET(FOR EGR PIPE NO.2)
25628GASKET, EGR INLET
25681COOLER, EGR, NO.1
25685GASKET, EGR COOLER, NO.1
25691BRACKET, EGR VACUUM MODULATOR
25695HOSE, EGR VACUUM MODULATOR
25870VALVE ASSY, EGR VACUUM MODULATOR
9011606048
main90116-06048
9017906299
main90179-06299
9034110014
main90341-10014
9091009104
main90910-09104
91511B0612
main91511-B0612
91511H0620
main91511-H0620
9676119004
main96761-19004
19 parts on this diagram · 1 diagram in section
