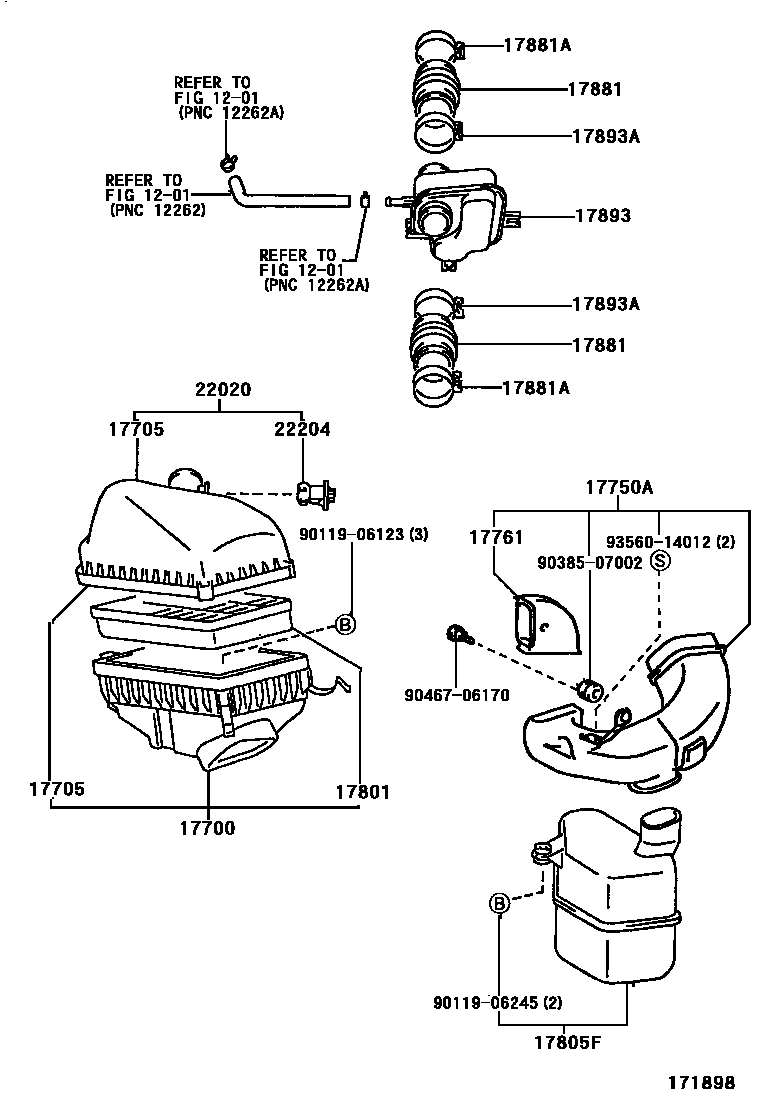

AIR CLEANER

0001 1 0002 1

1201

17700CLEANER ASSY, AIR

main17700-20060i1MZFE..MCV20199608-199907

main17700-20061i1MZFE..MCV20199907

17705CAP SUB-ASSY, AIR CLEANER

main17705-20050i1MZFE..MCV20199608-199907

main17705-20051i1MZFE..MCV20199907

17750AINLET ASSY, AIR CLEANER

main17750-20040i1MZFE..MCV20199608-199708

main17750-20070i1MZFE..MCV20..ARL199708

main17750-74030i1MZFE..MCV20..GCC199810-200103

main17750-74031i1MZFE..MCV20..GCC200103

17761CAP, AIR CLEANER INLET

main17761-74010i1MZFE..MCV20..GCC199810

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-03010i1MZFE..MCV20199608

(L)

main17801-74060i1MZFE..MCV20199608

(J)

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-20020i1MZFE..MCV20199608

17881HOSE, AIR CLEANER, NO.1

main17881-20090×2i1MZFE..MCV20199608

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10830×2i1MZFE..MCV20199608

17893RESONATOR, INTAKE AIR

main17893-20030i1MZFE..MCV20199608-199709

sub12262-20020

sub90467-19022

main17893-20031i1MZFE..MCV20199709

17893ACLAMP, HOSE

main96111-10830×2i1MZFE..MCV20199608

22020METER ASSY, AIR FLOW W/AIR CLEANER

main22020-20050i1MZFE..MCV20199608-199907

main22020-20051i1MZFE..MCV20199907

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-20010i1MZFE..MCV20199608

9011906123

main90119-06123

9011906245

main90119-06245

9038507002

main90385-07002

9046706170

main90467-06170

9356014012

main93560-14012

18 parts on this diagram · 2 diagrams in section
