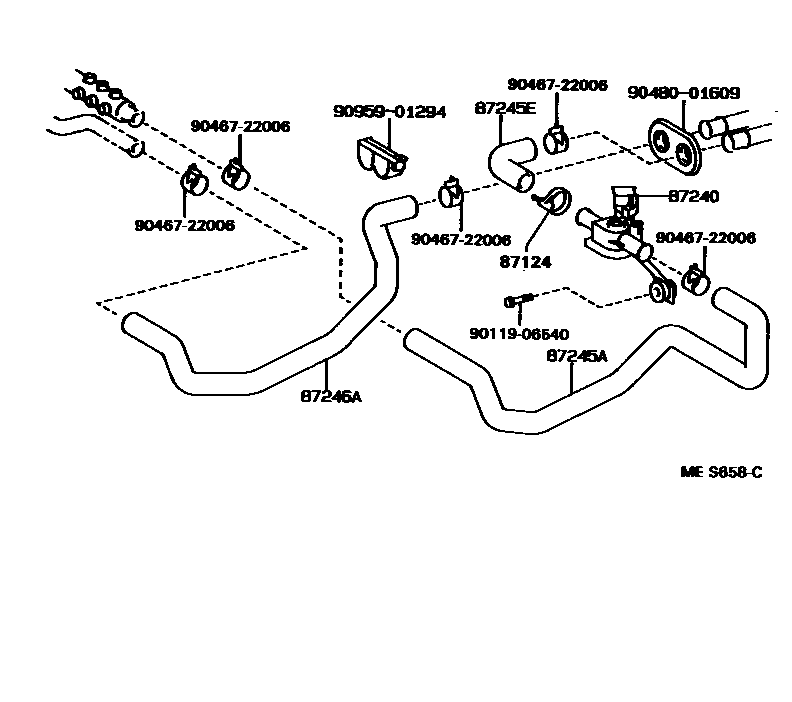

HEATING & AIR CONDITIONING - WATER PIPING

87124CLAMP, HEATER

main87124-28030iVCV10199203-199511

main90467-22004iVCV10199603-199608

sub90467-21010

87240VALVE ASSY, HEATER WATER

main87240-33020iVCV10199203-199608

87245AHOSE, HEATER WATER, INLET A

main87245-33010iVCV10199203-199608

87245EHOSE, HEATER WATER, INLET E

main87245-33100iVCV10199203-199608

87246AHOSE, HEATER WATER, OUTLET A

main87245-33020iVCV10199203-199608

9011906540

main90119-06540

9046722006

main90467-22006

9048001609

main90480-01609

9095901294

main90959-01294

9 parts on this diagram · 1 diagram in section
