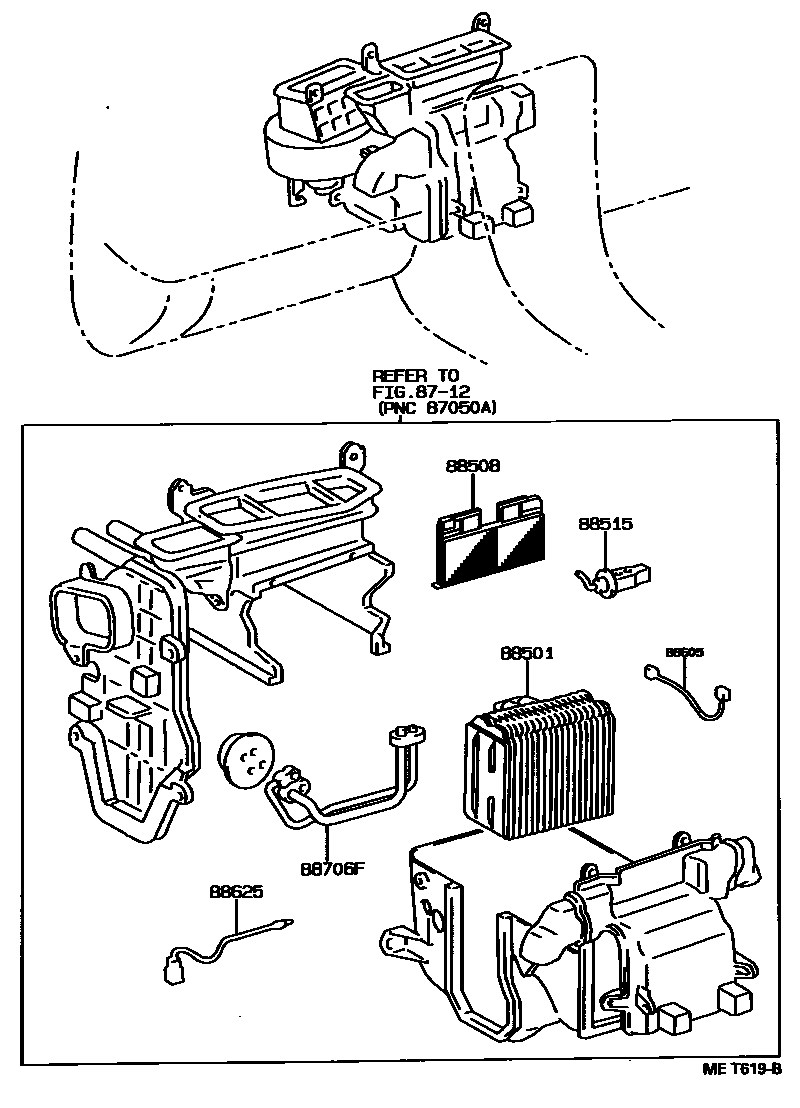

HEATING & AIR CONDITIONING - COOLER UNIT

8712

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-33010iVCV10199203-199308

main88501-33040iVCV10199308-199408

sub88501-33070

main88501-33070iVCV10199408-199608

sub88501-33080

88508FILTER SUB-ASSY, CLEAN AIR

main88880-33010iVCV10199408-199608

sub88880-33060

main88880-33030iVCV10199210-199408

sub88880-33060

88515VALVE, COOLER EXPANSION

main88515-14062iVCV10199203-199308

sub88515-33010

main88515-20100iVCV10199308-199608

sub88515-22240

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-33010iVCV10199203-199608

88625THERMISTOR, COOLER, NO.1

main88625-33060iVCV10199203-199608

88706FTUBE SUB-ASSY, LIQUID, F

main88706-33030iVCV10199203-199308

main88716-33150iVCV10199308-199608

7 parts on this diagram · 1 diagram in section
