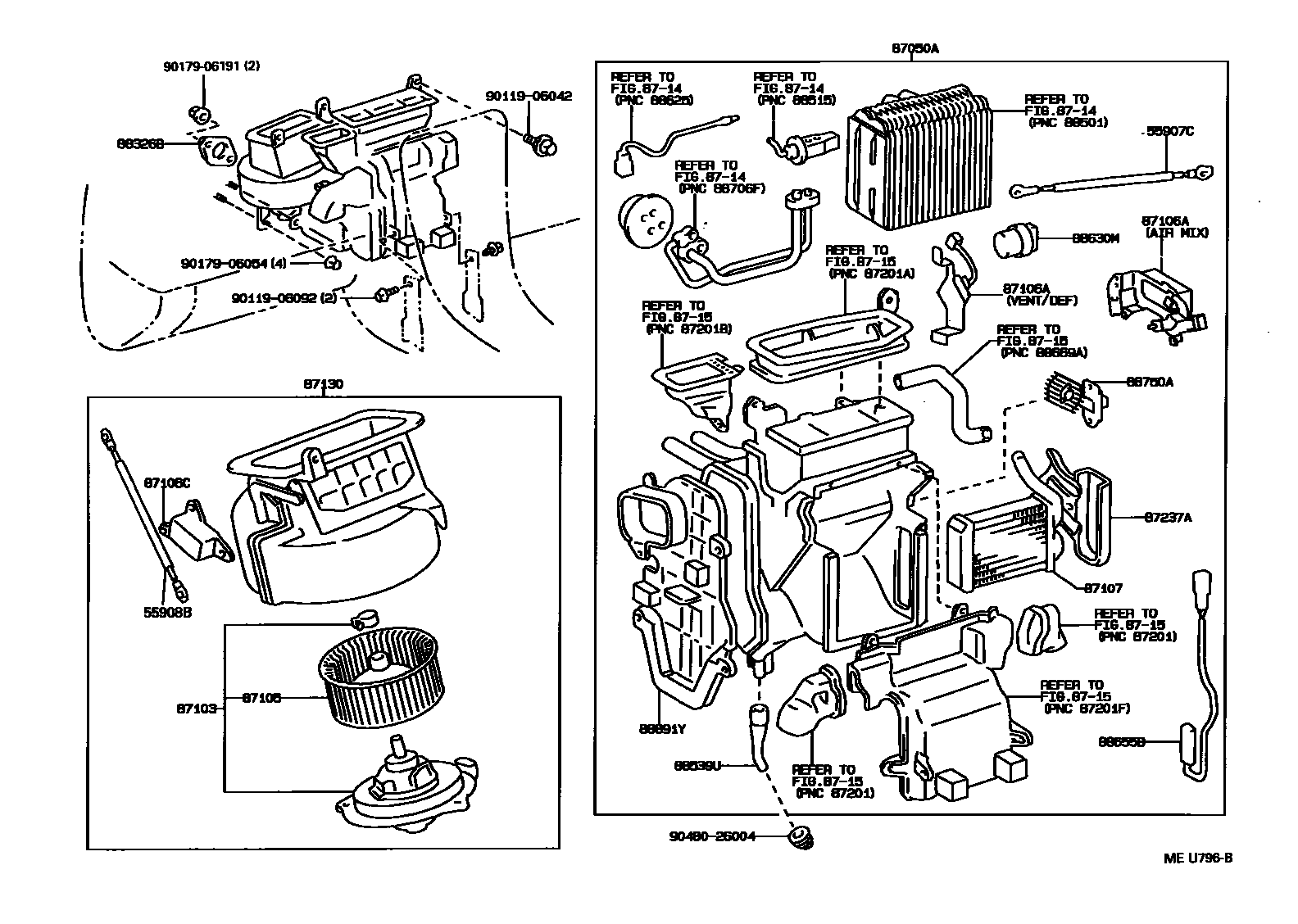

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

55907CCABLE SUB-ASSY, WATER VALVE CONTROL

main87286-33020iVCV10199203-199608

55908BCABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main87286-33030iVCV10199203-199608

87050ARADIATOR ASSY, AIR CONDITIONER

main87050-33160iVCV10199203-199308

main87050-33220iVCV10199308-199408

sub87050-33230

main87050-33230iVCV10199408-199608

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-22110iVCV10199506-199608

main87103-33010iVCV10199203-199506

sub87103-22110

87105FAN SUB-ASSY, HEATER BLOWER

main87105-33010iVCV10199203-199506

sub87103-22100

sub87103-22110

87106ASERVO SUB-ASSY, DAMPER

main87106-33010iVCV10199203-199608

VENT/DEF

main87106-33100iVCV10199203-199608

AIR MIX

87106CSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-33090iVCV10199203-199608

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-33010iVCV10199203-199608

87130BLOWER ASSY, HEATER, FRONT

main87130-33060iVCV10199203-199608

8714

8715

87237ACOVER, HEATER PIPING

main87237-33010iVCV10199203-199608

88326BPLATE, COVER

main88326-33010iVCV10199203-199608

88539UHOSE, COOLER DRAIN

main88539-33010iVCV10199203-199406

main88539-33020iVCV10199408-199608

88630MRELAY ASSY, COOLER

main88630-28040iVCV10199203-199608

88655BSWITCH, WATER TEMPERATURE

main88790-33010iVCV10199203-199608

88750ATRANSISTOR ASSY, BLOWER RESISTOR

main88750-33010iVCV10199203-199608

88891YCOVER, COOLER,NO.1

main88891-33010iVCV10199203-199602

main88891-33011iVCV10199602-199608

9011906042

main90119-06042

9011906092

main90119-06092

9017906054

main90179-06054

9017906191

main90179-06191

9048026004

main90480-26004

23 parts on this diagram · 1 diagram in section
