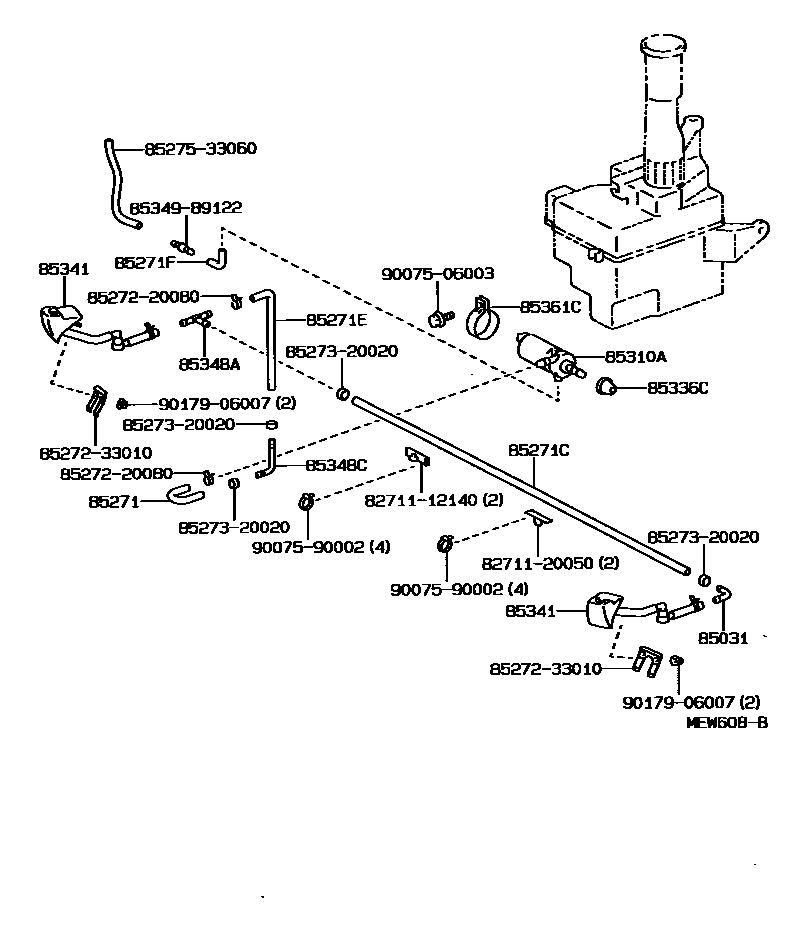

HEADLAMP CLEANER

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85379-22080iVCV10199308-199608

85271HOSE, HEADLAMP CLEANER, NO.1

main85271-14100iVCV10199308-199608

85271CHOSE, HEADLAMP CLEANER, NO.4

main85275-60080iVCV10199308-199608

L=1350

sub85375-95403

85271EHOSE, HEADLAMP CLEANER, NO.6

main85375-89133iVCV10199308-199608

sub85275-44050

85271FHOSE, HEADLAMP CLEANER, NO.7

main85336-12230iVCV10199308-199608

L=15

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85280-33020iVCV10199308-199608

85336CPACKING, HEADLAMP CLEANER MOTOR

main85336-10010iVCV10199308-199608

85341NOZZLE, HEADLAMP CLEANER WASHER

main85044-33030×2iVCV10199308-199608

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85352-12010iVCV10199308-199608

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

main85279-14130iVCV10199308-199408

main85279-30010iVCV10199408-199608

85361CBRACKET, WASHER

main85361-33020iVCV10199308-199608

8271112140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12140

8271120050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20050

8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20080

8527233010CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-33010

8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH

main85273-20020

8527533060WIRING SUB-ASSY, HEADLAMP CLEANER

main85275-33060

8534989122JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122

9007506003

main90075-06003

9007590002

main90075-90002

9017906007

main90179-06007

21 parts on this diagram · 1 diagram in section
