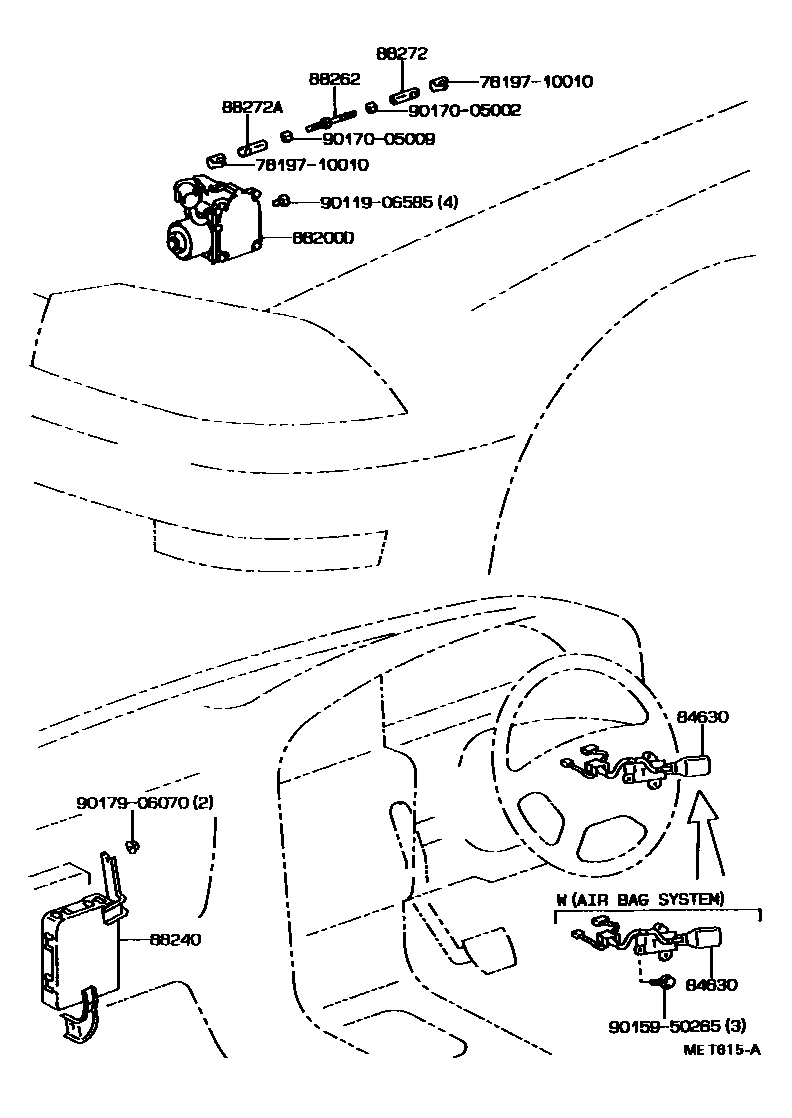

CRUISE CONTROL (AUTO DRIVE)

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-33010iVCV10199203-199308

W(*80)

main84630-33010iVCV10199308-199608

main84630-33050iVCV10199203-199308

sub84630-33051

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-33010iVCV10199203-199608

88240COMPUTER ASSY, CRUISE CONTROL

main88240-33010iVCV10199203-199608

88262ROD, SPEED CONTROL

main88206-33010iVCV10199203-199608

88272END, SPEED CONTROL ROD

main88272-33010iVCV10199203-199608

88272AEND, SPEED CONTROL ROD

main88272-33020iVCV10199203-199608

7819710010CLIP, ACCELERATOR JOINT BALL

main78197-10010

9011906585

main90119-06585

9015950265

main90159-50265

9017005002

main90170-05002

9017005009

main90170-05009

9017906070

main90179-06070

12 parts on this diagram · 1 diagram in section
