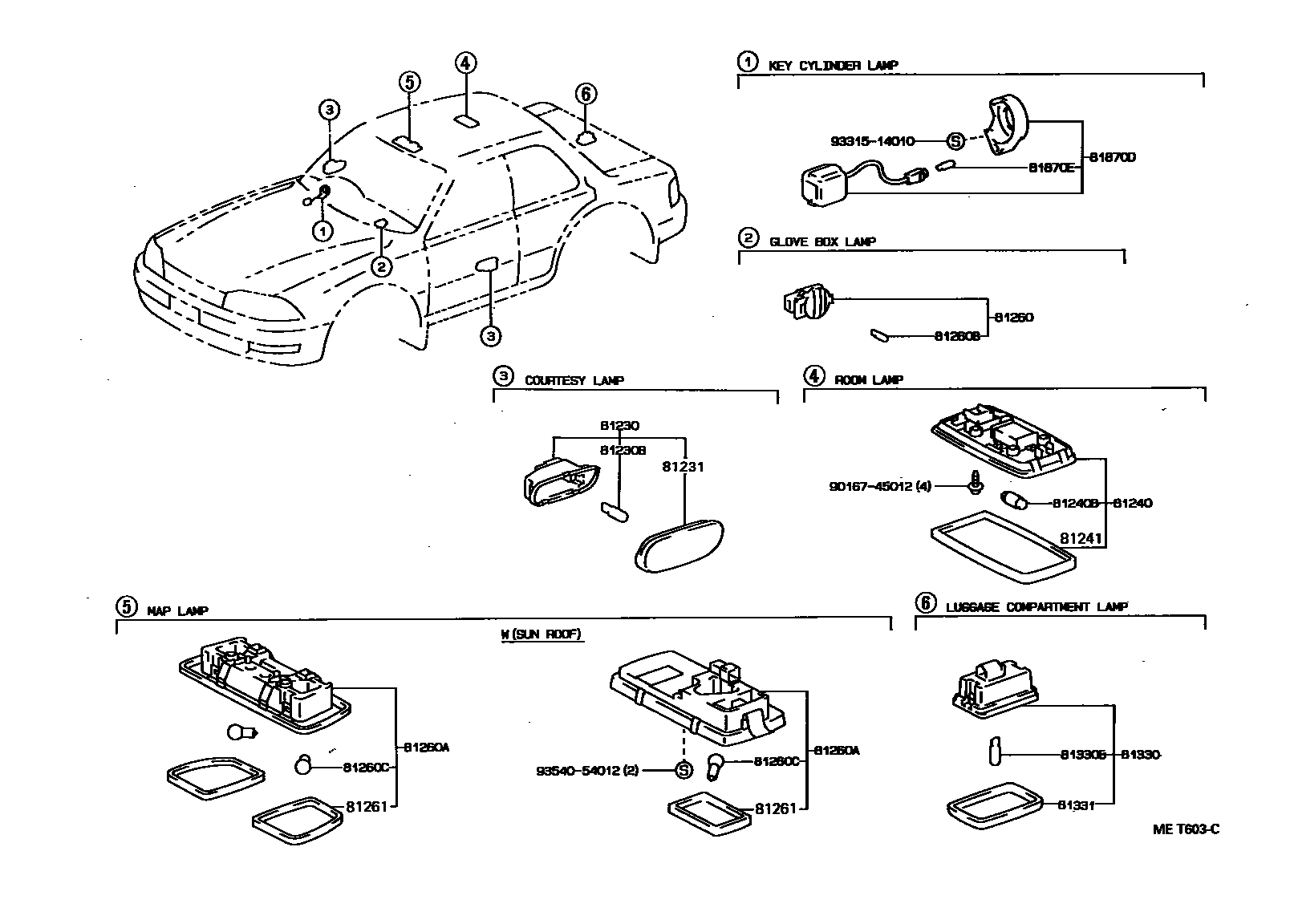

INTERIOR LAMP
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81231LENS, COURTESY LAMP
RH
LH
81240LAMP ASSY, ROOM, NO.1
81240BBULB, ROOM LAMP, NO.1
12V 8W
81241LENS, ROOM LAMP, NO.1
81260ALAMP ASSY, MAP
W(MOON ROOF),IVORY,TRIM0#,STANLEY
W(MOON ROOF),MEDIUM GRAY,TRIM2#,STANLEY
W(MOON ROOF),LT.OAK,TRIM4#,STANLEY
W(MOON ROOF),LIGHT TAUPE,TRIM9#,STANLEY
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 10W,W(MOON ROOF)
12V 8W
81261LENS AND COVER, MAP LAMP
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81331LENS, LUGGAGE COMPARTMENT LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
14V 1.4W
9016745012
main90167-45012
9331514010
main93315-14010
9354054012
main93540-54012
19 parts on this diagram · 1 diagram in section
