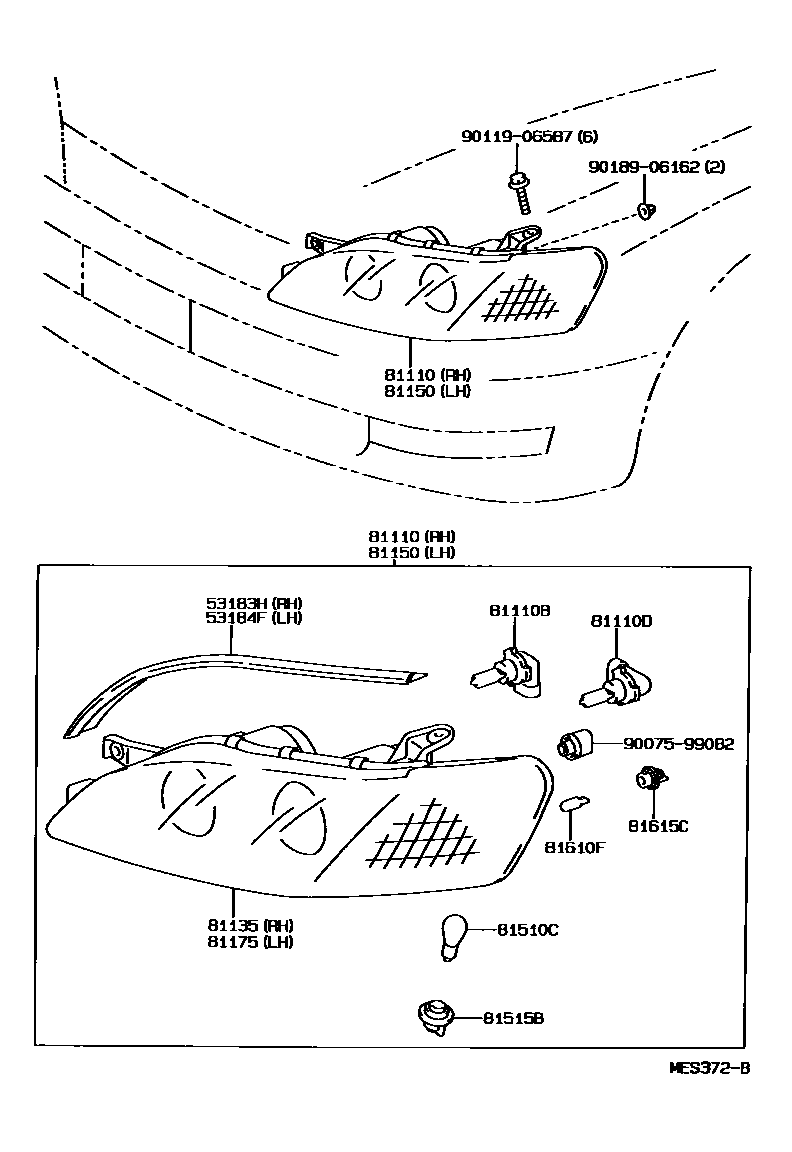

HEADLAMP

53183HSEAL, HEADLAMP COVER, RH

main53183-33020iVCV10199203-199408

main53183-33030iVCV10199408-199608

53184FSEAL, HEADLAMP COVER, LH

main53184-33020iVCV10199203-199408

main53184-33030iVCV10199408-199608

81110HEADLAMP ASSY, RH

main81110-33090iVCV10199203-199408

sub81110-33092

sub90109-06203

main81110-33150iVCV10199408-199608

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iVCV10199203-199608

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13047iVCV10199203-199608

12V 51W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-33090iVCV10199203-199408

sub81130-33092

sub90109-06203

main81130-33150iVCV10199408-199608

81150HEADLAMP ASSY, LH

main81150-33090iVCV10199203-199408

sub81150-33092

sub90109-06203

main81150-33150iVCV10199408-199608

81175UNIT ASSY, HEADLAMP, LH

main81170-33090iVCV10199203-199408

sub81170-33092

sub90109-06203

main81170-33150iVCV10199408-199608

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210iVCV10199203-199608

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-99071iVCV10199203-199608

81610FBULB(FOR CLEARANCE LAMP)

main90981-12010iVCV10199203-199608

12V 5W

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-99007iVCV10199203-199608

9007599082

main90075-99082

9011906587

main90119-06587

9018906162

main90189-06162

15 parts on this diagram · 1 diagram in section
