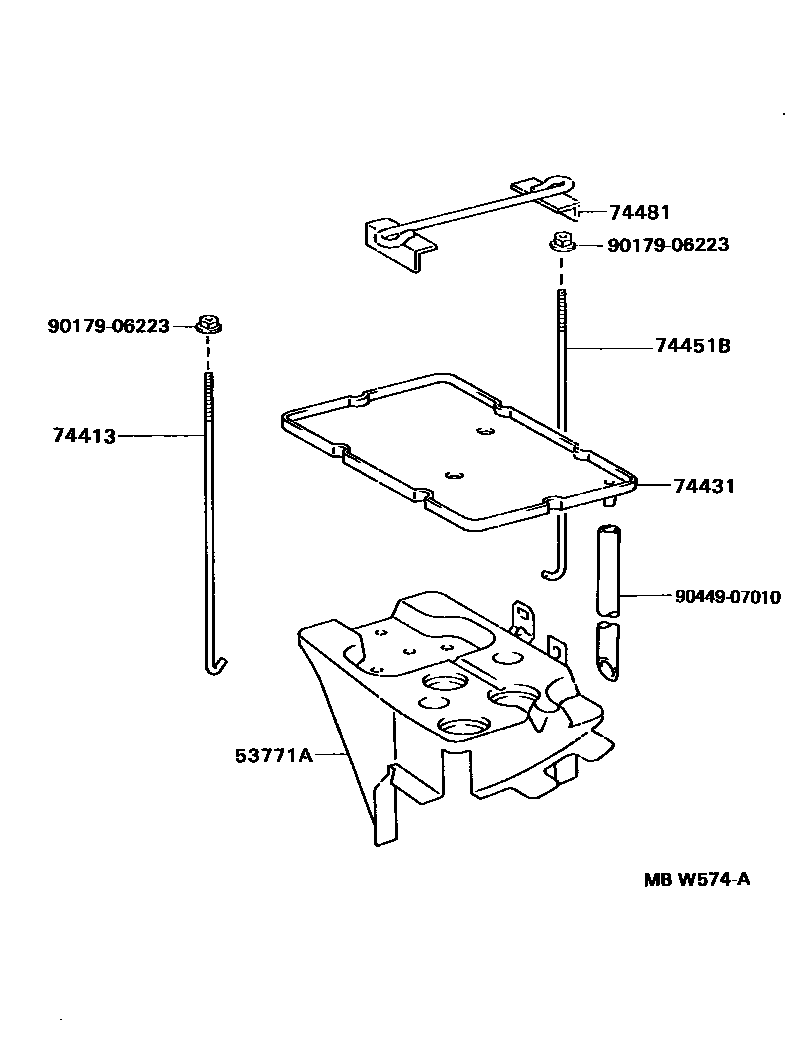

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53704-33010iVCV10199203-199608

sub53704-33011

74413BOLT, BATTERY CLAMP

main74451-33010iVCV10199203-199608

74431TRAY, BATTERY

main74431-33010iVCV10199203-199608

sub74431-33011

74451BBOLT, BATTERY CLAMP

main74452-33010iVCV10199203-199608

74481CLAMP, BATTERY HOLD DOWN

main74404-33010iVCV10199203-199211

sub74404-33030

main74404-33030iVCV10199211-199608

9017906223

main90179-06223

9044907010

main90449-07010

7 parts on this diagram · 1 diagram in section
