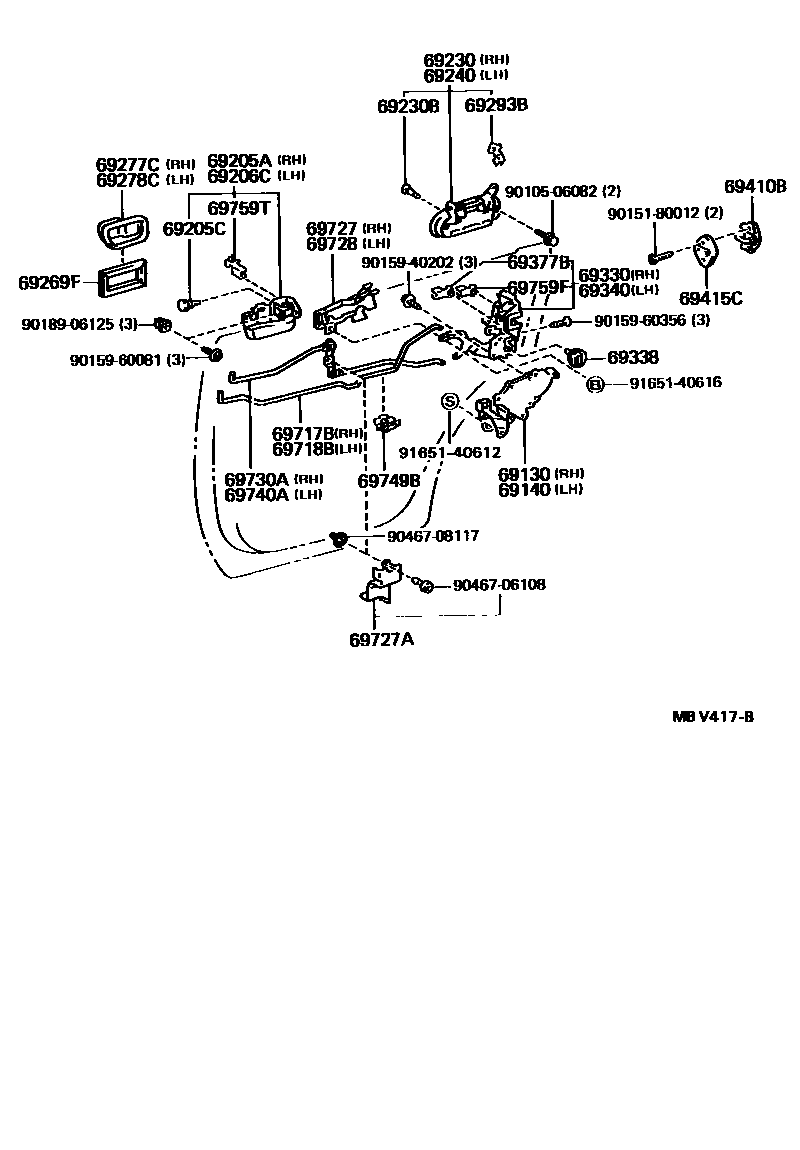

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69269FSEAL, REAR DOOR INSIDE HANDLE
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
69293BSNAP, REAR DOOR OUTSIDE HANDLE
69330LOCK ASSY, REAR DOOR, RH
69338KNOB, CHILD PROTECTOR LOCK LEVER
69340LOCK ASSY, REAR DOOR, LH
69377BSNAP, REAR DOOR LOCK CONTROL ROD
LH
RH
RH
LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH
69727APROTECTOR, REAR DOOR INSIDE LOCKING LINK
RH
LH
69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
69730ALINK ASSY, REAR DOOR LOCK CONTROL, RH
69740ALINK ASSY, REAR DOOR LOCK CONTROL, LH
69749BCLAMP, REAR DOOR LOCK LINK
69759FSNAP, REAR DOOR LOCK CONTROL LINK
LH
RH
69759TSNAP, REAR DOOR INSIDE HANDLE
LH
RH
9010506082
main90105-06082
9015180012
main90151-80012
9015940202
main90159-40202
9015960081
main90159-60081
9015960356
main90159-60356
9018906125
main90189-06125
9046706108
main90467-06108
9046708117
main90467-08117
9165140612
main91651-40612
9165140616
main91651-40616
38 parts on this diagram · 1 diagram in section
